- Expedition TUV 1300 (Europe) , 2007
05- Drive System

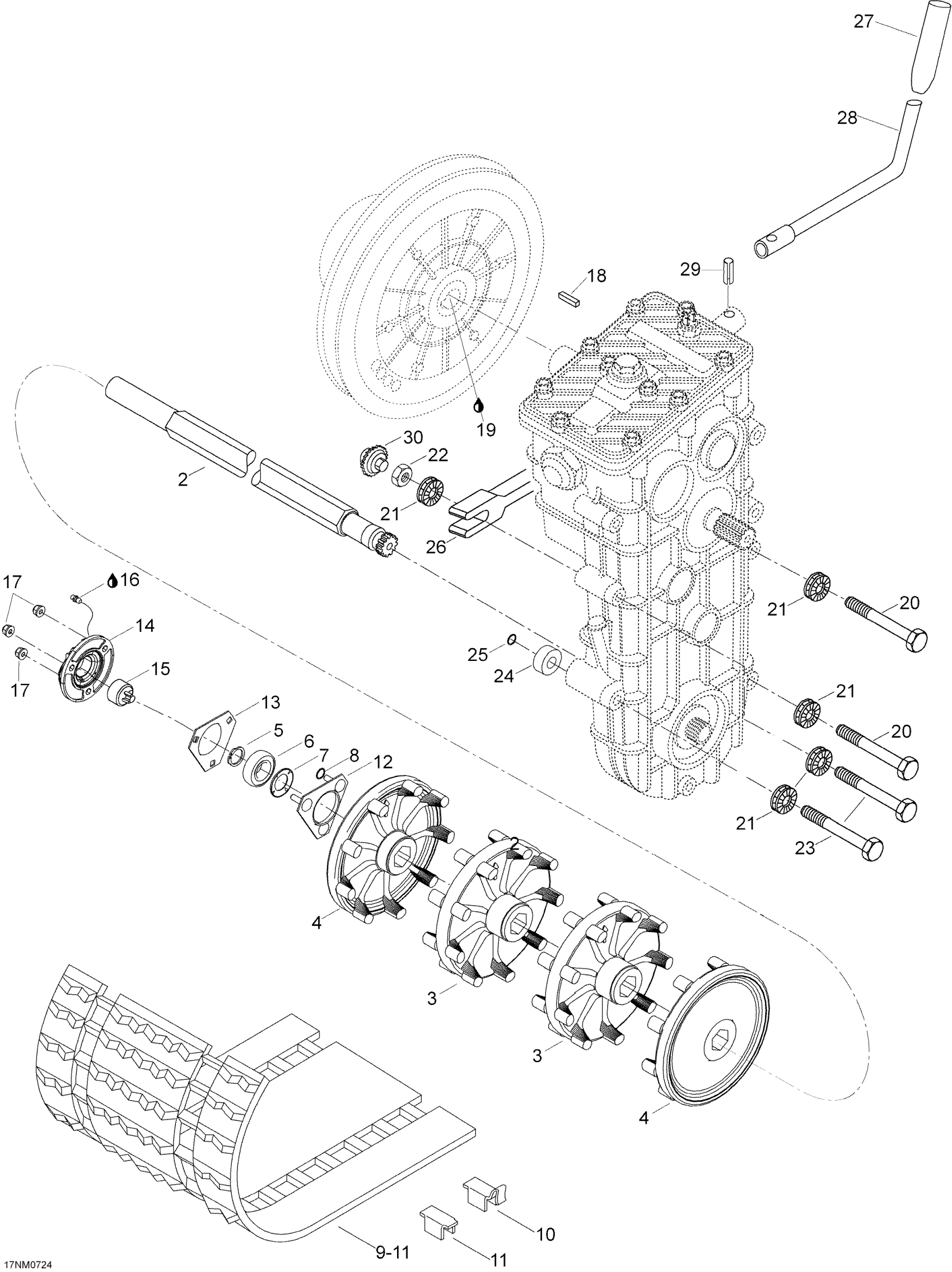

Ski-Doo Expedition TUV 1300 (Europe) , 2007 05- Drive System Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605249455
Unavailable
3
SPROCKET - Call your local BRP dealership
414931800
Unavailable
4
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
10
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
11
CLEAT - Call your local BRP dealership
M5318322
Unavailable
12
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
13
FLANGE - Call your local BRP dealership
501025000
Unavailable
15
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
16
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
18
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
21
Lock Washer
M20072
Unavailable
23
Hex. Screw M8 X 110
M40291
Unavailable
24
SPACER - Call your local BRP dealership
605450155
Unavailable
25
O-RING - Call your local BRP dealership
506151140
Unavailable
26
CONNECTING BAR - Call your local BRP dealership
605351366
Unavailable
28
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
29
Pin Spring
M41008
Unavailable
30
TOOLS - Call your local BRP dealership
605454017
Unavailable
