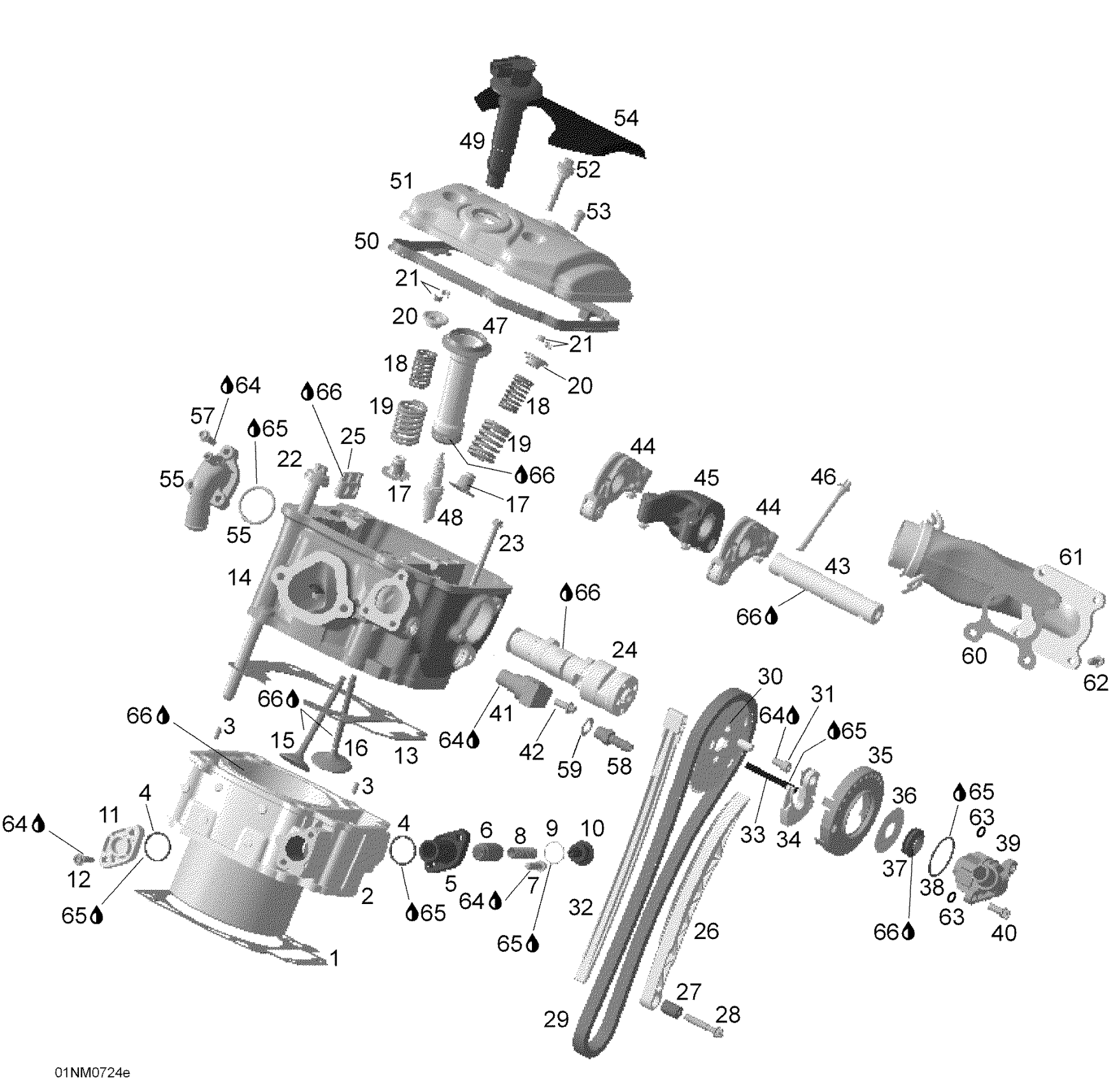

Ski-Doo Expedition TUV 1300 (Europe) , 2007 01- Cylinder and Cylinder Head, Rear Side Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER WITH SLEEVE - Call your local BRP dealership

420623210

Unavailable

3

Drive Pin 5 X 10

420929650

$1.68

4

O-Ring

420430373

$3.17

5

Chain Tensioner Housing

420236510

$11.63

6

Chain Tensioner Plunger

420236521

$14.83

7

Torx Flange Screw M6 X 25

420440234

$3.06

8

Spring

420238120

$7.41

9

O-Ring

420250890

$3.06

10

Plug Screw

420641150

$7.41

11

CONNECTION COVER - Call your local BRP dealership

420960810

Unavailable

12

Torx Flange Screw M6 X 25

420440234

$3.06

13

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

14

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

15

Exhaust Valve 31 mm

420254027

$88.99

16

Intake Valve 38MM

420253163

$41.49

17

Valve Steam Seal

420630202

$7.90

18

Valve Spring Inside

420838280

$12.72

19

Valve Spring

420238180

$15.89

20

Valve Spring Retainer

420254283

$8.57

21

Valve Cotter

420253645

$7.41

22

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

23

Torx Flange Screw M6 X 105

420440612

$7.41

24

Camshaft, Rear

420837456

Unavailable

25

Camshaft Guide

420851694

$31.99

26

Chain Tension Guide

420236541

$15.89

27

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

28

Torx Flange Screw M6 X 35

420440274

$1.01

29

Camshaft Chain

420297957

$100.49

30

Timing Gear, 38 Teeth

420254309

$69.99

31

Allen Screw M6 X 12

420840032

$4.44

32

Chain Guide

420236501

$14.28

33

DEKO SHAFT - Call your local BRP dealership

420220791

Unavailable

34

Centrifugal Weight Ass’Y

420231064

Unavailable

35

Cover

420660037

$23.49

36

Thrust Washer

420627494

$7.41

37

V-Ring 20S FPM Blow By Valve

420630125

$11.63

38

O-Ring

420950870

$5.39

39

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

40

Torx Flange Screw M6 X 16

420440162

$3.17

41

Camshaft Position Sensor Ass'y

420664046

$88.99

42

Torx Flange Screw M6 X 16

420440162

$3.17

43

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

44

Rocker Arm, Exhaust

420254329

$137.49

45

Rocker Arm, Inner

420254316

$179.99

46

Torx Screw M8 X 72

420641080

$5.29

47

Spark Plug Pipe

420851754

$27.49

48

Spark Plug, NGK DCP-R8E

715900637

$6.35

49

Ignition Coil Kit This part replaces 420664020.

296000307

$104.99

50

Sealing Ring

420630071

$19.99

51

Valve Cover

420610185

Unavailable

52

Allen Screw M6 x 30,5

420440561

$4.44

53

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

54

Valve Cover

420660201

Unavailable

55

O-Ring

420950890

$4.44

56

Connecting Cover

420811700

Unavailable

57

Torx Flange Screw M6 X 25

420440234

$3.06

58

Hose Nipple

420440960

Unavailable

59

Copper Washer

420250640

$0.98

60

GASKET - Call your local BRP dealership

420950680

Unavailable

61

EXHAUST MANIFOLD ASS'Y - Call your local BRP dealership

420973782

Unavailable

62

Torx Flange Screw M6 X 16

420440162

$3.17

63

Seal Washer

420230415

$1.79

64

Loctite 243, 10 ml

293800060

$21.49

65

Grease, Super Lube

293550030

$28.99

66

Synth Oil 4T 12x1

293600054

Unavailable
