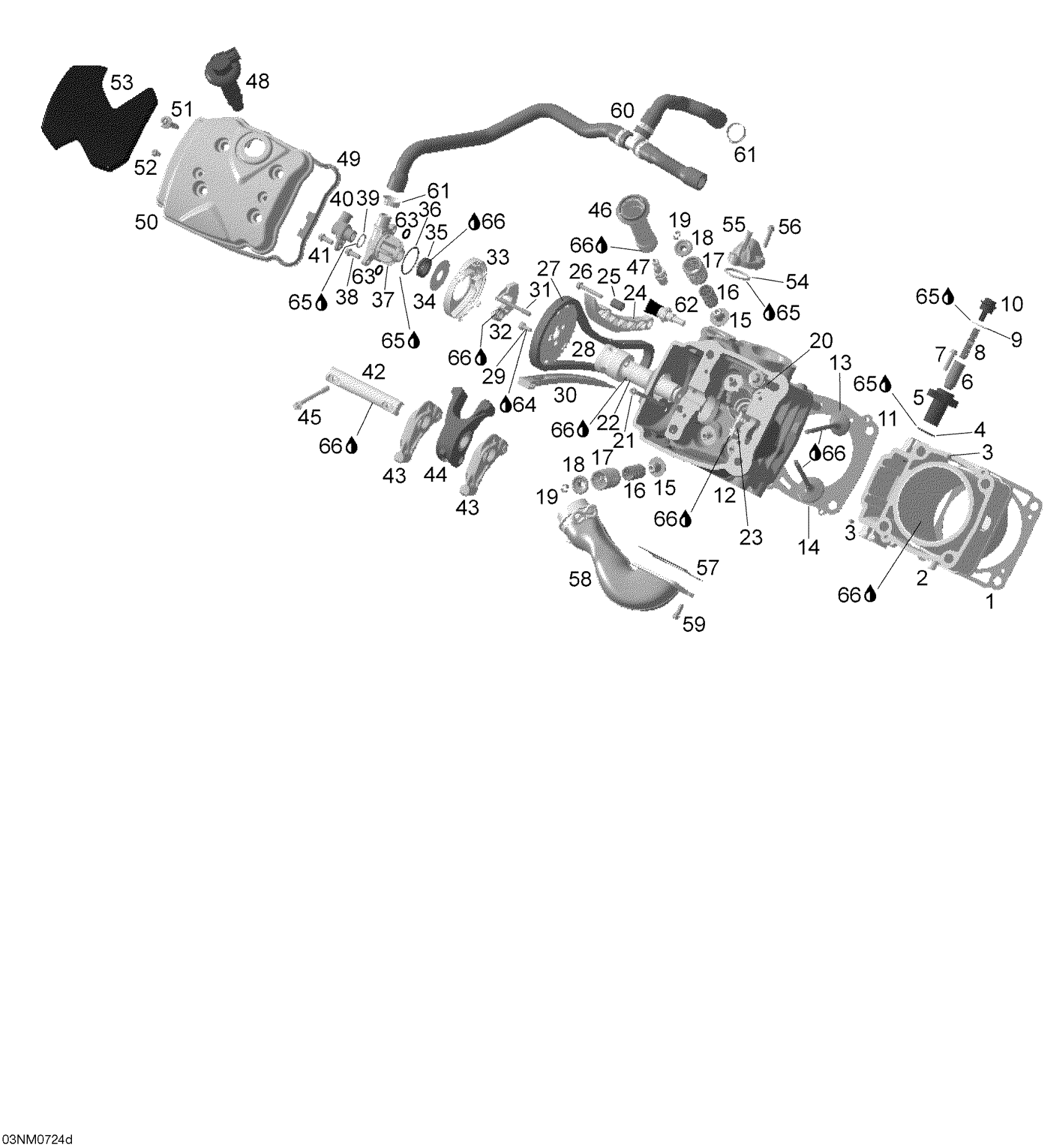

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Cylinder and Cylinder Head, Front Side Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER WITH SLEEVE - Call your local BRP dealership | Includes 2 to 3

420623212

Unavailable

3

Drive Pin 5 X 10

420929650

$1.54

4

O-Ring

420430373

$3.01

5

Chain Tensioner Housing

420236510

$10.76

6

Chain Tensioner Plunger

420236521

$14.04

7

Torx Flange Screw M6 X 25

420440234

$2.91

8

Spring

420238120

$7.01

9

O-Ring

420250890

$2.87

10

Plug Screw

420641150

$7.01

11

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

12

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

13

Exhaust Valve 31 mm

420254027

$84.30

14

Intake Valve 38MM

420253163

$38.78

15

Valve Steam Seal

420630202

$6.91

16

Valve Spring Inside

420838280

$12.15

17

Valve Spring

420238180

$14.90

18

Valve Spring Retainer

420254283

$8.09

19

Valve Cotter

420253645

$7.01

20

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

21

Torx Flange Screw M6 X 105

420440612

$7.01

22

CAMSHAFT FRONT - Call your local BRP dealership

420837575

Unavailable

23

Camshaft Guide

420851694

$30.57

24

Chain Tension Guide

420236541

$14.90

25

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

26

Torx Flange Screw M6 X 35

420440274

$0.96

27

Camshaft Chain

420297957

$94.75

28

Timing Gear, 38 Teeth

420254309

$66.39

29

Allen Screw M6 X 12

420840032

$4.15

30

Chain Guide

420236501

$13.18

31

DEKO SHAFT - Call your local BRP dealership

420220791

Unavailable

32

Centrifugal Weight Ass’Y

420231064

Unavailable

33

Cover

420660037

$22.36

34

Thrust Washer

420627494

$7.01

35

V-Ring 20S FPM Blow By Valve

420630125

$10.76

36

O-Ring

420950870

$5.06

37

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

38

Torx Flange Screw M6 X 16

420440162

$3.01

39

O-Ring

420430220

$7.79

40

Connecting Cover

420660275

Unavailable

41

Torx Flange Screw M6 X 16

420440162

$3.01

42

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

43

Rocker Arm, Exhaust

420254329

$129.07

44

Rocker Arm, Inner

420254316

$170.12

45

Torx Screw M8 X 72

420641080

$5.04

46

Spark Plug Pipe

420851754

$26.09

47

Spark Plug, NGK DCP-R8E

715900637

$6.49

48

Ignition Coil Kit This part replaces 420664020.

296000307

$99.22

49

Sealing Ring

420630071

$17.13

50

Valve Cover

420610185

Unavailable

51

Allen Screw M6 x 30,5

420440561

$4.21

52

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

53

Valve Cover

420660201

Unavailable

54

O-Ring

420950890

$4.15

55

Connecting Cover

420811700

Unavailable

56

Torx Flange Screw M6 X 25

420440234

$2.91

57

GASKET - Call your local BRP dealership

420950680

Unavailable

58

EXHAUST MANIFOLD ASS'Y - Call your local BRP dealership

420973782

Unavailable

59

Torx Flange Screw M6 X 16

420440162

$3.01

60

AIR VENT LINE ASS'Y - Call your local BRP dealership

420660713

Unavailable

61

CLAMP - Call your local BRP dealership

420853153

Unavailable

62

Temperature Sensor

278002895

$36.54

63

Seal Washer

420230415

$1.72

64

Loctite 243, 10 ml

293800060

$21.49

65

Grease, Super Lube

293550030

$28.33

66

Synth Oil 4T 12x1

293600054

Unavailable
