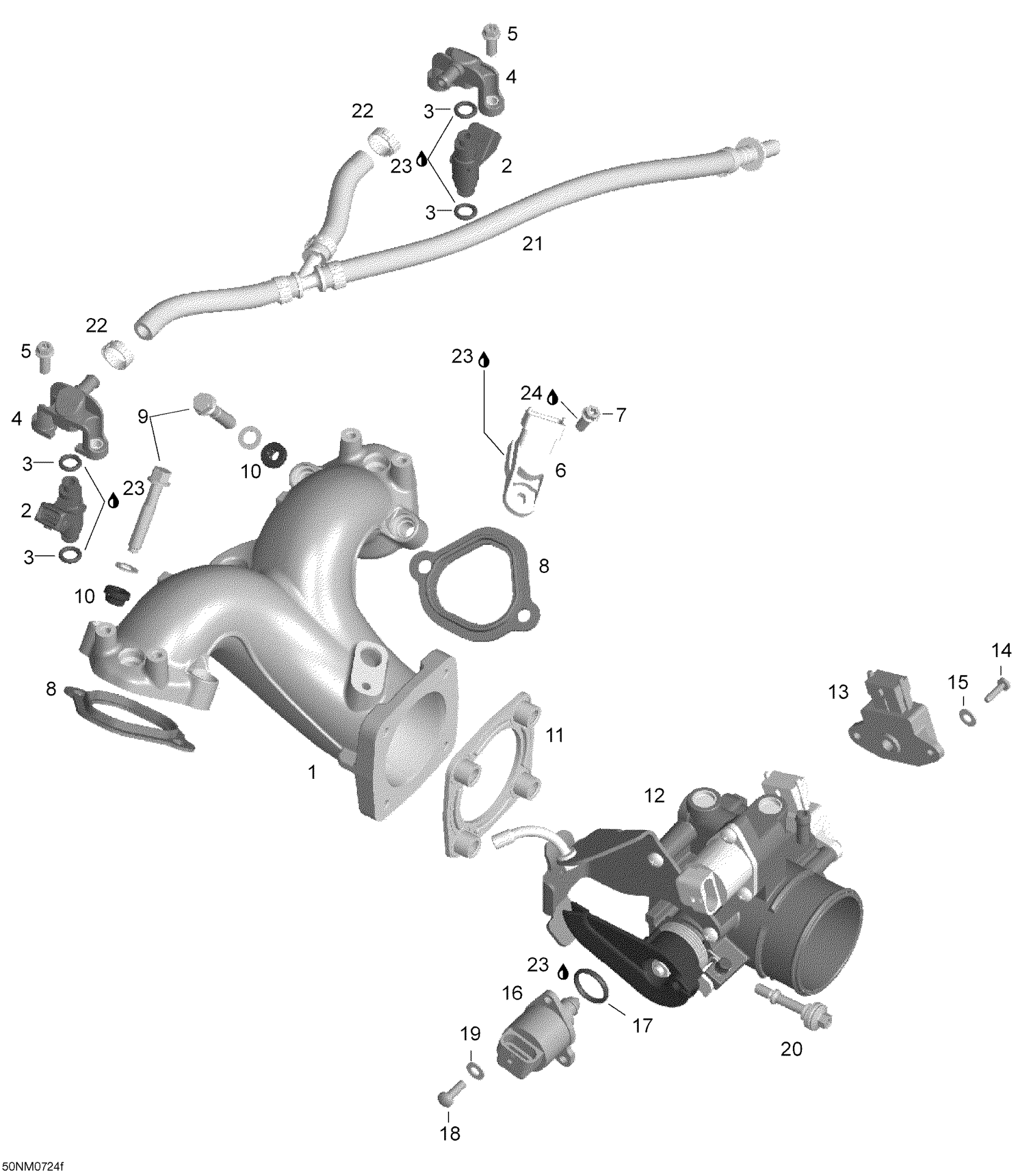

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Air Inlet Manifold And Throttle Body Diagram

#

Description
Price

1

Air Inlet Manifold

420867942

Unavailable

2

INJECTION VALVE - Call your local BRP dealership

420874404

Unavailable

3

O-Ring

420631220

$11.48

4

Fuel Rail

420874410

$16.89

5

Torx Flange Screw M6 X 16

420440162

$3.11

6

Pressure And Temperature Sensor

707000995

$70.82

7

Torx Flange Screw M6 X 16

420440162

$3.11

8

GASKET - Call your local BRP dealership

420950692

Unavailable

9

Distance Screw M8

420440477

Unavailable

10

RUBBER SLEEVE - Call your local BRP dealership

420660190

Unavailable

11

Rubber Gasket

420950792

$8.89

12

THROTTLE BODY SOCKET - Call your local BRP dealership

420888902

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Idle Air Control Valve

420665941

$147.52

17

O-Ring

420631780

$3.61

18

Binding Head Screw M5 X 16

420440911

$11.48

19

Snap Ring

420845710

$3.38

20

Allen Screw M6 x 30,5

420440561

$3.67

21

Fuel Hose

420874562

Unavailable

22

Clamp

420851458

$7.23

23

Grease, Super Lube

293550030

$24.67

24

Loctite 243, 10 ml

293800060

$20.77
