Description

Price

1

Snow guard This part replaces M538629.

538629

$95.99

2

THREADED PLATE - Call your local BRP dealership

520000847

Unavailable

3

Torx Screw M5 X 14

250000742

$1.47

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rear Light | Includes 200 to 200a

520000848

$99.49

7

Rear Wiring Harness

520000849

$53.99

8

Male Housing, 3 Circuits

515175494

$16.18

9

Bulb

520000758

$9.10

10

Stopper Rubber

705014429

$5.95

12

Yellow, RH Reflector

520001600

$33.99

13

Yellow, LH Reflector

520001601

$33.99

14

Amber, Lateral Reflector

705002423

$15.49

15

Tool Kit | Includes 20 To 28

529000065

$55.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$7.69

20

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

21

Hair pin

41029

$4.44

22

Horn

549011291

$35.99

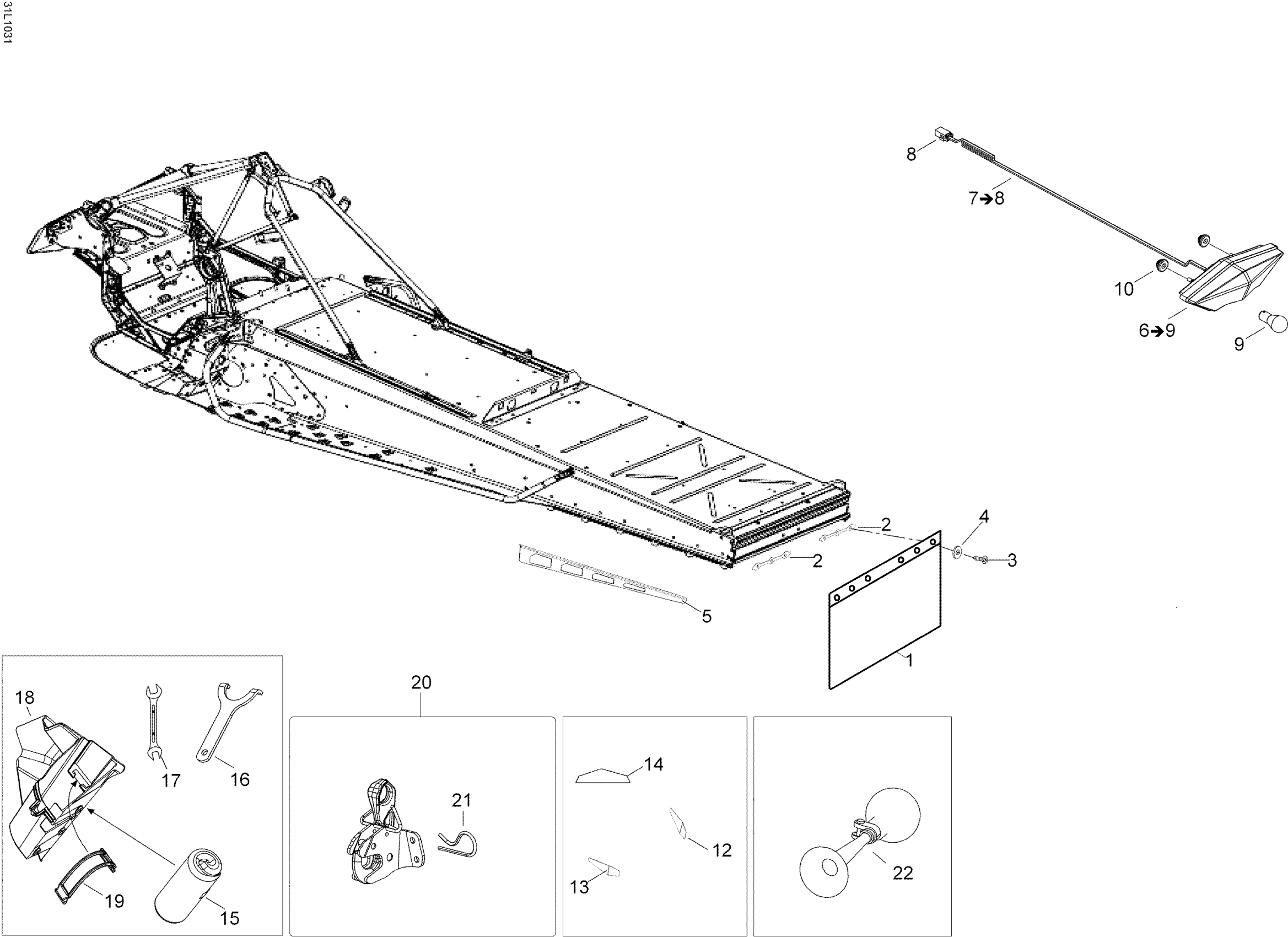

Ski-Doo Expedition TUV 1200 REV-XU, 2010 09- Utilities Europe Diagram

Snow guard This part replaces M538629.

THREADED PLATE - Call your local BRP dealership

Torx Screw M5 X 14

Washer M5

RH Protector

LH Protector

Rear Light | Includes 200 to 200a

Rear Wiring Harness

Male Housing, 3 Circuits

Bulb

Stopper Rubber

Yellow, RH Reflector

Yellow, LH Reflector

Amber, Lateral Reflector

Tool Kit | Includes 20 To 28

ADJUSTMENT WRENCH - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

Latch

Hitch Ass'y | Includes 3600 to 3600f

Hair pin

Horn
