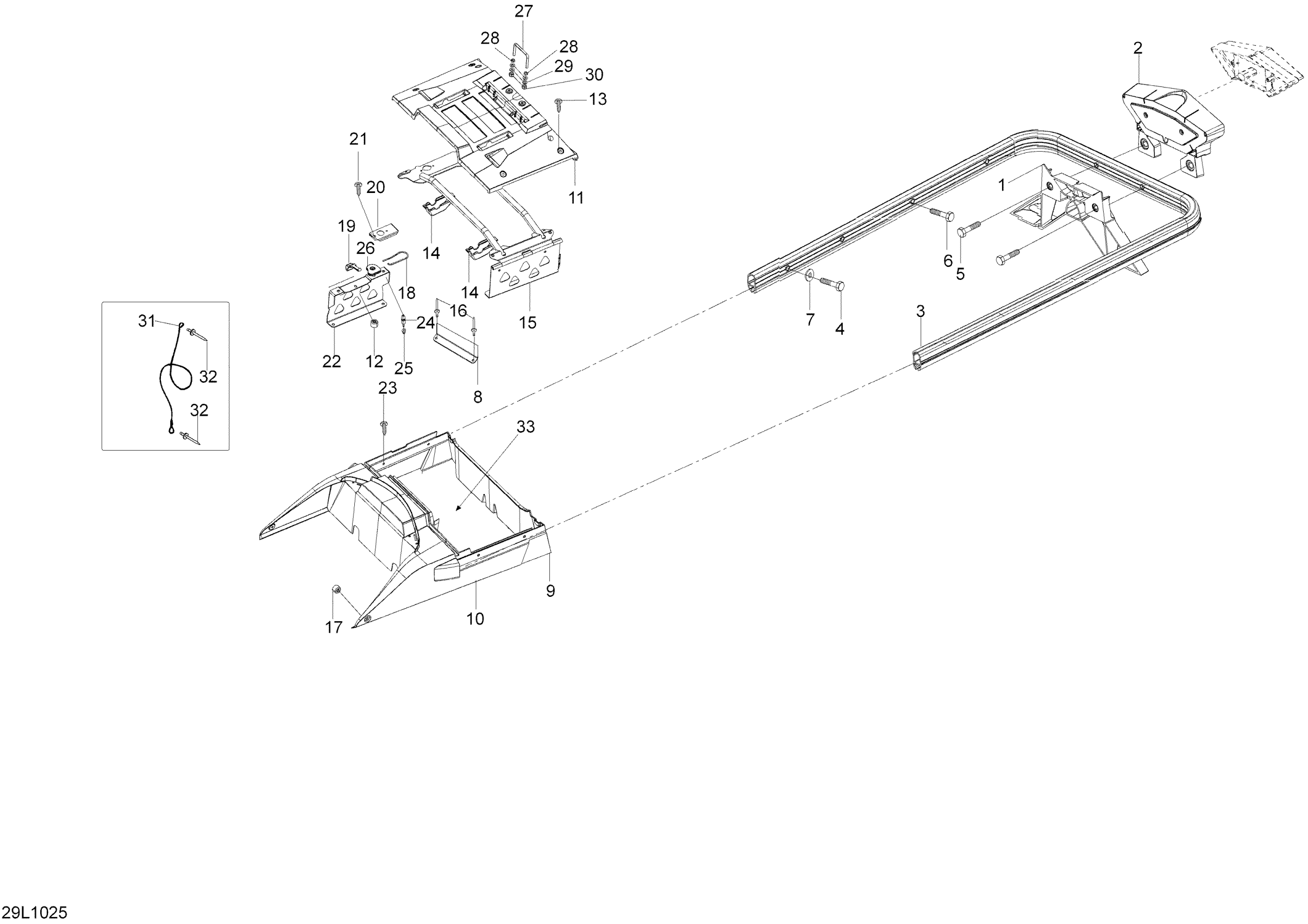

Ski-Doo Expedition TUV 1200 REV-XU, 2010 Luggage Rack Diagram

#

Description
Price

1

Rear Light Support

511000559

$58.18

2

Rear Light Cover

511000764

$35.04

3

Black, Rear Bumper | WT

511000563

$124.60

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

5

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

Unavailable

6

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.00

7

Flat Washer 6 mm

234062410

$0.73

8

Cable Support Plate

510005156

$17.13

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Storage Box

510006243

$211.91

11

Storage Box Cover

510006244

$39.99

12

Bushing

510005147

$9.61

13

Torx Screw M6 X 12

250000454

$4.15

14

Cover

510004999

$15.64

15

Lock tube

510005714

$390.27

16

Pop Rivet 3/16"

390402200

$0.30

17

Plug

605452114

$8.34

18

Latch Ass'y

269700109

$23.10

19

Puller

510005072

$17.88

20

Lock Pin Cover

510005698

$18.63

21

Forming Screw M5 x 16

250000676

$0.96

22

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

24

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

25

Elastic Flange Nut M6 X 1.0

233261416

$2.00

26

Lock Pin Guide

510005044

$13.60

27

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

28

Hex. Nut M6

250000135

$0.49

29

Washer

20117

$5.06

30

Elastic Stop Nut M6

232561414

$1.78

31

Foam

510005043

$64.15

32

Seat Retainer Cable

293750070

$9.93

33

Pop Rivet 3/16"

390402200

$0.30
