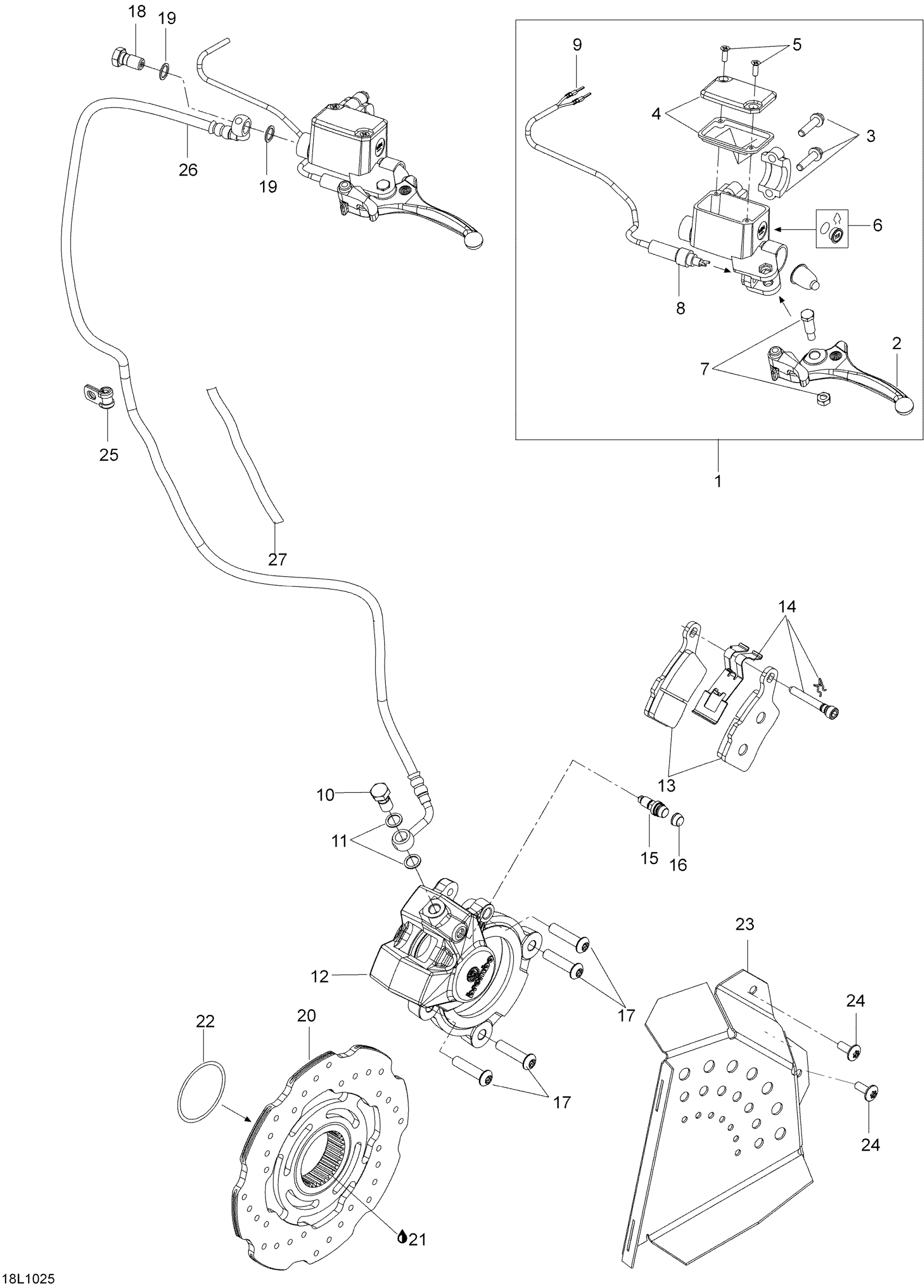

Ski-Doo Expedition TUV 1200 REV-XU, 2010 06- Hydraulic Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

2

Lever With Parking Lock

507032476

$99.99

3

Clamp And Screw Kit

507032477

$23.99

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

5

Screw M4 X 20

415129356

$2.22

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Pin Ass'y

415030000

$19.99

8

Microswitch | Grand Touring

507032479

$99.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Banjo Bolt

414920500

$8.68

11

Washer

414920600

$1.90

12

Brake Caliper Ass'y | Includes 17 to 17c This part replaces 507032603.

507032501

$476.99

13

Brake Pads Kit

507032489

$79.49

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Disk

507032513

$243.99

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.32

23

DISK PROTECTOR - Call your local BRP dealership

507032508

Unavailable

24

Torx Screw M6 X 16

250000365

$2.11

25

Clamp

293650256

$5.49

26

BRAKE HOSE - Call your local BRP dealership This part replaces 507032494.

507032534

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$14.49
