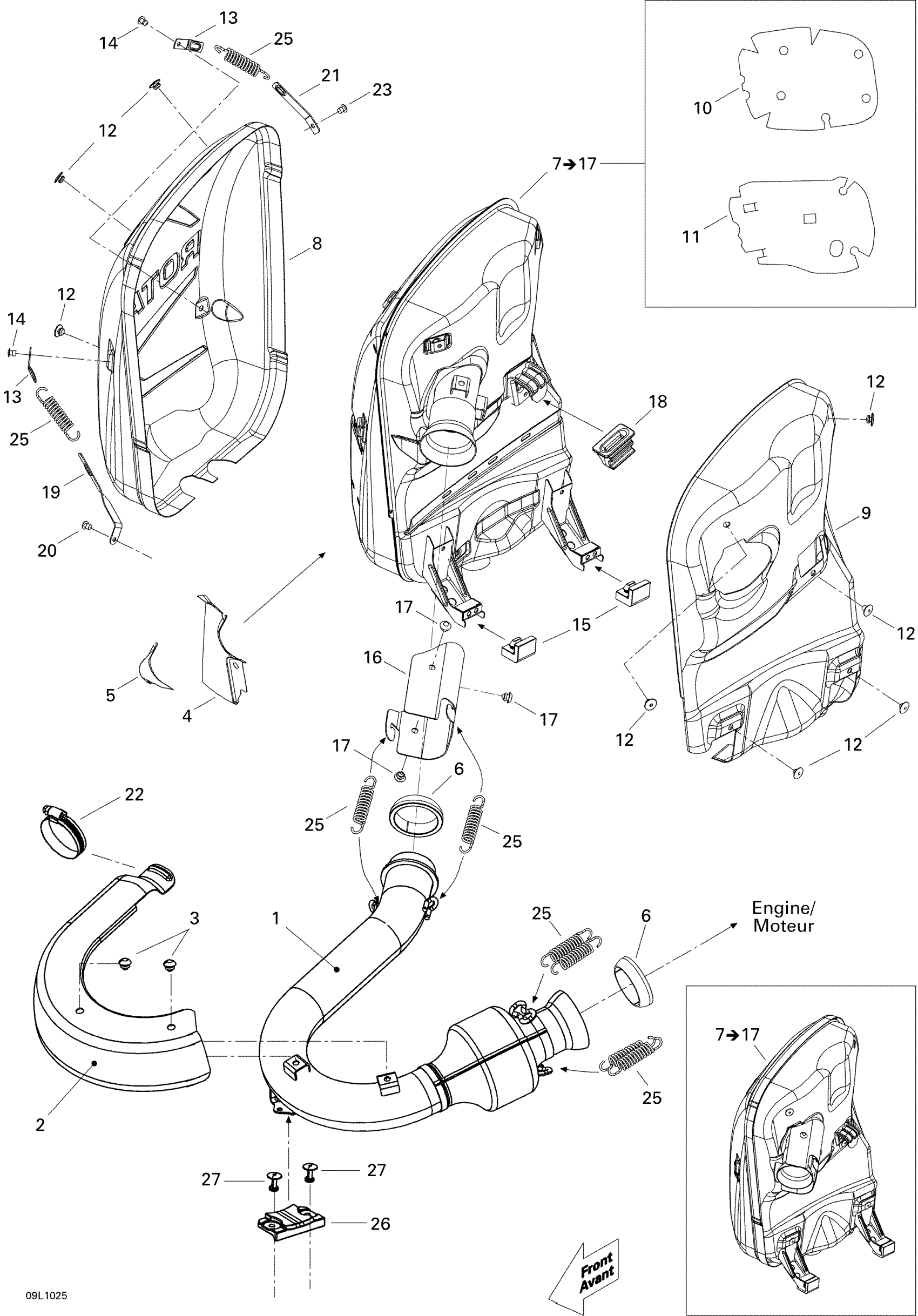

Ski-Doo Expedition TUV 1200 REV-XU, 2010 01- Exhaust System Diagram

#

Description
Price

1

Short Tube Ass'y

514055076

$890.49

2

Exhaust Deflector

514054397

$46.99

3

Rivet 6,4 mm

293150173

$4.29

4

REFLECTIVE SHEET - Call your local BRP dealership

514054398

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

514054399

Unavailable

6

Exhaust Gasket

514054174

$28.49

7

Muffler Ass'y | Includes 400 to 400k

514054931

$1.00

8

RH HEAT SHIELD - Call your local BRP dealership

514054474

Unavailable

9

LH HEAT SHIELD - Call your local BRP dealership

514054369

Unavailable

10

INSULATING WOOL - Call your local BRP dealership

514054256

Unavailable

11

INSULATING WOOL - Call your local BRP dealership

514054257

Unavailable

12

Pop Rivet 3/16”

390910000

$0.57

13

Spring Bracket

514054522

$8.45

14

Avex Rivet

390909200

$0.30

15

Lower Stopper

514054529

$18.49

16

DEFLECTOR - Call your local BRP dealership

514054396

Unavailable

17

Rivet 6,4 mm

293150173

$4.29

18

Stopper

514054346

$19.49

19

Spring Bracket

514055030

$13.10

20

Avex Rivet

390909100

$0.30

21

SPRING BRACKET - Call your local BRP dealership

514054484

Unavailable

22

Tridon Clamp

293650036

$7.49

23

Avex Rivet

390909200

$0.30

25

Spring

514054226

$6.35

26

Bumper

514054275

$16.34
