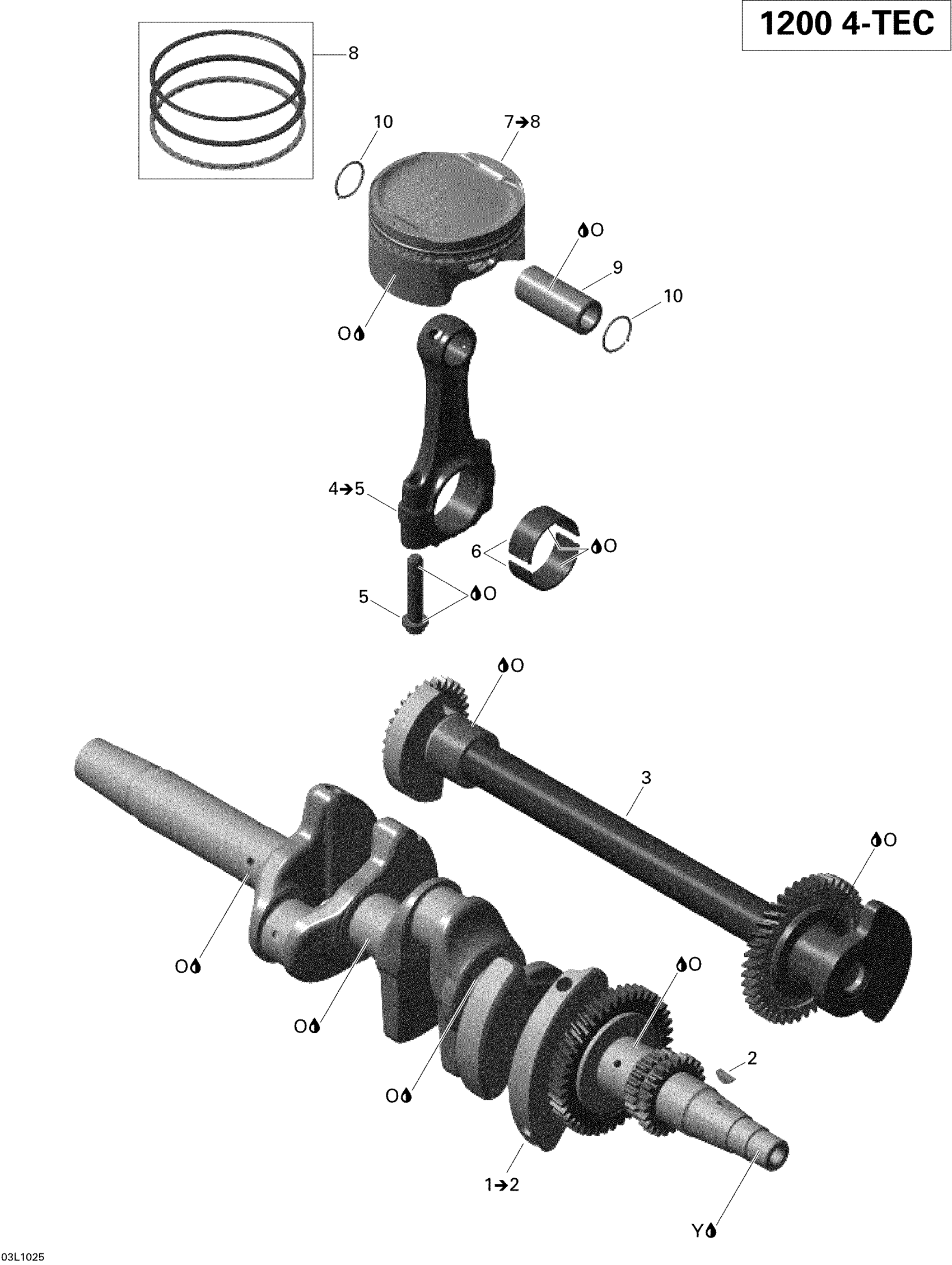

Ski-Doo Expedition TUV 1200 REV-XU, 2010 Crankshaft And Pistons Diagram

#

Description

Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420819796

$921.61

2

Woodruff Key 4 X 5

420246570

$3.19

3

Balance Shaft This part replaces 420820054.

420820053

$505.19

4

CONNECTING ROD ASS'Y - Call your local BRP dealership | Includes 4 to 5

420917645

$229.07

5

Connecting Rod Screw M9 X 1

420641475

$16.30

6

Plain Bearing

420933842

$17.88

7

Piston Ass'y, 90.958 mm | Includes 7 to 8

420891890

$182.06

8

Piston Ring Set | 400HO

420296774

$80.57

9

Piston Pin

420216274

$29.07

10

Piston Circlip

420245436

$4.33

O

SYNTHETIC OIL 4T 12X1 L. - Call your local BRP dealership

293600112

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.10
