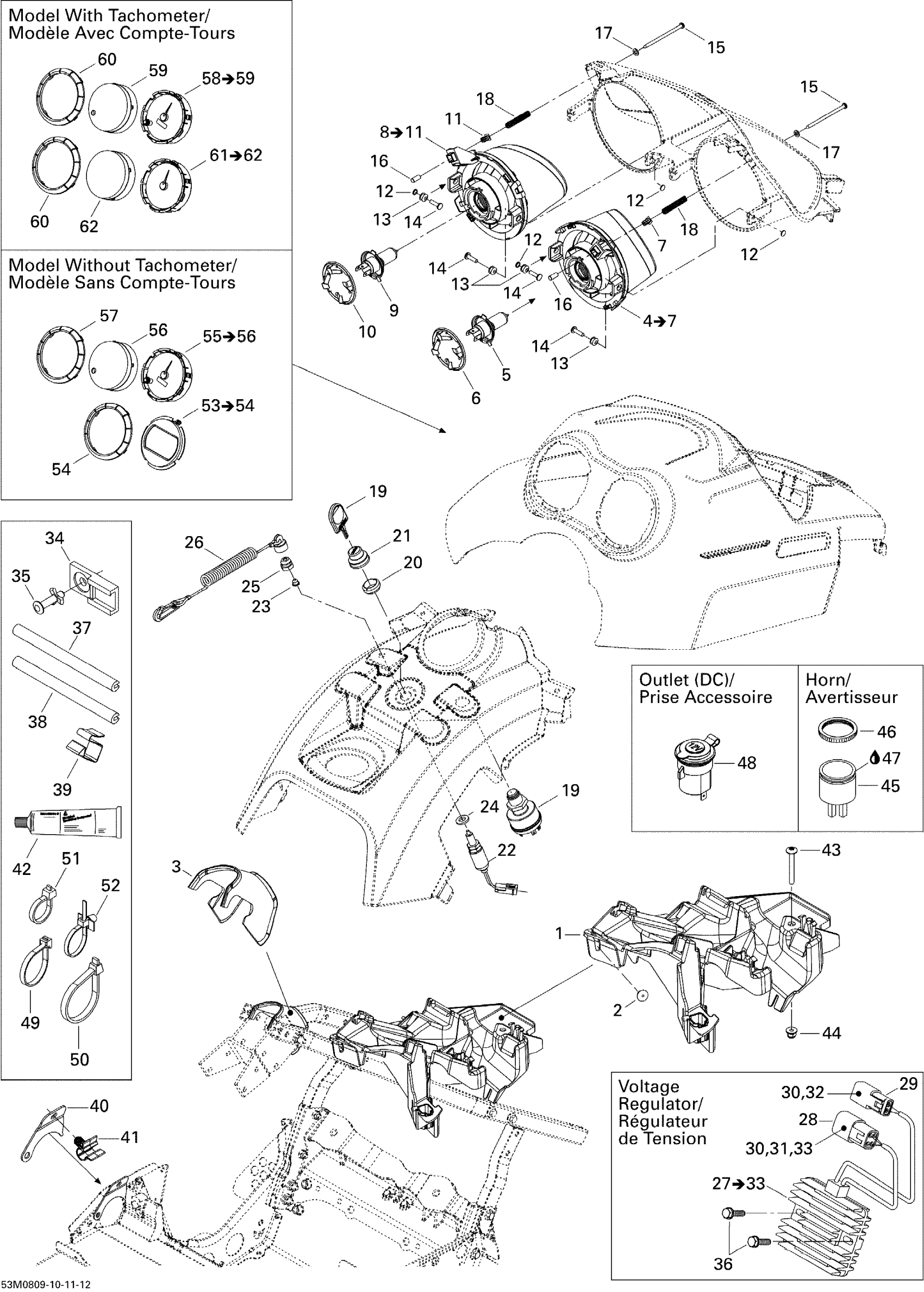

Ski-Doo Expedition Sport V-800, 2008 Electrical Accessories Diagram

#

Description
Price

1

PLATE - Call your local BRP dealership

515176336

Unavailable

2

Pop Rivet 3/16"

293150103

Unavailable

3

PROTECTOR - Call your local BRP dealership

515176321

Unavailable

4

RH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176168

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

Plastic Insert

515176339

Unavailable

8

LH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176169

Unavailable

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

10

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

11

Plastic Insert

515176339

Unavailable

12

Push Nut

389804300

$0.43

13

HEADLAMP BUSHING - Call your local BRP dealership

515176289

Unavailable

14

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

15

PHILLIPS SCREW #8 X 3 - Call your local BRP dealership

250000244

Unavailable

16

Cap

515176370

Unavailable

17

Flat Washer M5, Stainless

234051600

$0.64

18

SPRING - Call your local BRP dealership

515176353

Unavailable

19

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

20

FACE NUT - Call your local BRP dealership

410112100

$14.29

21

Switch Boot

570013700

Unavailable

22

Brake Switch

515175653

$15.57

23

Plunger Cap

570151100

$10.14

24

WASHER - Call your local BRP dealership

503183500

$1.40

25

Switch Nut

515145900

$10.83

26

Cap Ass'y

515178283

$37.66

27

Voltage Regulator

515175968

Unavailable

28

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

29

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

30

Male Terminal

515175568

$7.48

31

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

32

Male Lock, 2 Circuits

278001672

$3.02

33

Sealing Cap

293000052

Unavailable

34

Clip

270000141

$8.33

35

Avdel Rivet 3/16"

293150037

$0.47

36

Hexagonal Head Screw

210262050

$1.74

37

TRIM - Call your local BRP dealership

509000263

Unavailable

38

Was 271000110 Protection Trim

219704353

Unavailable

39

Clip

414227300

$1.45

40

PLATE - Call your local BRP dealership

515176465

Unavailable

41

Hose Retainer

275500528

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

43

Torx Truss Screw M6 X 50

250000749

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

47

Silicone Sealant 51388, 300 ml

296000309

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Tie-Rap 180 mm

414115200

$0.09

50

Tie Wrap 368 mm

293750008

$0.85

51

Tie Wrap 142 mm

293750002

Unavailable

52

Tie-Rap 173 mm

293750009

Unavailable

53

GAUGE BOTTOM RING ASS'Y - Call your local BRP dealership | Includes 1 to 2

515176373

Unavailable

54

Gauge Ring This part replaces 515176242.

515179005

Unavailable

55

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

56

LENS - Call your local BRP dealership

415129319

Unavailable

57

Gauge Ring This part replaces 515176242.

515179005

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable
