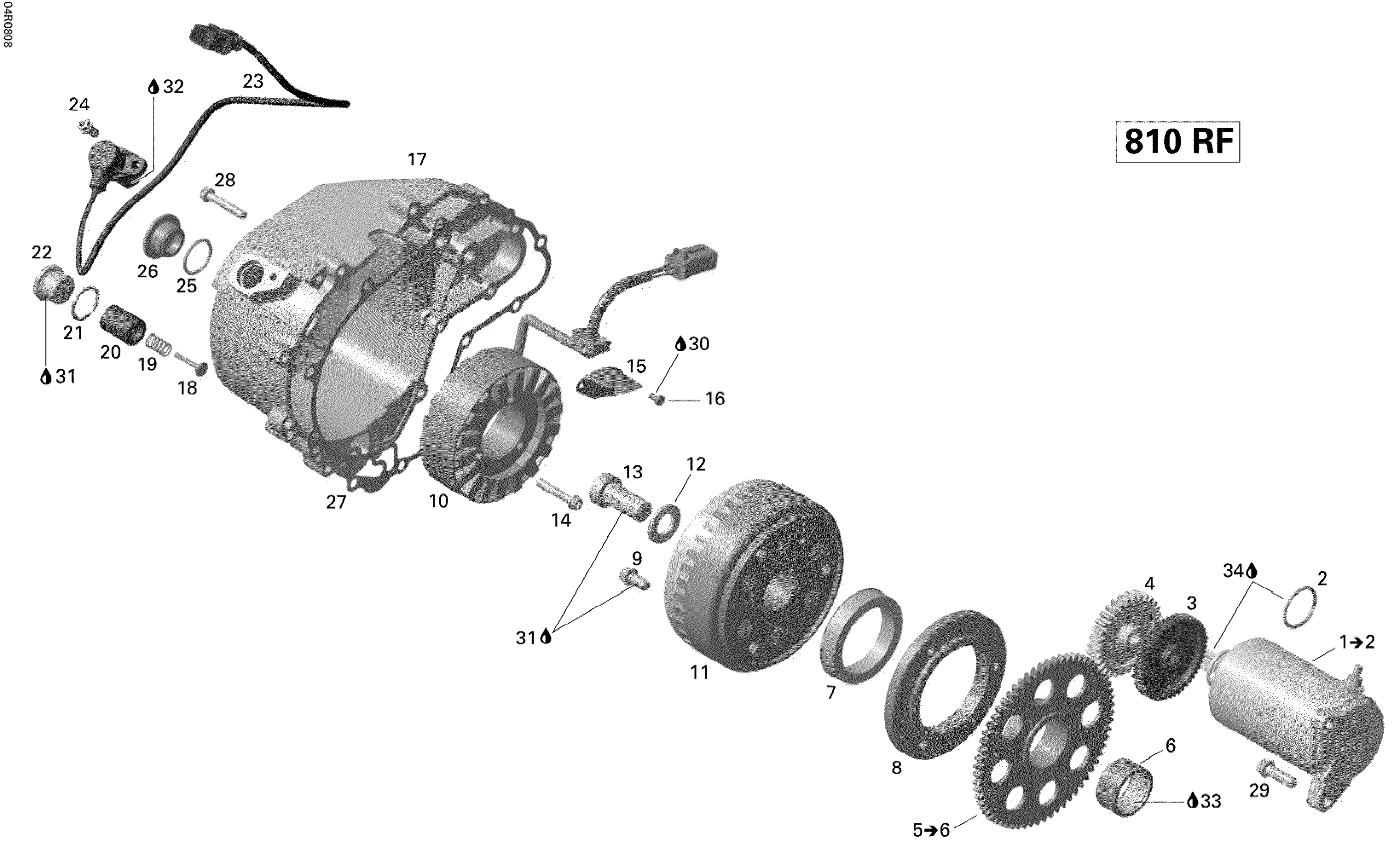

Ski-Doo Expedition Sport V-800, 2008 Magneto Diagram
#
Description
Price
1
Electric starter Ass'y
420684566
Unavailable
2
O-Ring
420250140
Unavailable
4
GEAR, 30 TEETH - Call your local BRP dealership
420634604
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Sprag Clutch
420659111
Unavailable
9
Torx Flange Screw M8 X 16
420440852
Unavailable
10
STATOR ASS'Y - Call your local BRP dealership
420296909
Unavailable
11
FLYWHEEL - Call your local BRP dealership
420296905
Unavailable
13
Socket Head Screw M16 X 35
420241545
Unavailable
15
Interior Cable Support Ass'y
420251889
Unavailable
16
Phillips Screw M4 X 8
420240196
Unavailable
17
Ignition Cover
420212225
Unavailable
18
Pressure Relief Valve
420656370
Unavailable
19
Spring
420939481
Unavailable
20
Housing
420256487
Unavailable
22
Plug Screw
420640271
Unavailable
24
Torx Flange Screw M6 X 16
420641048
Unavailable
25
O-Ring
420430782
Unavailable
26
Plug Screw M24X 1.5
420241633
Unavailable
27
Gasket
420651203
Unavailable
31
Sealant Loctite 648
219703000
Unavailable
32
Grease, Super Lube
293550030
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
