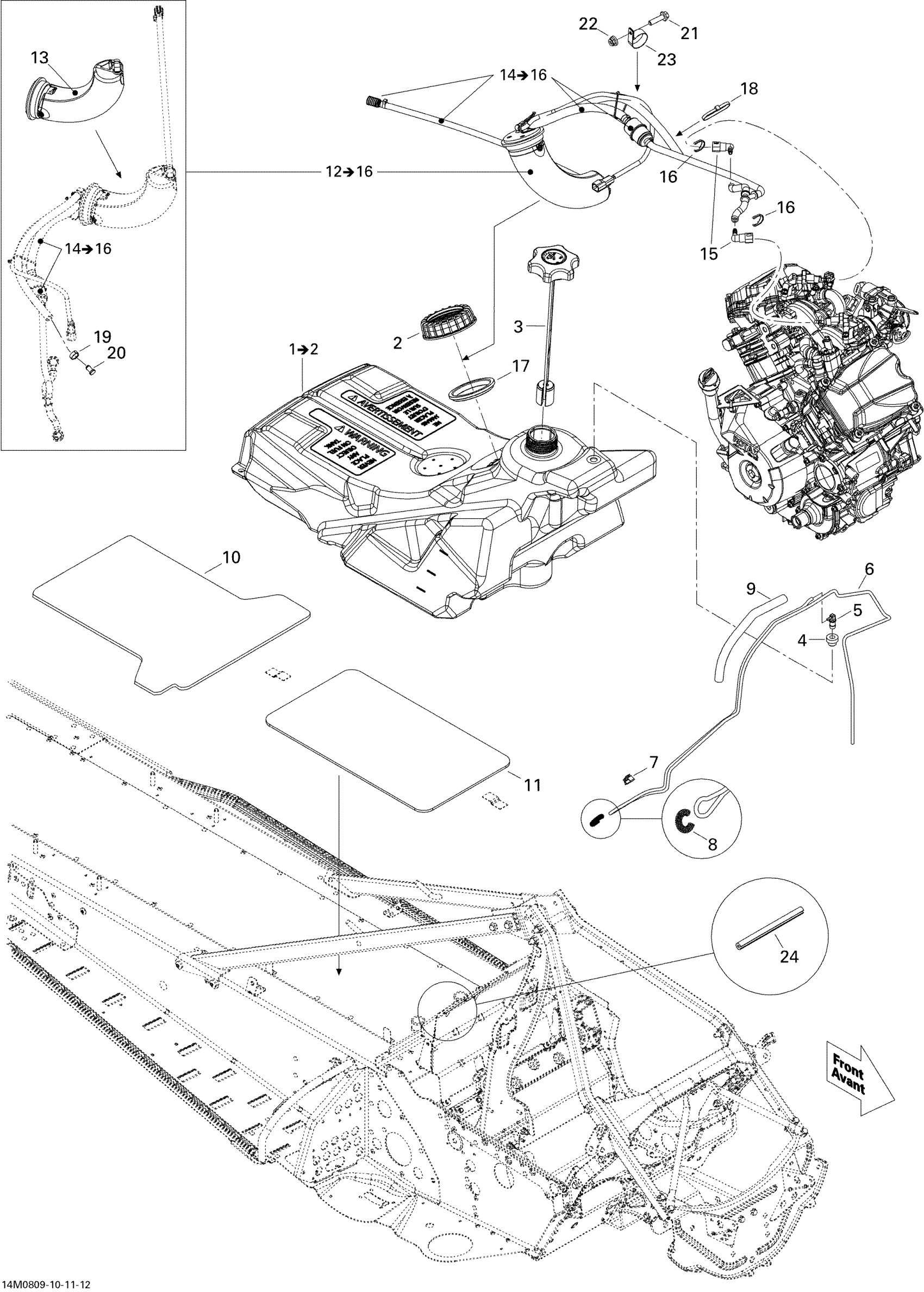

Ski-Doo Expedition Sport V-800, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership | Includes 1 to 2

513033181

$201.51

2

Nut, Fuel Pump Module

513033040

$27.66

3

Fuel Tank Cap

513033361

$56.12

4

Grommet

513032908

$8.74

5

Male Connector

414814100

$2.18

6

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

7

Clip

414227300

$1.45

8

SPRING - Call your local BRP dealership

414818200

Unavailable

9

Tubing 10 MM 1000MM Long

219704407

Unavailable

10

ANTI SLIP MAT - Call your local BRP dealership

511000499

Unavailable

11

RADIATOR COVER SHIM - Call your local BRP dealership

511000500

Unavailable

12

Fuel Pump Module | Includes 12 to 16

513033393

Unavailable

13

PUMP KIT ASS'Y - Call your local BRP dealership

861805503

Unavailable

14

Fuel Filter | Includes 14 to 16

861805504

Unavailable

15

Quick Fitting 90° Ass'y

415128965

Unavailable

16

Locking Clip

513033135

$5.11

17

SEAL - Call your local BRP dealership

513033039

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

Crimp Clamp, 15.3-706R

293650047

Unavailable

20

PLUG, 8 MM - Call your local BRP dealership

293000107

Unavailable

21

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Open Clamp

513033047

$4.88

24

TRIM - Call your local BRP dealership

509000263

Unavailable
