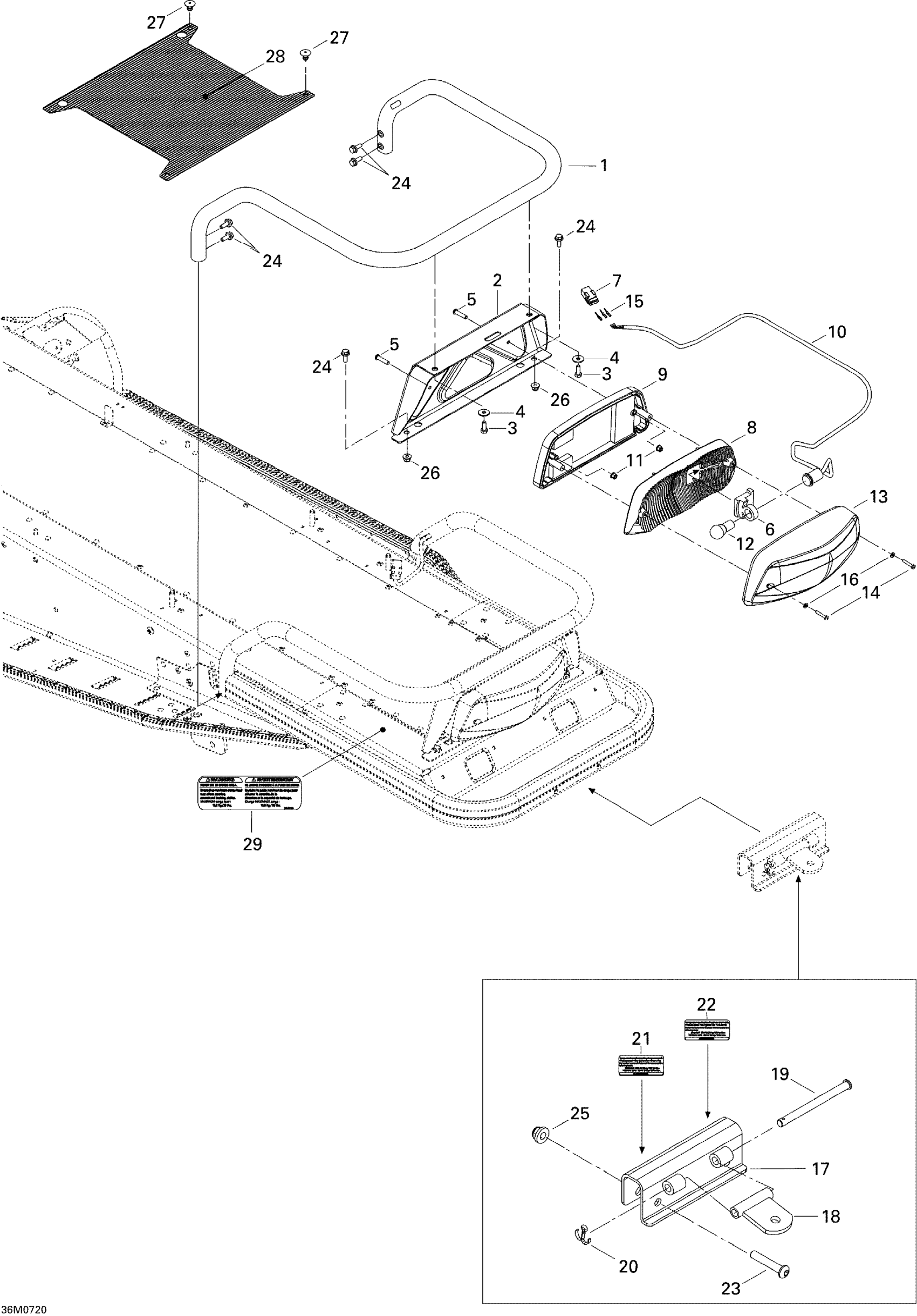

Ski-Doo Expedition Sport V-800, 2007 Luggage Rack Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000422

Unavailable

2

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.61

4

Flat Washer

250200082

$0.35

5

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

6

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

7

Male Housing, 3 Circuits

515175494

$15.35

8

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

9

REAR LIGHT HOUSING - Call your local BRP dealership

515176272

Unavailable

10

BULB SOCKET - Call your local BRP dealership

511000448

Unavailable

11

Hex. Flange Elastic Nut M5

233251414

$1.66

12

Bulb

520000758

$7.49

13

Lens

511000315

$34.58

14

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

15

Male Terminal

515175232

$1.49

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Hitch, Black

511000524

Unavailable

18

Hitch Plate Welded

511000521

$14.54

19

Lock Pin

511001451

$8.57

20

Cotter Pin

371800200

$0.51

21

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

22

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

23

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

24

Hex. Flange Screw M6 X 20

207662044

$1.66

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Pop Rivet 3/16"

293150103

$0.54

28

ANTI SLIP MAT - Call your local BRP dealership

511000495

Unavailable

29

MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership

516003039

Unavailable
