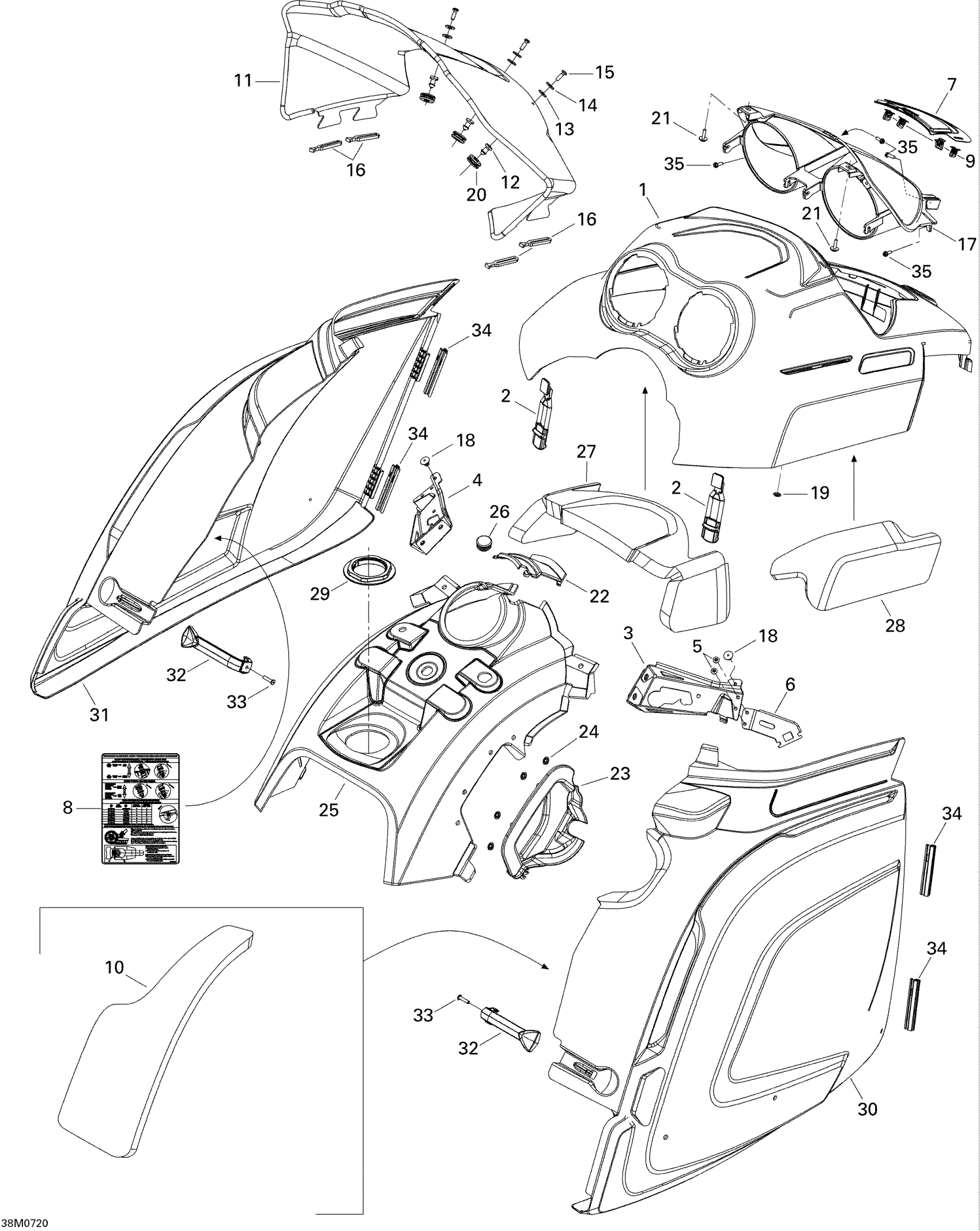

Ski-Doo Expedition Sport V-800, 2007 09- Hood Diagram

#

Description
Price

1

HOOD - Call your local BRP dealership

517303525

Unavailable

2

Latch

517303518

$12.99

3

RH Bracket

517303662

Unavailable

4

LH Bracket

517303663

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

BRACKET - Call your local BRP dealership

517303517

Unavailable

7

Center Hood Grille

517303331

Unavailable

8

Adjustment Suspension Decal

517303776

Unavailable

9

Edge Clip

517302785

$0.88

10

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

11

Windshield, High

517303440

$143.49

12

Knob

517303439

$4.55

13

Rubber Washer 5 mm

250200024

$2.19

14

Washer M5

250200025

$0.74

15

Torx Screw K50 X 16

250000720

$1.69

16

Windshield Latch

570023800

$4.49

17

Moulding

517303692

Unavailable

18

Pop Rivet 3/16"

293150103

$0.55

19

Push Nut

732610072

$2.19

20

Grommet

517302841

$7.89

21

Screw M4 X 16

250000725

$3.49

22

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

23

RH CONSOLE - Call your local BRP dealership

517303589

Unavailable

24

Push Nut

732610072

$2.19

25

CENTER CONSOLE - Call your local BRP dealership

517303641

Unavailable

26

CAP - Call your local BRP dealership

706200474

Unavailable

27

Hood Foam

517303664

Unavailable

28

RH Hood Foam

517303486

Unavailable

29

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

30

RH Panel

517303644

Unavailable

31

LH PANEL - Call your local BRP dealership

517303633

Unavailable

32

Panel Latch

517302448

$14.99

33

Pop Rivet 3/16”

390410100

$0.57

34

Hinge Lock

517302823

$13.99

35

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
