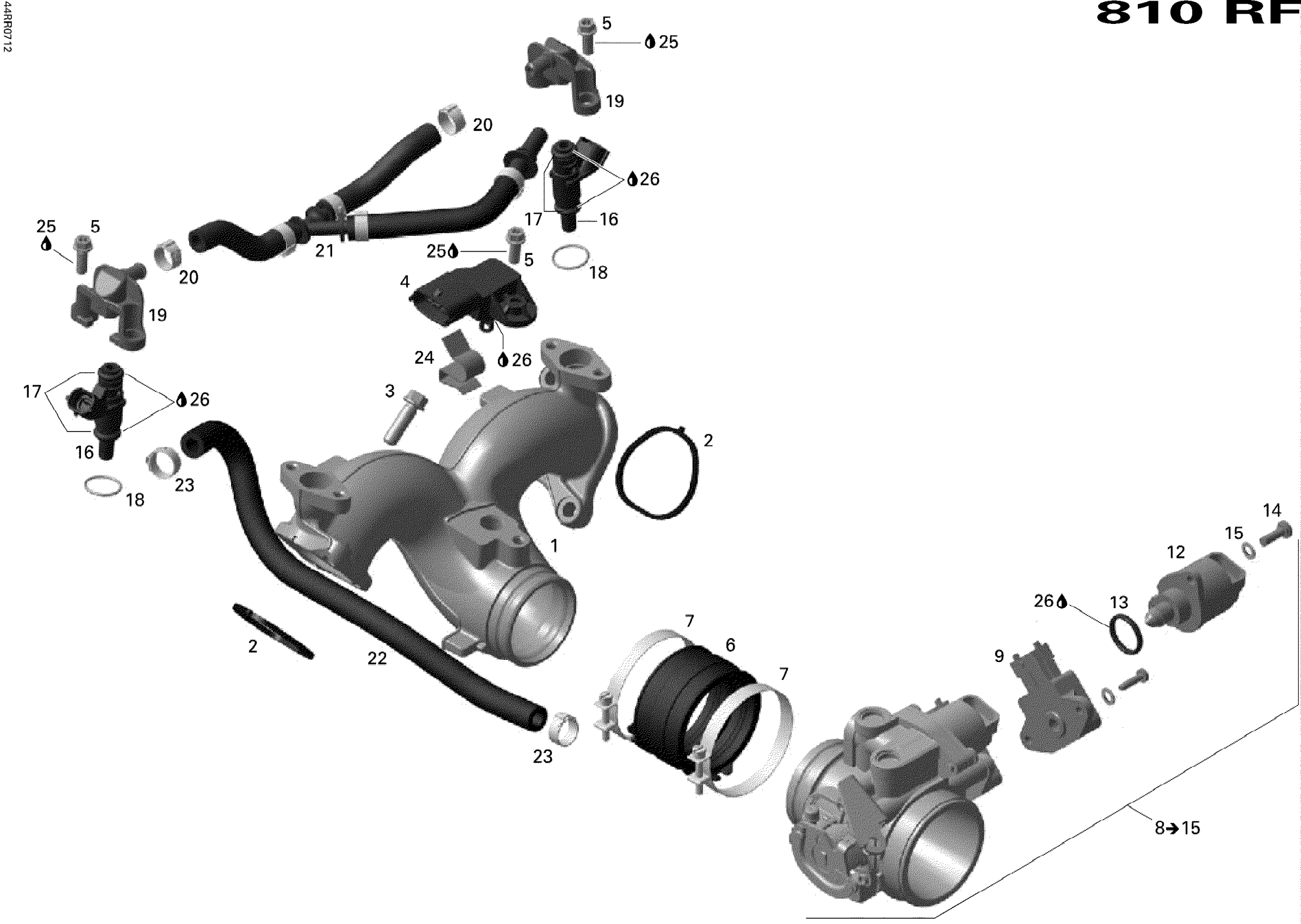

Ski-Doo Expedition Sport V-800, 2007 Intake Manifold And Throttle Body Diagram

#

Description
Price

1

AIR INTAKE MANIFOLD - Call your local BRP dealership

420667342

Unavailable

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 25

420440372

$3.88

4

Pressure And Temperature Sensor

707000995

$81.31

5

Torx Flange Screw M6 X 16

420641048

$2.82

6

Intake Adaptor

420267480

$14.90

7

Clamp

420251480

$13.18

8

THROTTLE BODY ASS'Y. - Call your local BRP dealership | Includes 8 to 15

420296878

Unavailable

9

Position Sensor

420866120

$89.52

12

Idle Air Control Valve

420665941

$169.37

13

O-Ring

420631780

$4.15

14

Binding Head Screw M5 X 16

420440911

$13.18

15

Snap Ring

420845710

$3.88

16

Injection Valve

420874402

$176.09

17

O-Ring

420631220

$13.18

18

O-Ring

420631296

$0.72

19

Fuel Rail

420874410

$16.39

20

Clamp

420851458

$7.01

21

HOSE - Call your local BRP dealership

420874711

Unavailable

22

Formed Hose

420460271

Unavailable

23

Oetiker Clamp

293650125

$3.09

24

WIRE CLAMP - Call your local BRP dealership

420651030

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Grease, Super Lube

293550030

$28.33
