Description

Price

1

Hex Screw M3 X 20

207132044

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Hex. Flange Screw M6 X 20

210262040

$2.11

6

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

7

Flat Washer

224061121

$0.53

8

Elastic Stop Nut M3

232531423

$0.55

9

Elastic Stop Nut M6

232561434

$1.99

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer M3, Stainless

234032600

$0.55

12

Flat Washer 6 mm

234061410

$1.36

14

Hex. Flange Screw M6 X 25

250000793

$2.11

15

Torx Screw

250000671

$1.01

16

Pan Screw Forming, 7500C

250000690

$2.11

17

Screw M4 X 16

250000725

$3.49

18

Flat Washer

250200039

$0.74

19

Lock Washer Serrated M6

250200041

$1.15

20

Case Ass'y with seal, 24 positions

278002824

$35.99

21

Safety Nut (DESS Switch)

278002963

$3.28

22

Starter Relay

278003012

$42.49

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

26

Fuse Box Cover

515177671

$13.62

28

Tie Wrap 368 mm

293750008

$1.04

34

Tie-Rap 180 mm

414115200

$0.11

57

Male Terminal Housing, 6 Circuits

515175662

$8.79

59

Male Terminal Housing, 4 Circuits

515175846

$8.79

60

Ground Wire

515176358

$27.99

64

Ground Wire

515177014

$17.99

66

Connector Plate

515177134

$17.30

67

Housing Plate

515177147

$20.99

72

Plate

515177347

$17.99

73

Battery Support

515177348

$31.99

76

Switch

515177394

$77.49

79

Battery Wire

515177427

$30.99

80

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

81

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

82

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

83

Switch Ass'y

515177460

$46.99

84

Fan Harness

515177646

$54.99

85

LH Housing

515178198

$284.99

90

WIRING HARNESS MAIN - Call your local BRP dealership | Grand Touring, Expedition

515177752

Unavailable

96

Visor Harness

515177837

$33.99

100

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

101

Adhesive Patch

518325560

$4.69

102

Cap

572103300

$10.49

103

Protector Cap

710000495

$10.99

104

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

110

Indicator

515177912

$549.99

110a

Speedometer Button | XTP

415129355

$15.80

110b

Gauge Ring

415129370

$11.49

110c

Lens | XTP

415129349

$24.49

111

Key

860201162

$70.99

112

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

112a

Battery Bolt Kit

250000282

$7.29

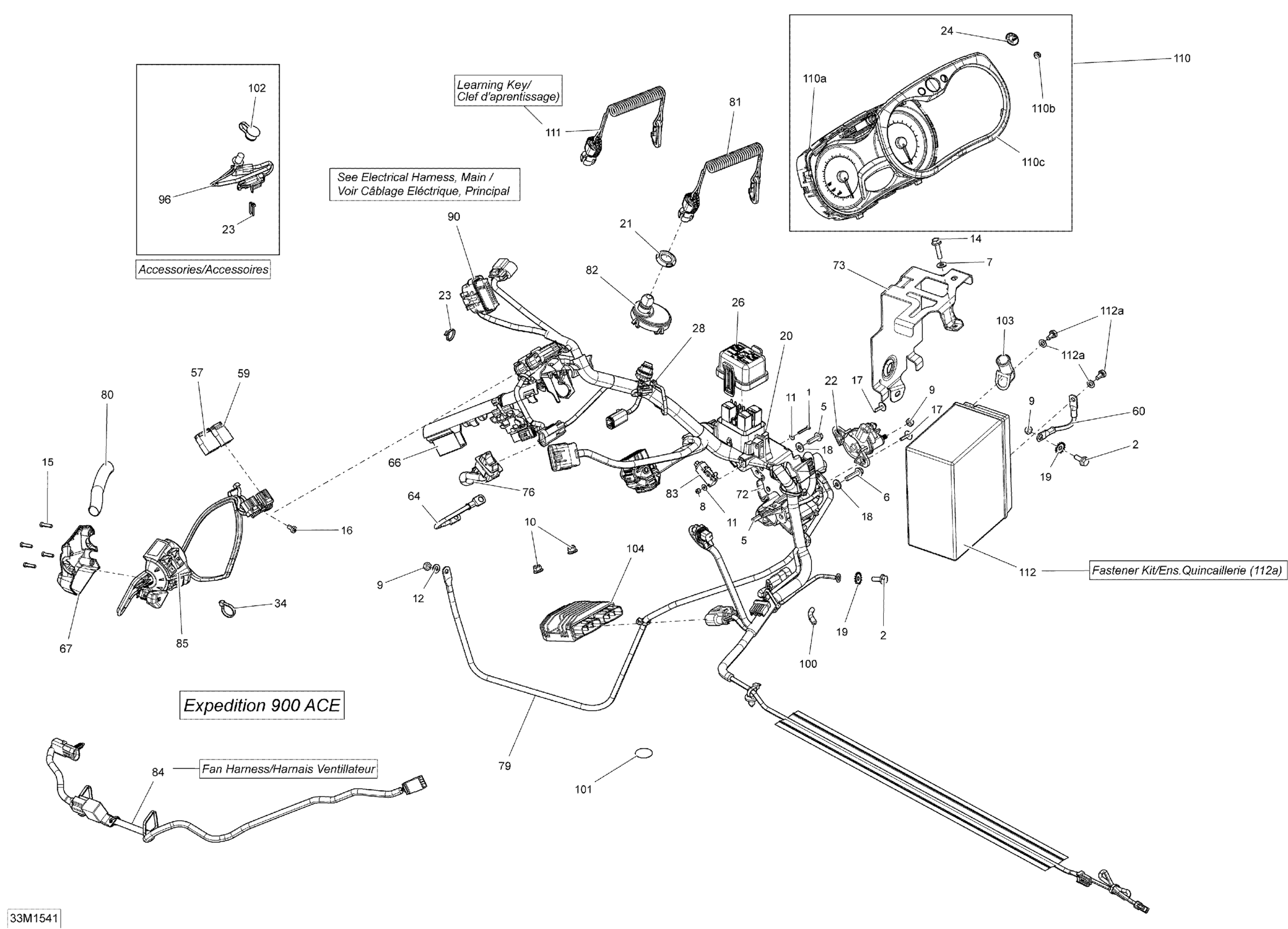

Ski-Doo Expedition Sport 900ACE XS154, 2015 10- Electrical System _33M1541 Diagram
