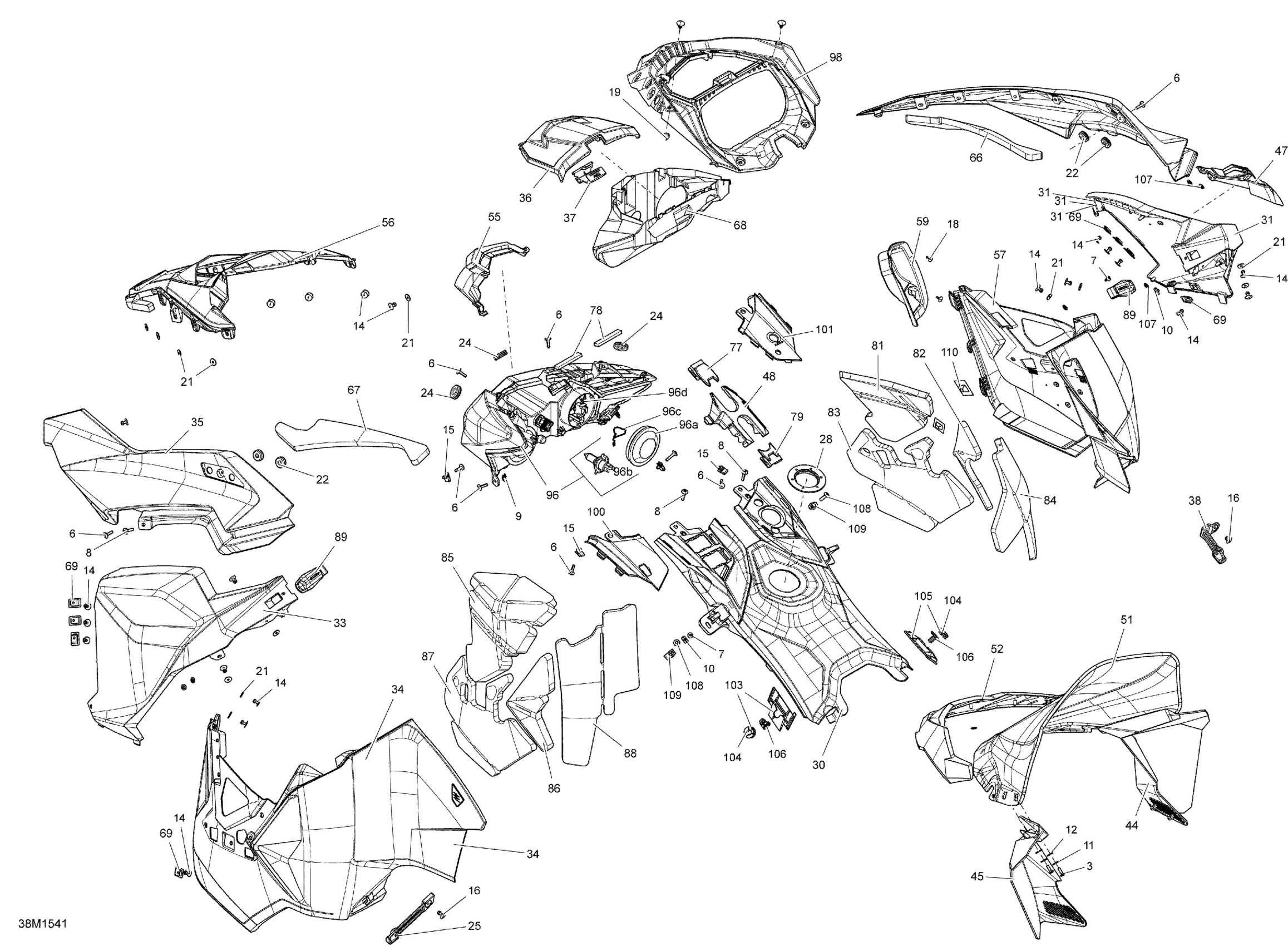

Ski-Doo Expedition Sport 900ACE XS154, 2015 Hood _38M1541 Diagram

#

Description
Price

3

Torx Screw K50 X 16

250000720

$1.60

6

Torx Screw M5 X 20

250000528

$2.00

7

Hexalob Screw M4 X 10

250000565

$2.00

8

Torx Screw M5 X 26

250000587

$4.15

9

Jack Nut M5

250100035

$5.85

10

Weld Nut M4

250100156

$4.12

11

Rubber Washer 5 mm

250200024

$2.03

12

Washer M5

250200025

$0.70

14

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

15

Panel Nut M5 X 0.8

250000958

$4.00

16

Pop Rivet 3/16”

293150108

$1.19

18

Screw M4 X 16

250000725

$3.30

19

Rubber Bumper

293830005

$6.12

21

Washer

517124300

$0.18

22

Grommet

517302841

$2.55

24

Grommet

517303756

$3.61

25

LH Panel Latch

517303808

$9.61

28

Console Nut

517304518

$13.37

30

White, Rear Console

517305557

$211.91

31

White, RH Panel

517305400

$188.03

33

White, LH Panel

517305407

$192.51

34

Black, LH Flashing Panel

517304805

$167.88

35

Bright White, RH Hood

517305284

$192.51

35

Bright White, LH Hood

517305285

$197.73

36

Deep Black, Upper Storage Access Cover

517304912

$14.90

37

Cover Latch

517304917

$9.93

38

RH Panel Latch

517304919

$13.79

44

RH Air Deflector, Black 63% Transm.

517304928

$32.81

45

LH Air Deflector, Black 63% Transm.

517304929

$40.27

47

Deep Black, RH Panel Vent Grid

517304935

$28.33

48

Deep Black, Console Support

517304970

$11.10

51

Windshield 450mm

860200928

$158.18

52

Windshield Support Long, Yellow 2000

860200944

$39.52

55

Headlight Trim Cap

517305010

$34.30

56

Deep Black Center Hood

517305011

$192.51

57

Black, RH Panel Trim

517305058

$222.36

59

Deep Black RH Console

517305061

$26.84

66

RH Rear Hood Foam

517305090

$12.31

67

LH Rear Hood Foam

517305091

$12.31

68

Deep Black, Trunk

517305095

$17.88

69

Rivet Plate

517305109

$4.52

77

Deep Black, Support Console Cap

517305148

$4.52

78

Seal Joint

517305157

$2.21

79

Deep Black, Support Console Cap

517305180

Unavailable

81

RH Foam Upper

517305196

$28.33

82

RH Foam Central

517305197

$12.31

83

RH Foam Lower

517305198

$26.09

84

RH Foam Rear

517305199

$17.88

85

LH Upper Panel Foam

517305200

$17.88

86

LH Center Panel Foam

517305201

$11.10

87

LH Lower Panel Foam

517305202

$17.88

88

LH Rear Panel Foam

517305203

$17.88

89

Panel Latch

517305279

$14.40

96

Headlamp

517306180

$226.09

96a

Cap

219400070

$16.39

96b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

96c

Holder Bracket

219800282

$5.33

96d

Spring

219800281

$3.13

98

Deep Black, Indicator Support

517305511

$54.45

100

Deep Black LH Front Console

517305513

$29.07

101

CONSOLE FR B-160 - Call your local BRP dealership

517305548

Unavailable

103

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.31

104

Ring

517305723

$3.21

105

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.31

106

Pin

517305734

$3.30

107

Push Nut

732610072

$1.97

107

Push Nut

250100158

$2.00

108

Torx Truss Screw M6 X 20

250000705

$2.00

109

Panel Nut M6 X 1.0

250100198

$1.99

110

Heat Shield | Europe

517305451

$2.12
