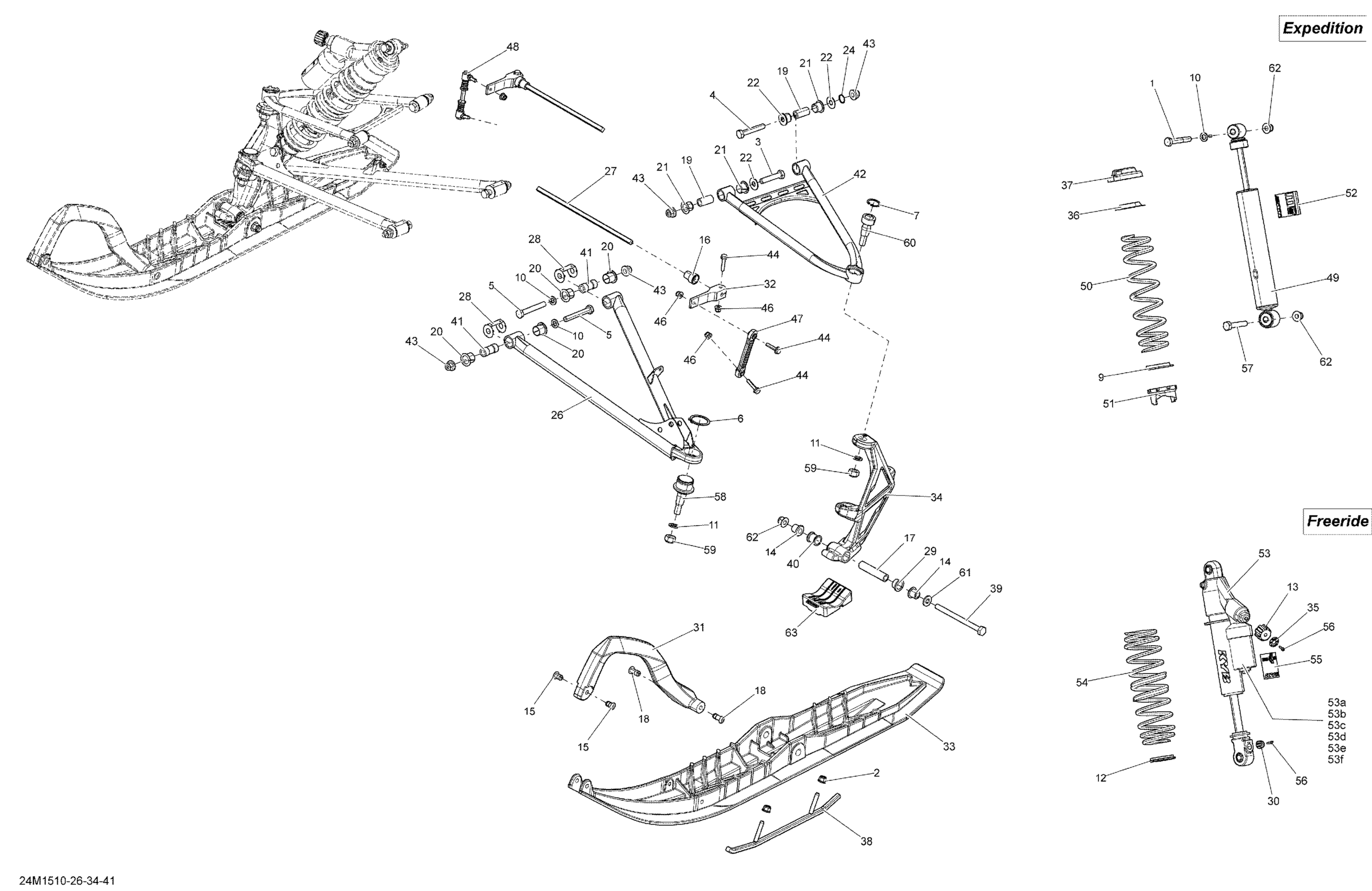

Ski-Doo Expedition Sport 900ACE XS154, 2015 07- Front Suspension And Ski _24M1541 Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

2

Hex. Flange Elastic Nut M8

233281414

$1.47

3

Screw Hex. M10 X 50

250001022

$1.69

4

Screw Hex. M10 X 60

250001023

$2.11

5

Screw Hex. M10 X 70

250001024

$2.11

6

Circlip

293370035

$2.64

7

Circlip

293370070

$8.99

9

Spring Guide

503187500

$10.49

10

Washer

503189564

$0.74

11

Washer

503192491

$4.54

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Ski Bushing

505071781

$16.18

15

Retainer 17mm long

505071812

$5.95

16

Bushing

505072064

$2.32

17

Spacer

506133300

$23.99

18

Retainer 23mm Long

505072133

$6.78

19

Sleeve

505072143

$9.00

20

Bushing

505072208

$3.28

21

Bushing

505072250

$3.28

22

Washer

505072392

$4.76

24

O-Ring

505072448

$2.32

26

Black, RH Lower Arm

505072497

$204.99

26

Black, LH Lower Arm

505072498

$204.99

27

Stabilisator

505072602

$68.99

28

Wear Plate

505072634

$6.29

29

Leg Bushing

505072690

$12.49

30

Not Available As Spare Parts

XXX

Unavailable

31

Black, Handle

505072976

$35.99

32

Stabilisator Lever

505072394

$18.73

33

Black, Ski

505073227

$179.99

34

White, LH Ski Leg

505073559

$249.99

34

White, RH Ski Leg

505073560

$249.99

35

Not Available As Spare Parts

XXX

Unavailable

36

Cap

706200785

$4.69

37

Spring Stopper

706200881

$12.99

38

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

39

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

40

Spacer

503193651

$9.69

41

Sleeve

505072209

$17.84

42

LH Upper Arm 39"

505073468

$154.99

42

RH Upper Arm 39"

505073469

$154.99

43

Hex. Flange Elastic Nut M10

250100165

$0.85

44

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

46

Hex. Flange Elastic Nut M6

233261466

$2.00

47

Sway Bar Double Joint Link

505072204

$21.99

48

Not Available As Spare Parts

XXX

Unavailable

49

Front Shock

505073181

$164.49

49

Front Shock | Europe Models

505073139

$248.99

50

Full Moon Spring | Europe Models

505072518

$67.99

51

Adjustment Cam

505073625

$12.99

52

Shock Decal "HPG" | Europe Models

516005533

$14.99

52

Shock Decal "Mc"

516005535

$12.99

53

Not Available As Spare Parts

XXX

Unavailable

53a

Not Available As Spare Parts

XXX

Unavailable

53b

Not Available As Spare Parts

XXX

Unavailable

53c

Not Available As Spare Parts

XXX

Unavailable

53d

Not Available As Spare Parts

XXX

Unavailable

53e

Not Available As Spare Parts

XXX

Unavailable

53f

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Hex Screw M10 X 1.5 X 55

207005554

$7.51

58

Ball Joint

505073636

$51.99

59

Hex Elastic Nut M12 X 1.25

232521464

$2.11

60

Upper Ball Joint

505072913

$72.99

61

Washer

503192496

$0.77

62

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

63

Ski Stopper

505072594

$18.49
