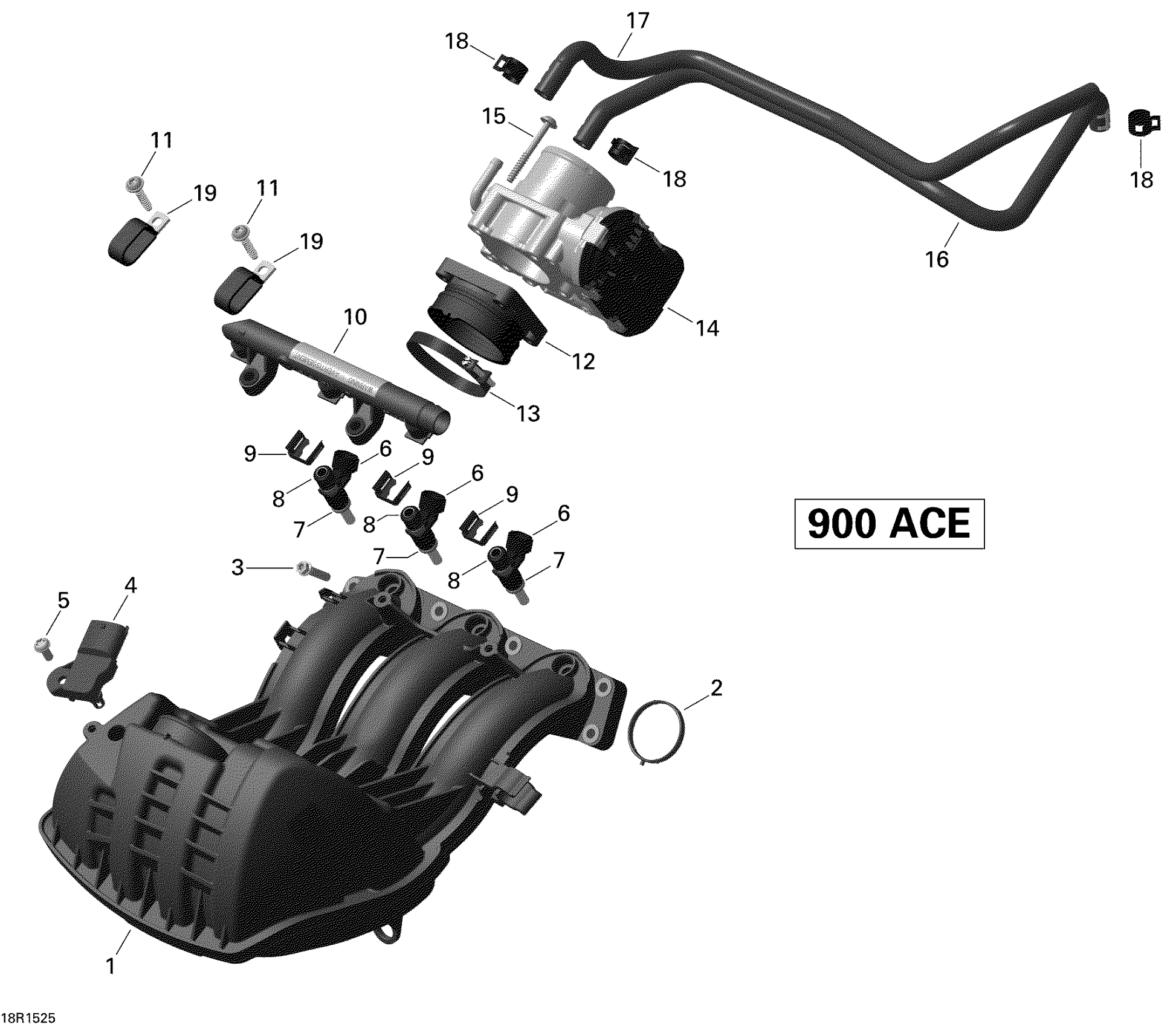

Ski-Doo Expedition Sport 900ACE XS154, 2015 Air Intake Manifold And Throttle Body _18R1525 Diagram

Description

Price

Air Intake Manifold Ass'y | Includes 1 to 2

420867340

Unavailable

Gasket | Included in gasket kit

420431662

$7.87

Torx Flange Screw M6 X 30

420440647

$1.97

Pressure And Temperature Sensor

707000995

$70.82

Torx Flange Screw M6 X 16

420641588

$1.74

Injection Valve Ass'y | Includes 18 to 20

420874847

$114.37

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

Injector Clip

420853030

$2.46

Fuel Rail

420874965

$13.51

Torx Screw 6X30

420441575

$2.54

Intake Neck

420867110

$35.35

Hose Clamp

420251830

$13.51

Throttle Body

420893148

$365.35

Torx Flange Screw M6 X 50

420441588

$3.61

Molded Hose

420201505

$29.97

Molded Hose

420201500

$24.58

Clamp

420853511

$7.31

Double Clamp

420951830

$12.52
