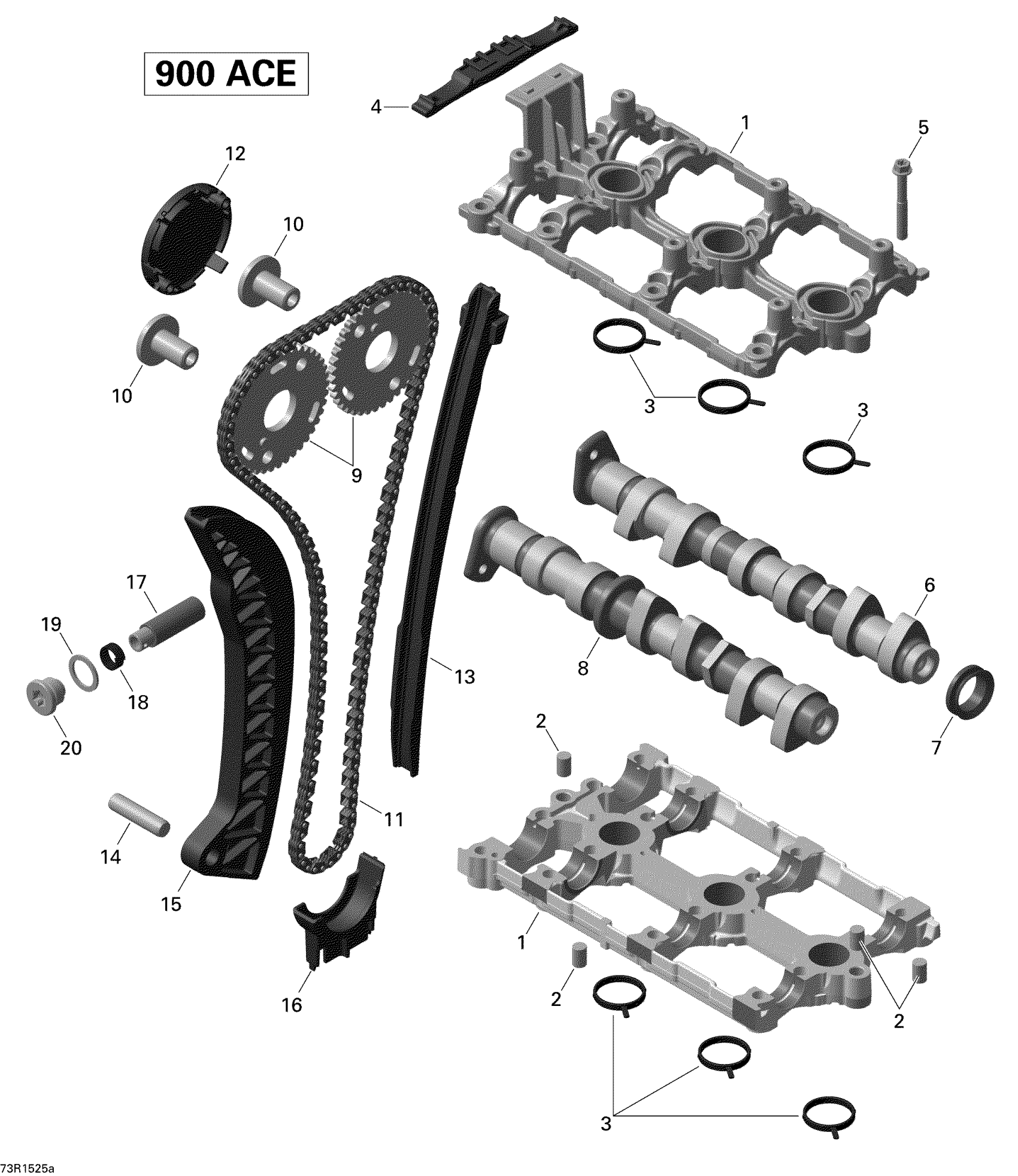

Ski-Doo Expedition Sport 900ACE XS154, 2015 Valve Train _73R1525a Diagram

#

Description
Price

1

Camshaft Housing Ass'y

420911475

$217.49

2

Center Pin 8 X 12

420632010

$4.01

3

Camshaft Housing Gasket

420431760

$3.17

4

Chain Guide, Upper

420936500

$4.44

5

Torx Flange Screw M6 X 45

420440324

$0.98

6

Camshaft Exhaust

420820210

$184.99

7

V-Ring

420630127

$7.65

8

Camshaft Intake

420820200

$179.99

9

Camshaft Sprocket, 40 Teeth

420855120

$20.99

10

Flat Head Screw M14 X 1.5

420441360

$22.49

11

Camshaft Chain

420297086

$74.99

12

Cover

420460920

$5.39

13

Chain Guide

420936010

$11.60

14

Needle Pin

420929937

$7.65

15

Chain Tension Guide

420936020

$14.22

16

Chain Guide

420936510

$7.65

17

Chain Tensioner

420236395

$47.49

18

Compression Spring

420238732

$5.89

19

O-Ring

420430622

$4.44

20

Plug Screw

420840591

$8.57
