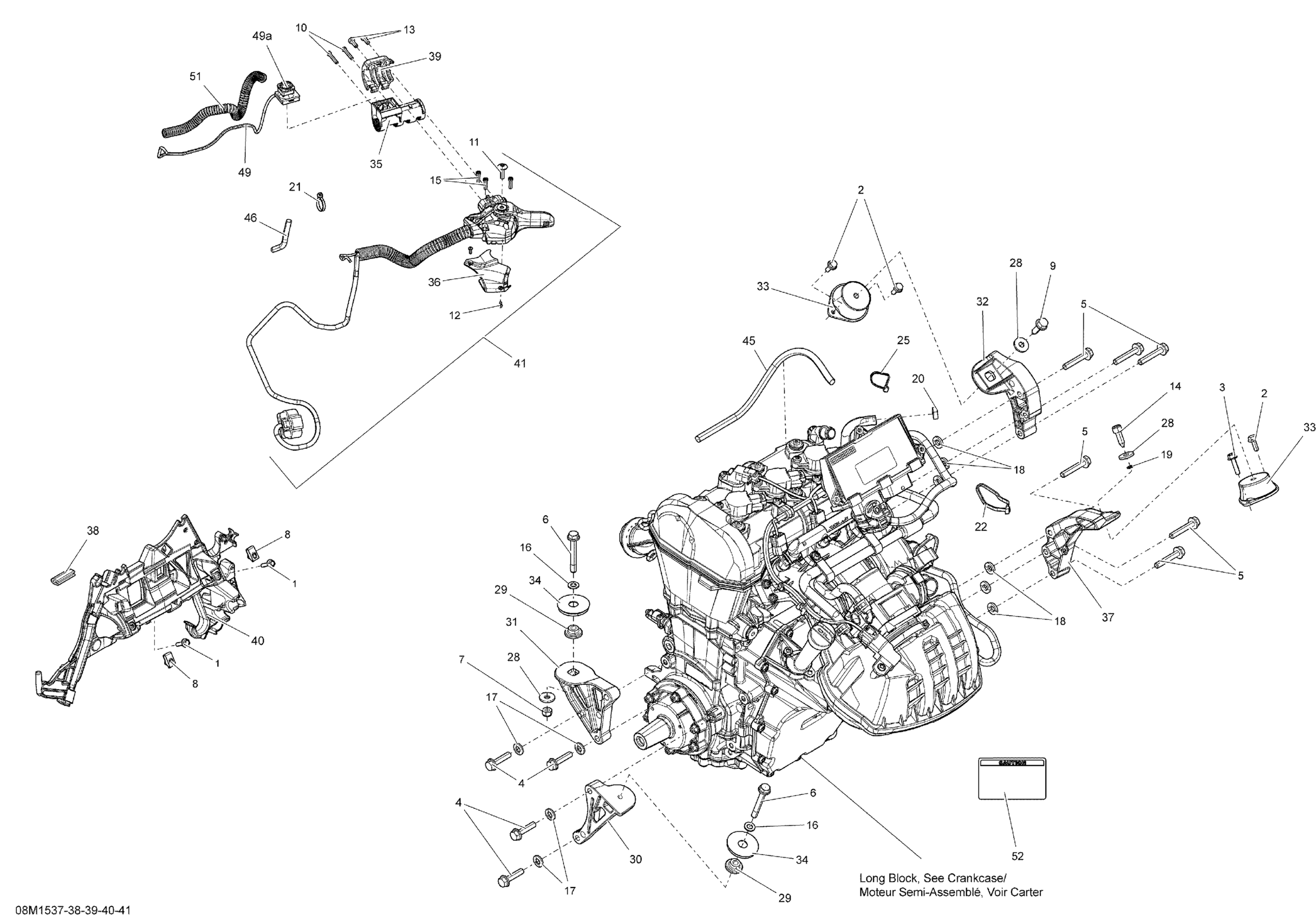

Ski-Doo Expedition Sport 900ACE XS154, 2015 01- Engine _08M1541 Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

4

Hex. Flange Screw M8 X 35

250000986

$2.11

5

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

6

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Panel Nut M5 X 0.8

250000958

$4.23

9

Cone Screw, M8 X 30

250000257

$1.89

10

Torx Screw #8-18

250000263

$1.04

11

Torx Screw M5 X 20

250000528

$2.11

12

Torx Screw M2.9 x 9.5

250000623

$3.17

13

Torx Screw M5 X 14

250000632

$7.51

14

Cone Screw, M8 X 25

250000639

$12.49

15

Torx Screw

250000671

$1.01

16

Flat Washer With Teflon 8 mm

250200008

$3.80

17

Conical Spring Washer M8

250200146

$1.01

18

Conical Spring Washer M8

250200157

$2.11

19

O-Ring

293300123

$1.03

20

Oetiker Gear Clamp

293650025

$3.09

21

Tie Wrap 142 mm

293750002

$1.25

22

Tie Wrap 368 mm

293750008

$1.04

25

Tie-Rap 180 mm

414115200

$0.11

28

Yellow, Washer

503183200

$3.19

29

Spacer

512060285

$19.99

30

Rear Support PTO

512061139

$24.99

31

Front Support PTO

512061140

$20.99

32

Front Support, MAG

512060663

$19.99

33

Rubber Mount

512060729

$65.99

34

Engine Stopper

512061536

$21.99

35

Switch Support

512061453

$9.28

36

Cap

512060862

$13.49

37

Rear Support MAG

512061142

$28.99

38

Was 271000110 Protection Trim

219704353

$15.99

39

Front Housing

512060987

$8.57

40

Module Support

512060994

$16.33

41

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

41a

Handle Ass'y kit

415130047

$104.99

45

Protector Tube

512061067

$23.49

46

PROTECTOR TUBE 25 MM - 210 MM - Call your local BRP dealership

219702532

Unavailable

49

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

49a

Male Terminal

515175232

$1.58

51

Protector Tube

515177716

$4.55

52

Caution Decal, Oil Level

516005521

Unavailable
