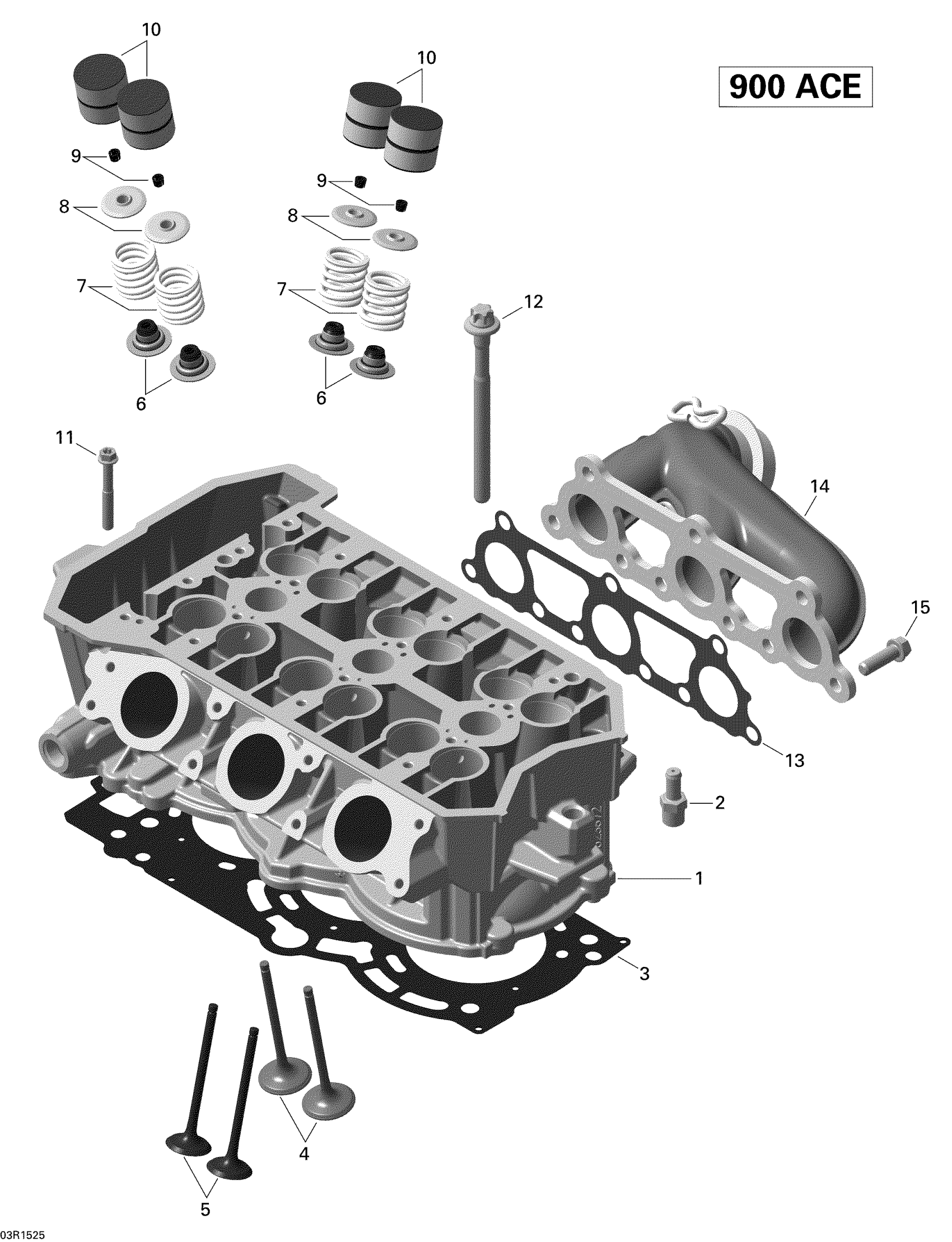

Ski-Doo Expedition Sport 900ACE XS154, 2015 Cylinder Head _03R1525 Diagram

#

Description

Price

1

Cylinder Head Ass'y

420213265

$830.49

2

Hose Nipple

420441420

$14.22

3

Cylinder Head Gasket

420431813

$45.49

4

Intake Valve 29MM

420855131

$22.49

5

Exhaust Valve 25MM This part replaces 420855141.

420855144

$41.49

6

Valve Stem Seal

420431671

$5.39

7

Valve Spring

420939540

$7.51

8

Valve Spring Retainer

420855150

$4.44

9

Cotter Valve

420254630

$1.01

10

Valve Lifter Bucket

420855165

$46.49

11

Torx Flange Screw M6 X 45

420440324

$0.98

12

Torx Flange Screw M9 X 113

420940945

$13.70

13

Gasket | Included in gasket kit

420431850

$15.89

14

Exhaust Manifold

420673490

$419.99

15

Torx Flange Screw M8 X 25

420440372

$4.12
