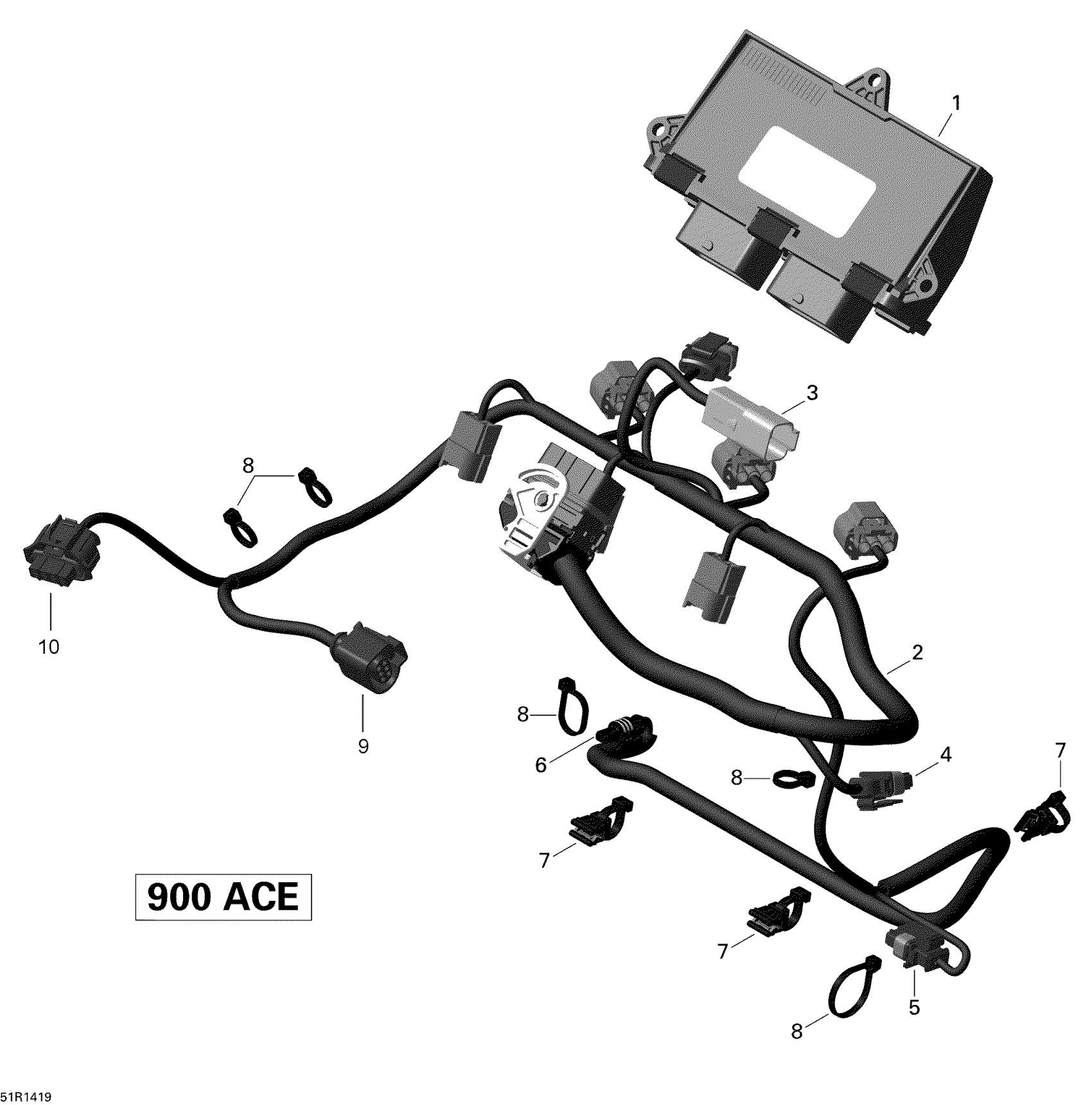

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 Engine Harness And Electronic Module Diagram

#

Description

Price

1

ECM, Engine Control Module | Except Renegade Enduro

420666934

$812.28

2

Wiring Harness Ass'y

420264420

$277.66

3

Female Housing, 4 Circuits

278000635

$14.02

4

Male Housing, 2 Circuits

278001005

$15.57

5

Male Housing, 2 Circuits

278001005

$15.57

6

Male Housing, 1 Circuit

278001012

$12.65

7

Cable Clamp 150mm

420951650

$3.55

8

Tie Rap

420866714

$1.56

9

Female Housing

515177406

$31.82

9a

Terminal | Except Package PRO, Except 6X6

415130049

$8.57

9b

SEAL-WIRE - Call your local BRP dealership

710001186

Unavailable

10

Male Connector

515176410

$51.97

10a

Female Terminal

710001137

$3.73

10b

Wire Seal

710001135

$4.60
