Description

Price

9

Hex Screw M3 X 20

207132044

$2.11

11

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Screw M6 X 20

210262040

$2.11

14

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

15

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

16

Flat Washer

224061121

$0.53

17

Elastic Stop Nut M3

232531423

$0.55

18

Elastic Stop Nut M6

232561414

$0.55

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Flat Washer M3, Stainless

234032600

$0.55

21

Flat Washer 6 mm

234061410

$1.36

22

External Serrated Lock Washer 6 mm

234461608

$1.15

23

Screw M4 X 16

250000725

$3.49

26

Hex. Flange Screw M6 X 25

250000793

$2.11

28

Torx Screw

250000671

$1.01

29

Pan Screw Forming, 7500C

250000690

$2.11

30

Flat Washer

250200039

$0.74

31

Lock Washer Serrated M6

250200041

$1.15

39

Case Ass'y with seal, 24 positions

278002824

$35.99

40

Safety Nut (DESS Switch)

278002963

$3.28

41

Starter Relay

278003012

$42.49

48

Tie Wrap 368 mm

293750008

$1.04

60

Tie-Rap 180 mm

414115200

$0.11

84

Male Terminal Housing, 6 Circuits

515175662

$8.79

92

Male Terminal Housing, 4 Circuits

515175846

$8.79

100

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

105

Ground Wire

515177014

$17.99

110

DESS

515178284

$84.99

114

Connector Plate

515177134

$17.30

115

Housing Plate

515177147

$20.99

119

Visor Harness

515177837

$33.99

125

DESS Switch

515177249

$114.99

135

Plate

515177347

$17.99

136

Battery Support

515177348

$31.99

137

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

149

Switch

515177394

$77.49

157

Battery Wire

515177427

$30.99

164

Fuse Box Cover

515177671

$13.62

165

Switch Ass'y

515177460

$46.99

167

DESS CAP (LEARNING KEY) - Call your local BRP dealership

860200907

Unavailable

168

GROUND WIRE - Call your local BRP dealership

515177500

Unavailable

170

Indicator

515177912

$549.99

171

WIRING HARNESS_CHASSIS - Call your local BRP dealership

515177591

Unavailable

208

Start/RER Button

515176088

$20.99

211

LH Housing

515178198

$284.99

214

Fan Harness

515177646

$54.99

216

Adhesive Patch

518325560

$4.69

217

Cap

572103300

$10.49

225

Protector Cap

710000495

$10.99

240

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

170a

Lens | XTP

415129349

$24.49

170b

Speedometer Button | XTP

415129355

$15.80

170c

Gauge Ring

415129370

$11.49

99a

Battery Bolt Kit

250000282

$7.29

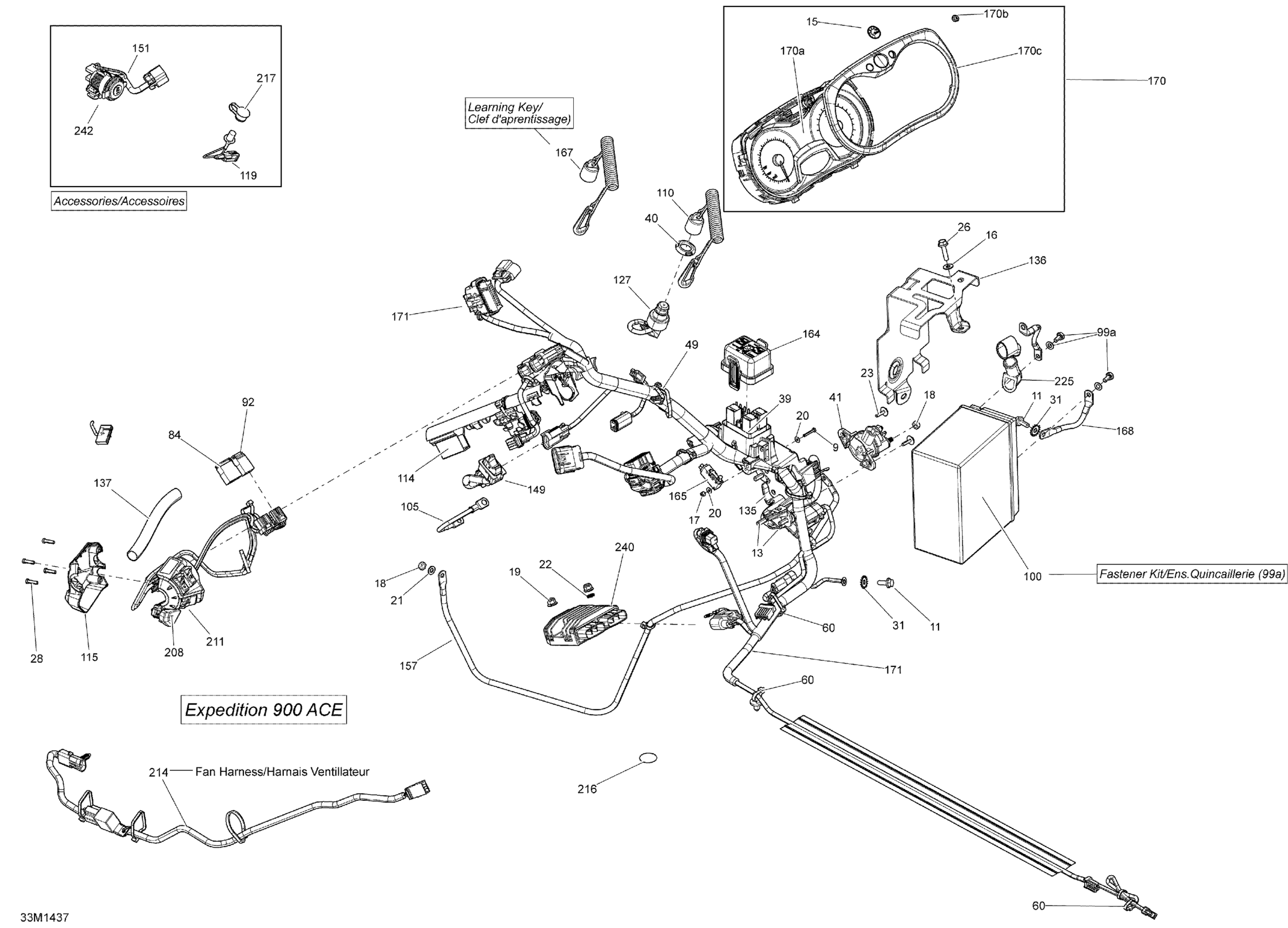

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 10- Electrical System Diagram

Hex Screw M3 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Forming Screw M6 X 25

BRP Logo 20MM x 2MM | XTP

Flat Washer

Elastic Stop Nut M3

Elastic Stop Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer M3, Stainless

Flat Washer 6 mm

External Serrated Lock Washer 6 mm

Screw M4 X 16

Hex. Flange Screw M6 X 25

Torx Screw

Pan Screw Forming, 7500C

Flat Washer

Lock Washer Serrated M6

Case Ass'y with seal, 24 positions

Safety Nut (DESS Switch)

Starter Relay

Tie Wrap 368 mm

Tie-Rap 180 mm

Male Terminal Housing, 6 Circuits

Male Terminal Housing, 4 Circuits

Lead Battery 18 Amperes | Includes 4327 to 4327a

Ground Wire

DESS

Connector Plate

Housing Plate

Visor Harness

DESS Switch

Plate

Battery Support

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

Switch

Battery Wire

Fuse Box Cover

Switch Ass'y

DESS CAP (LEARNING KEY) - Call your local BRP dealership

GROUND WIRE - Call your local BRP dealership

Indicator

WIRING HARNESS_CHASSIS - Call your local BRP dealership

Start/RER Button

LH Housing

Fan Harness

Adhesive Patch

Cap

Protector Cap

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Lens | XTP

Speedometer Button | XTP

Gauge Ring

Battery Bolt Kit
