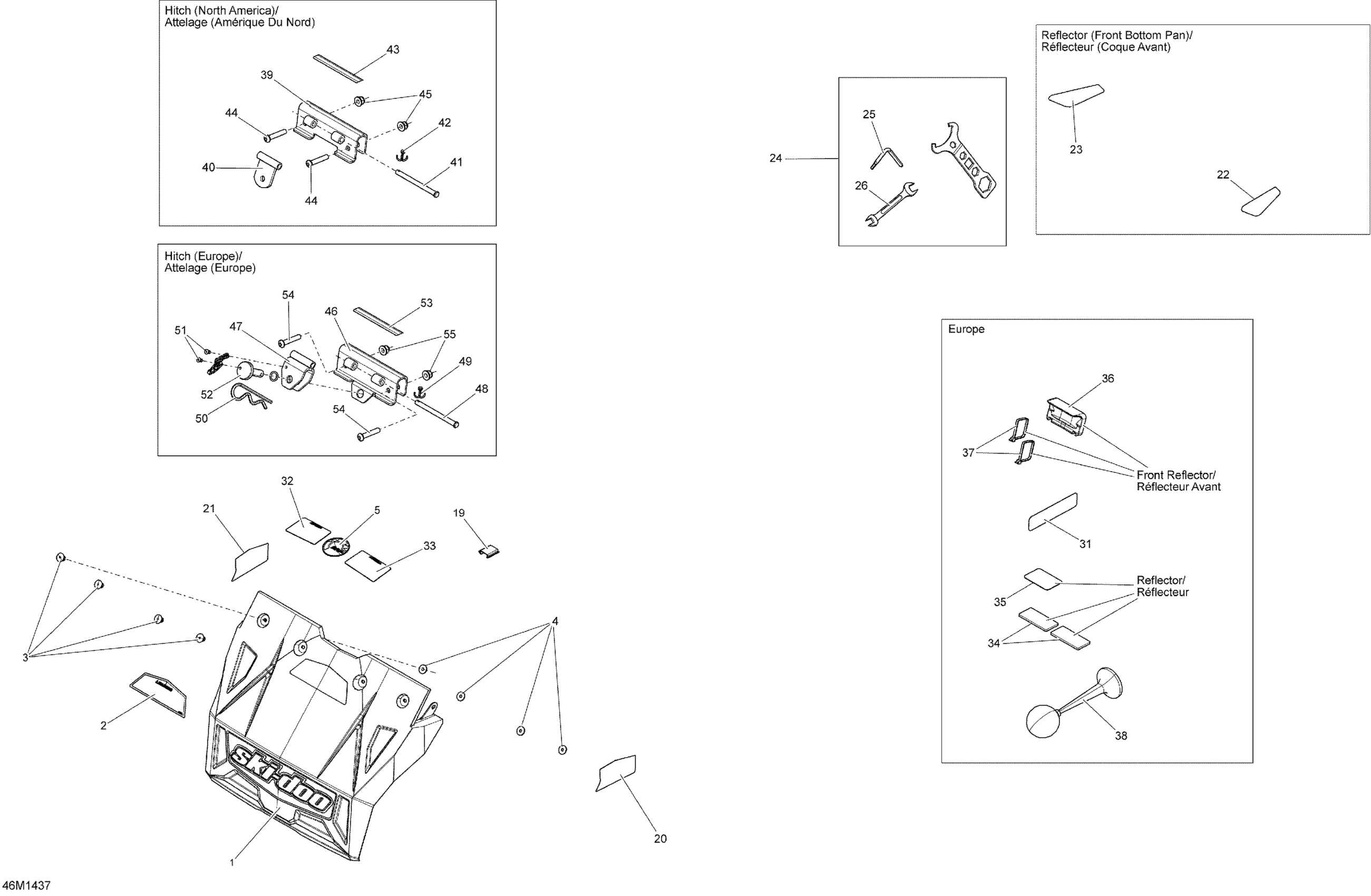

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 09- Utilities Diagram

#

Description
Price

1

Snow Guard

520001340

$137.49

2

Warning Decal, Track

516005175

Unavailable

3

Pop Rivet 3/16”

293150101

$2.09

4

Washer

517124300

$0.19

5

BRP Logo 48 mm

219903947

$17.49

19

Radiator Trim

520000829

$21.99

20

Red, RH Rear Reflector

520000881

$16.99

20

Yellow, RH Rear Reflector

520000883

$16.99

21

Red, LH Rear Reflector

520000880

$16.99

21

Yellow, LH Rear Reflector

520000882

$16.99

22

Yellow, RH Front Reflector

520001237

$23.99

23

Yellow, LH Front Reflector

520001236

$23.99

24

Tools Kit

520001591

$50.99

25

Spacing Tool

520001142

$10.52

26

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

31

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

32

LH Warning Decal, Safety

516006431

Unavailable

33

RH Warning Decal, Safety

516005587

Unavailable

34

Amber, Reflector

520000271

$19.99

35

White, Reflector

415037900

$22.99

36

Deep Black, Reflector Support

520000871

$5.79

37

Tie Rap 371 mm

293750018

$0.56

38

Horn

549011291

$35.99

39

Support

511000768

$31.99

40

Hitch Plate Welded

511000521

$16.33

41

Lock Pin

511001451

$9.49

42

Cotter Pin

371800200

$0.53

43

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

44

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

45

Elastic Flange Nut M8

233281466

$1.01

46

Support

511000554

$19.49

47

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

48

Lock Pin

511001451

$9.49

49

Cotter Pin

371800200

$0.53

50

Hair Pin

114045200

$11.11

51

Pop Rivet 5/32” | Model Europe

390404300

$0.35

52

Pin

511000555

$19.49

53

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

54

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

55

Hex. Flange Elastic Nut M8

233281414

$1.47
