Description

Price

8

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

9

Hex. Flange Screw, Scotch Grip

207584034

$2.11

10

Hex. Flange Screw M6 X 16

207661644

$0.74

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Hex. Flange Screw M6 X 25

207662544

$0.64

12

Hex. Flange Screw M6 X 25

207662544

$0.64

13

Hex. Flange Screw M6 X 16

210261650

$1.67

14

Not Available As Spare Parts

XXX

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Elastic Flange Nut M6 X 1.0

233261416

$2.11

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Conical Spring Washer M8

234281474

$1.48

21

Panel Nut M5 X 0.8

250000958

$4.23

22

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

23

Torx Truss Screw M6 X 12

250000767

$2.00

24

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

25

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

33

Clinch Stud M6 X 30

250300031

$2.09

34

Clinch Stud

250300038

$4.29

35

Insert

293450275

$12.99

37

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

39

Not Available As Spare Parts

XXX

Unavailable

40

Hemlock Rivet, 6.5 mm

293150119

$4.29

41

Hemlock Rivet 6.5 mm

293150120

$7.41

45

Stavex Rivet

293150144

$0.82

49

Henrob Rivet

293150146

$2.09

60

Hemlock Rivet, 6.4 mm

293150174

$7.86

61

Monobolt Rivet 6.4

293150182

$3.09

63

Monobolt Rivet, 4.8 mm

293150191

$0.99

71

Insert M5 X 0.8

293450268

$2.09

72

Full Moon Dart 8 mm

293730041

$2.21

73

Full Moon Dart 5 mm

293730042

$2.21

74

Full Moon Dart 10 mm

293730059

$4.55

79

Pop Rivet 3/16"

390402400

$0.35

88

Avex Rivet

390909100

$0.30

89

Avex Rivet

390909200

$0.30

94

Leg Cushion

505073317

$8.66

95

Front Radiator Ass'y | Includes 10a to 10b

518327907

$529.99

99

Vibration Damper

512061516

$61.99

102

Washer

517124300

$0.19

110

Not Available As Spare Parts

XXX

Unavailable

112

RH Roller

518328098

$194.99

112

LH Roller

518328099

$194.99

118

Adhesive Patch

518325560

$4.69

120

Not Available As Spare Parts

XXX

Unavailable

122

Clear Rear Bumper

518325579

$111.49

126

Rear Member

518326559

$264.99

128

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

133

RH Rear Base

518325973

$21.99

133

LH Rear Base | Includes 10v to 10x

518325974

$21.99

136

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

139

Front Member

518326198

$64.99

147

Engine Support

518326178

$64.49

150

RH Side Member

518326328

$284.99

151

LH Side Member

518326330

$284.99

153

Center Column Support

518326355

$22.49

158

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

159

Not Available As Spare Parts

XXX

Unavailable

160

Not Available As Spare Parts

XXX

Unavailable

161

Seal

518326656

$9.19

176

LH Stirup

518327937

$169.49

177

Upper Column Support

518326848

$15.49

180

RH Reinforcement, Running Board

518326937

$27.99

181

LH Reinforcement, Running Board

518326938

$27.99

184

Not Available As Spare Parts

XXX

Unavailable

185

Not Available As Spare Parts

XXX

Unavailable

190

Not Available As Spare Parts

XXX

Unavailable

193

Front Member

518327565

$349.99

195

RH Stirup | Includes 10p to 10q

518328942

$169.49

201

Rear Cap

518327105

$22.49

203

Sub A Support

518327145

$79.99

207

E Module | Includes 10ad to 10ap

518328078

$519.99

217

Front Suspension Support

518327487

$289.99

218

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

224

RH Suspension Bracket

518327605

$45.99

225

LH Suspension Bracket

518327606

$45.99

237

FRAME 154 EXPEDITION - Call your local BRP dealership | Includes 10 to 10aw

415130266

Unavailable

251

Not Available As Spare Parts

XXX

Unavailable

252

Full Moon RH Cap

520000711

$8.79

253

Full Moon LH Cap

520000712

$9.19

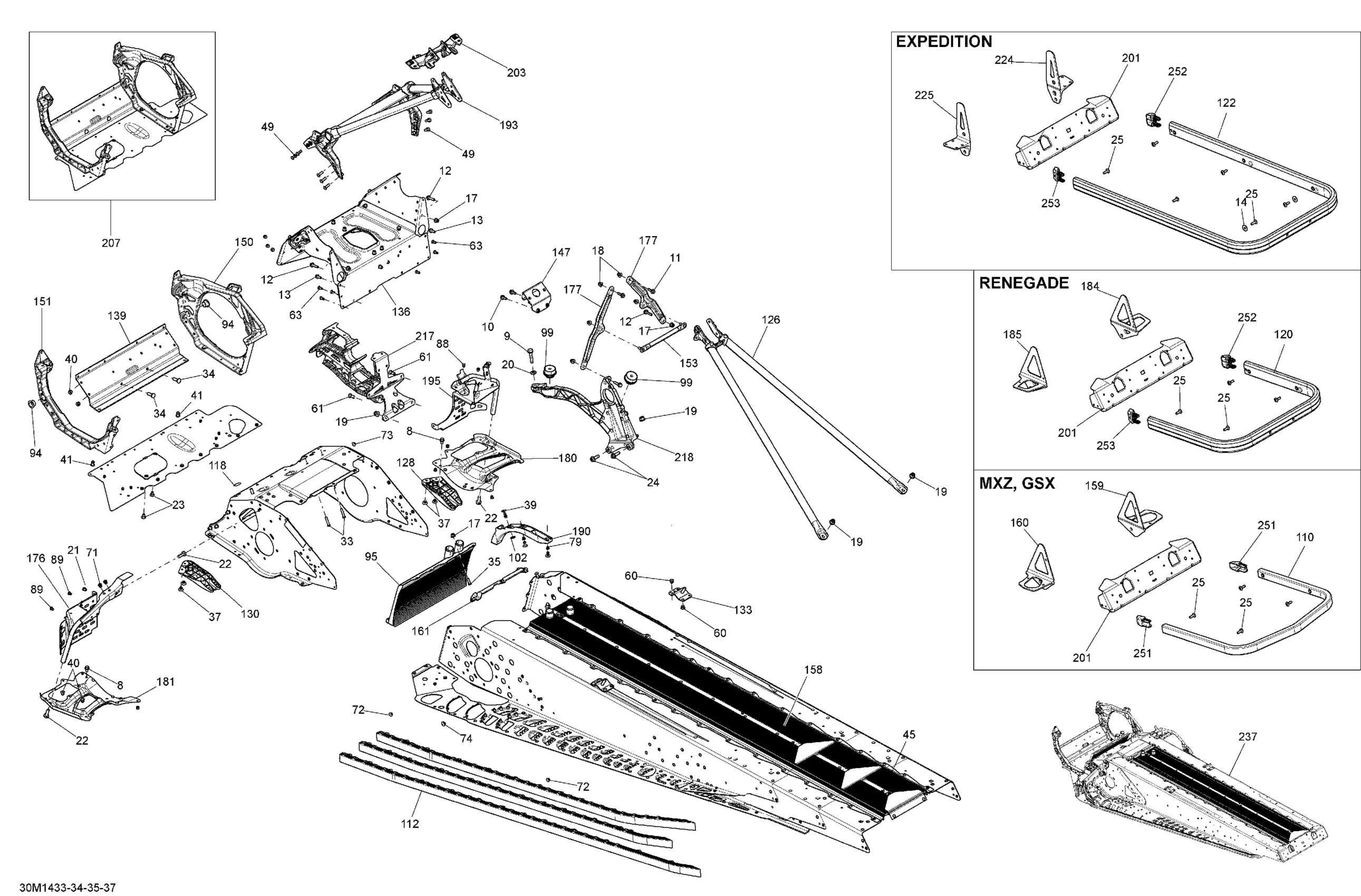

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 09- Frame 154 Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

Hex. Flange Screw, Scotch Grip

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 16

Not Available As Spare Parts

Hex. Flange Elastic Nut M6 x 1.0

Elastic Flange Nut M6 X 1.0

Hex. Flange Elastic Nut M8

Conical Spring Washer M8

Panel Nut M5 X 0.8

Torx Screw M8 X 1.25 X 25, Scotch Grip

Torx Truss Screw M6 X 12

Hex. Flange Screw M8 X 25, Nylon

Torx Screw M6 X 1.0 X 18, Scotch Grip

Clinch Stud M6 X 30

Clinch Stud

Insert

Pop Rivet 3/16" | DS 650 X

Not Available As Spare Parts

Hemlock Rivet, 6.5 mm

Hemlock Rivet 6.5 mm

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm

Monobolt Rivet 6.4

Monobolt Rivet, 4.8 mm

Insert M5 X 0.8

Full Moon Dart 8 mm

Full Moon Dart 5 mm

Full Moon Dart 10 mm

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Leg Cushion

Front Radiator Ass'y | Includes 10a to 10b

Vibration Damper

Washer

Not Available As Spare Parts

RH Roller

LH Roller

Adhesive Patch

Not Available As Spare Parts

Clear Rear Bumper

Rear Member

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

RH Rear Base

LH Rear Base | Includes 10v to 10x

Cross Member S Module | Includes 300a to 300b

Front Member

Engine Support

RH Side Member

LH Side Member

Center Column Support

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

Not Available As Spare Parts

Not Available As Spare Parts

Seal

LH Stirup

Upper Column Support

RH Reinforcement, Running Board

LH Reinforcement, Running Board

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Front Member

RH Stirup | Includes 10p to 10q

Rear Cap

Sub A Support

E Module | Includes 10ad to 10ap

Front Suspension Support

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

RH Suspension Bracket

LH Suspension Bracket

FRAME 154 EXPEDITION - Call your local BRP dealership | Includes 10 to 10aw

Not Available As Spare Parts
