Description

Price

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Panel Nut M5 X 0.8

250000958

$4.23

9

Torx Screw M5 X 26

250000587

$4.44

10

Socket Screw M5 X .80 X 16

250000652

$1.01

11

Washer M5

250200025

$0.74

13

Pop Rivet 3/16"

293150103

$0.55

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Black, Nylon Cap

414916600

$4.69

25

Black Front Bottom Pan

502007172

$104.99

27

Black LH Bottom Pan

502007175

$92.99

31

Black - RH Side Bottom Pan Panel

502007306

$58.99

32

DEEP BLACK, LH SIDE BOTTOM PAN PANEL - Call your local BRP dealership

502007371

Unavailable

39

Black Bottom Pan Cap

502007173

$67.99

41

RH Bottom Pan Cap Foam

502007263

$15.99

42

LH Bottom Pan Cap Foam

502007264

$15.99

43

Black Front Bumper

502007281

$137.99

44

Black RH Bottom Pan

502007340

$92.99

45

Washer

517124300

$0.19

47

Rivet Plate

517305109

$4.99

50

Stopper Bumper

517305280

$18.99

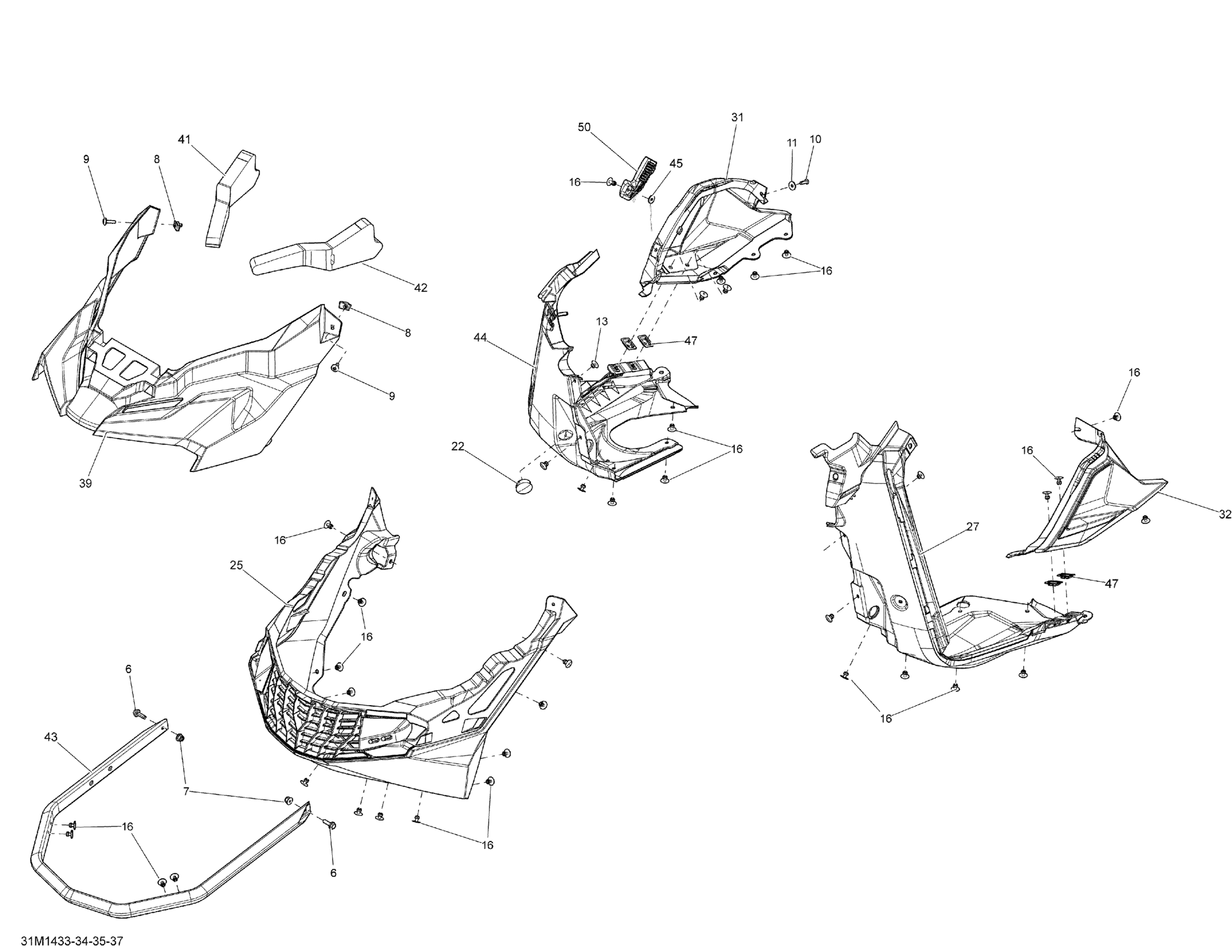

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 09- Bottom Pan Diagram
