Description

Price

3

Hair Pin

114045200

$11.11

4

Socket Screw M5 X 25

205052544

$1.68

5

Hex. Cap Screw M8 X 75

207287544

$5.18

6

Elastic Stop Nut M5

232551414

$0.87

7

Flat Washer M5

234051410

$0.53

8

Torx Screw M5 X 14

250000742

$1.47

9

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

10

Torx Screw M6 X 30

250000580

$6.08

11

Lock Washer 8 mm

250200009

$2.11

13

Spring Pin M3 X 30

250400063

$2.11

15

Pop Rivet 3/16"

293150103

$0.55

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

O-Ring

293300185

$0.98

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Circlip

293370037

$3.19

25

Circlip

293370049

$4.99

26

Circlip

293370065

$0.98

28

Avex Rivet

390909100

$0.30

29

Avex Rivet

390909200

$0.30

32

Pulley Roller

417127016

$24.49

33

Washer

417127155

$8.26

34

Calibration Ass'y

415129604

$21.49

37

Cam Ass'y | Includes 100c to 100c2

417127327

$159.49

39

SPRING RELEASE - Call your local BRP dealership

417127434

Unavailable

41

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$349.99

43

Pivot Stud

417127294

$14.49

44

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

47

Bushing

417222758

$22.49

48

Stopper Washer

417223660

$3.17

49

Roller Axle

417223257

$6.99

51

Rampe 735

417223679

$38.99

53

Ramp Axle

417223694

$11.05

54

Clutch Spring

417224085

$17.39

55

Seat Spring

417223752

$15.27

56

Roller

417223767

$11.59

58

Flange Slide Ass'y

417224044

$294.99

60

Governor Cup Ass'y

417223865

$274.99

62

Fixed Flange Ass'y

417224091

$309.99

64

Spring Cover Ass'y

417223650

$44.99

66

Slider Shoe

417223919

$6.83

67

Spacer

417300252

$5.49

68

Spacer

417300265

$2.29

69

Not Available As Spare Parts

XXX

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

71

Not Available As Spare Parts

XXX

Unavailable

72

Guide

417300381

$11.99

73

Belt Guard

417300382

$90.99

74

Drive Belt

417300551

$179.99

75

Reinforcement Plate

417300421

$4.39

76

Front Bracket

417300423

$7.29

77

Front Support

417300430

$14.49

79

CVT Air Duct Pulley

417300440

$28.99

80

Stopper

417300445

$10.49

81

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

82

Not Available As Spare Parts

XXX

Unavailable

84

Safety Belt Guard Decal

516005509

Unavailable

86

Flat Washer

517225900

$0.18

87

Strength Washer

517302322

$12.63

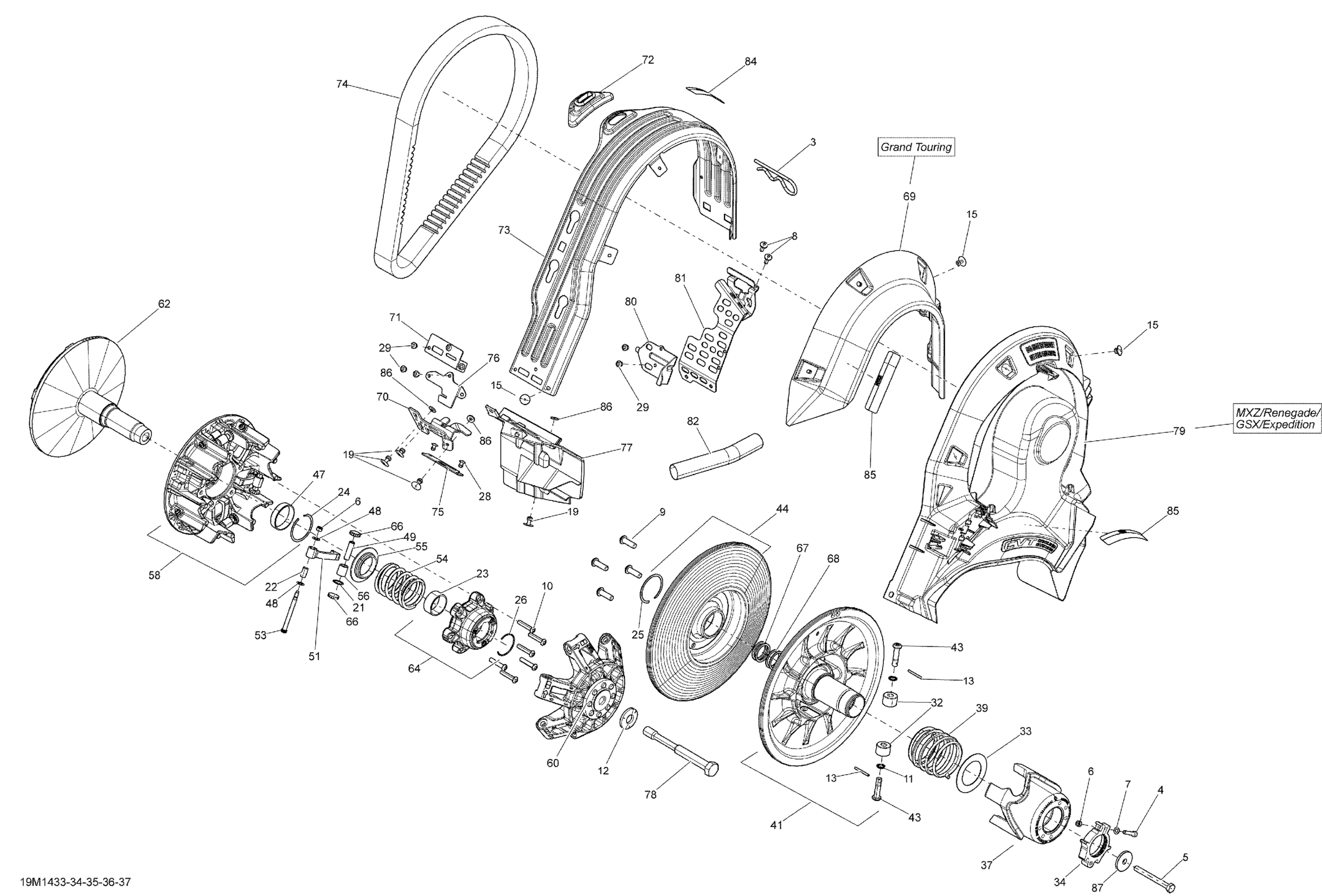

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 05- Pulley System Diagram

Hair Pin

Socket Screw M5 X 25

Hex. Cap Screw M8 X 75

Elastic Stop Nut M5

Flat Washer M5

Torx Screw M5 X 14

Torx Screw M8 X 25, Scotch Grip

Torx Screw M6 X 30

Lock Washer 8 mm

Spring Pin M3 X 30

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

O-Ring

Not Available As Spare Parts

Not Available As Spare Parts

Circlip

Circlip

Circlip

Avex Rivet

Avex Rivet

Pulley Roller

Washer

Calibration Ass'y

Cam Ass'y | Includes 100c to 100c2

SPRING RELEASE - Call your local BRP dealership

Fixe Flange Ass'y | Includes 100a to 100f

Pivot Stud

Slider Flange Ass'y | Includes 100b to 100b3

Bushing

Stopper Washer

Roller Axle

Rampe 735

Ramp Axle

Clutch Spring

Seat Spring

Roller

Flange Slide Ass'y

Governor Cup Ass'y

Fixed Flange Ass'y

Spring Cover Ass'y

Slider Shoe

Spacer

Spacer

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Guide

Belt Guard

Drive Belt

Reinforcement Plate

Front Bracket

Front Support

CVT Air Duct Pulley

Stopper

BELT GUARD BRACKET - Call your local BRP dealership

Not Available As Spare Parts

Safety Belt Guard Decal

Flat Washer

Strength Washer
