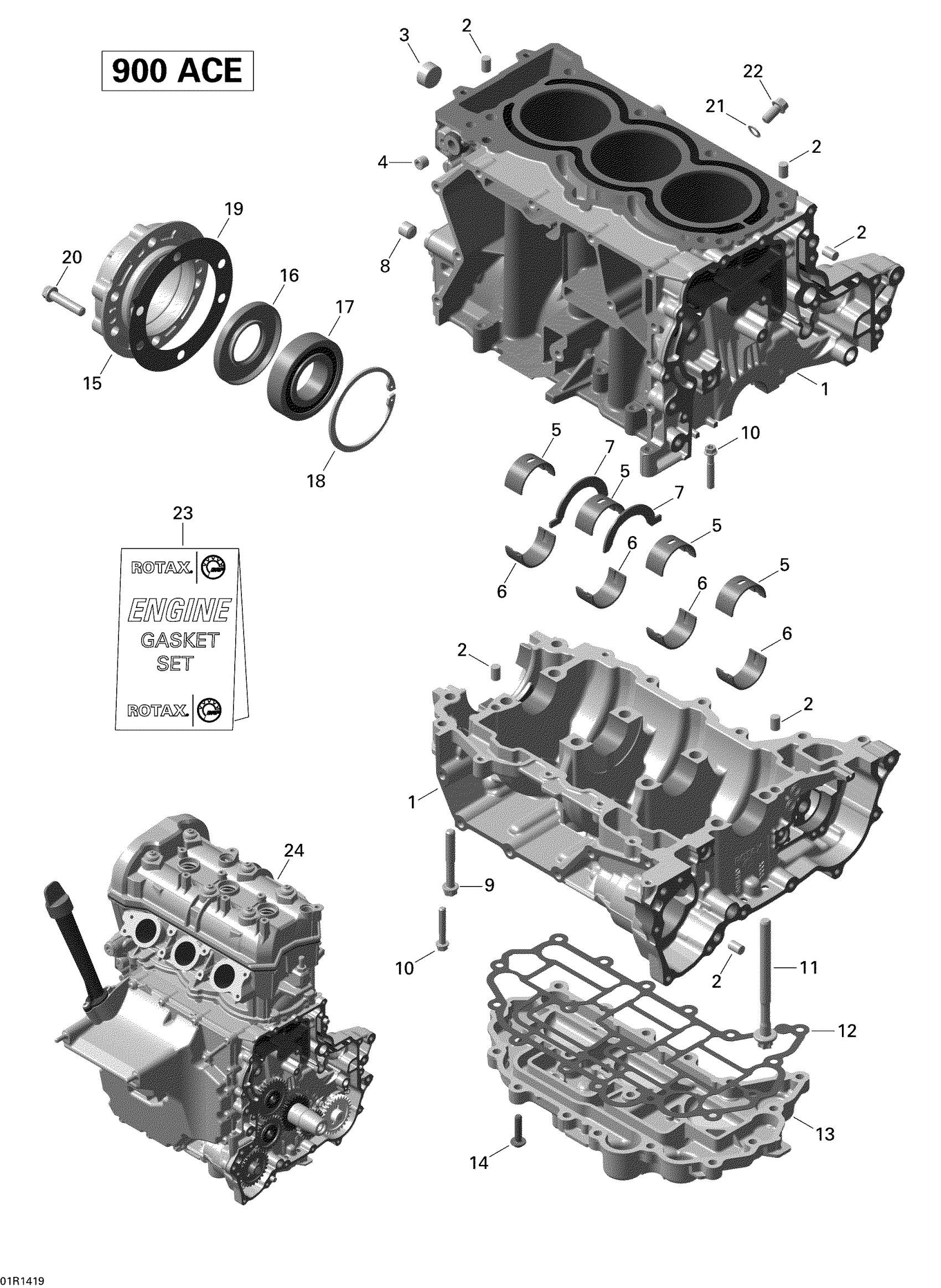

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 Crankcase Diagram

#

Description
Price

1

Engine Block Ass'y | Includes no. 1-6

420893138

$2,059.99

2

Center Pin 8 X 12

420632010

$3.07

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Cushion

420933180

$14.27

6

Cushion

420933185

$14.92

7

Ring Half

420933140

$8.89

8

Threaded Pin

420840500

$6.26

9

Torx Flange Screw M8 X 55

420641213

$6.11

10

Torx Flange Screw M6 X 35

420440274

$0.83

11

Torx Flange Screw M9 X 113

420940945

$10.41

12

Gasket

420431820

$12.97

13

Oil Sump

420912380

$91.51

14

Torx Flange Screw M6 X 25

420841549

$1.97

15

PTO Cover | Includes no. 15-18

420911845

$101.51

16

Oil Seal

420431402

$18.43

17

Ball Bearing

420832232

$11.29

18

Retaining Ring

420845790

$7.31

19

PTO Cover Gasket

420450080

$5.29

20

Torx Flange Screw M8 X 35

420641188

$6.11

21

Sealing Ring

420950141

$1.64

22

Torx Flange Screw M8 X 16

420440852

$4.00

23

Engine Gasket Set

420686235

$558.43

24

Long Block 903 | Except Europe

420090301

$4,103.99
