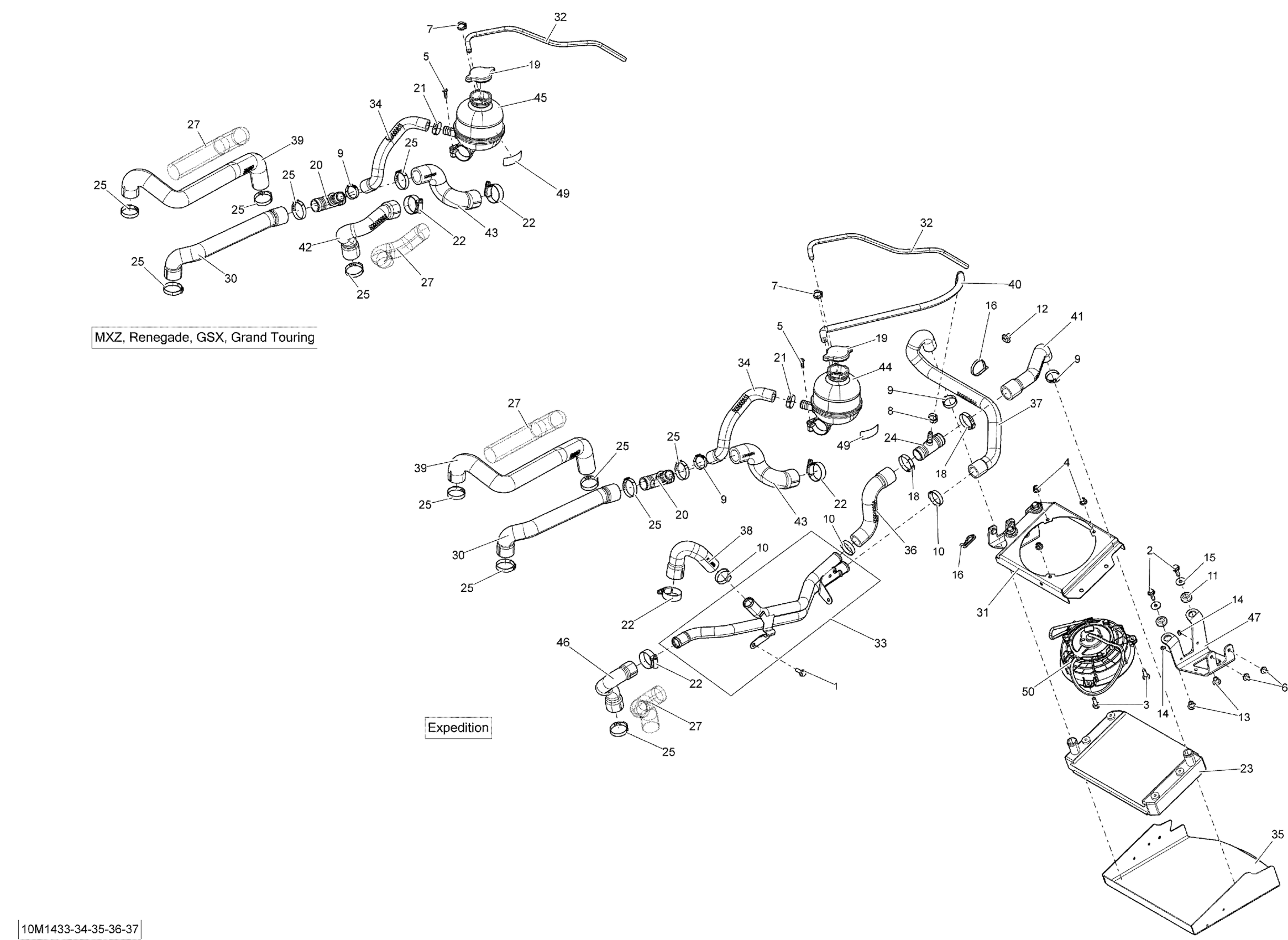

Ski-Doo EXPEDITION SPORT 900ACE XS, 2014 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

6

Hex. Flange Screw M6 X 12

250000574

$2.06

7

Oetiker Gear Clamp

293650025

$2.46

8

Crimp Clamp, 15.3-706R

293650047

$2.64

9

Crimp Clamp

293650099

$4.60

10

Oetiker Clamp

293650141

$4.28

11

Grommet

709000582

$4.38

12

Mount Dart

293730040

$0.86

13

Bushing

293900100

$6.31

14

Pop Rivet 3/16"

390402200

$0.26

15

Flat Washer

250200082

$0.35

16

Tie-Rap 180 mm

414115200

$0.09

18

Gear Clamp

509000162

$5.84

19

Radiator Pressure Cap

509000180

$11.69

20

T-Fitting

509000372

$7.87

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

22

Aba Gear Clamp, 26-38 MM

509000443

$5.68

23

Radiator

509000488

$330.74

24

T-Fitting

509000510

$11.52

25

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

27

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

30

Radiator Return Hose

509001062

$14.54

31

Fan Support

509000714

$49.20

32

Hose

509000775

$9.86

33

Water Pipe

509000800

$105.35

34

Filling Hose

509001063

$13.58

35

Air Inlet Deflector

509000835

$94.58

36

Radiator Hose

509000854

$14.57

37

Radiator Hose

509000855

$22.28

38

Engine Outlet Hose | Engine 900 ACE Expedition

509000858

$17.66

39

Radiator Hose

509000859

$35.35

40

Breather Hose

509000860

$23.05

41

Radiator Hose

509000862

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Engine Inlet Hose | Engine 900 ACE

509000864

$13.58

44

Cooling Tank

509000875

$86.89

45

Not Available As Spare Parts

XXX

Unavailable

46

Engine Outlet Hose

509000888

$18.43

47

Support

509000933

$37.66

47

LH Support

509000890

$37.66

49

Warning Decal

516005904

Unavailable

50

Fan

709200573

$241.51
