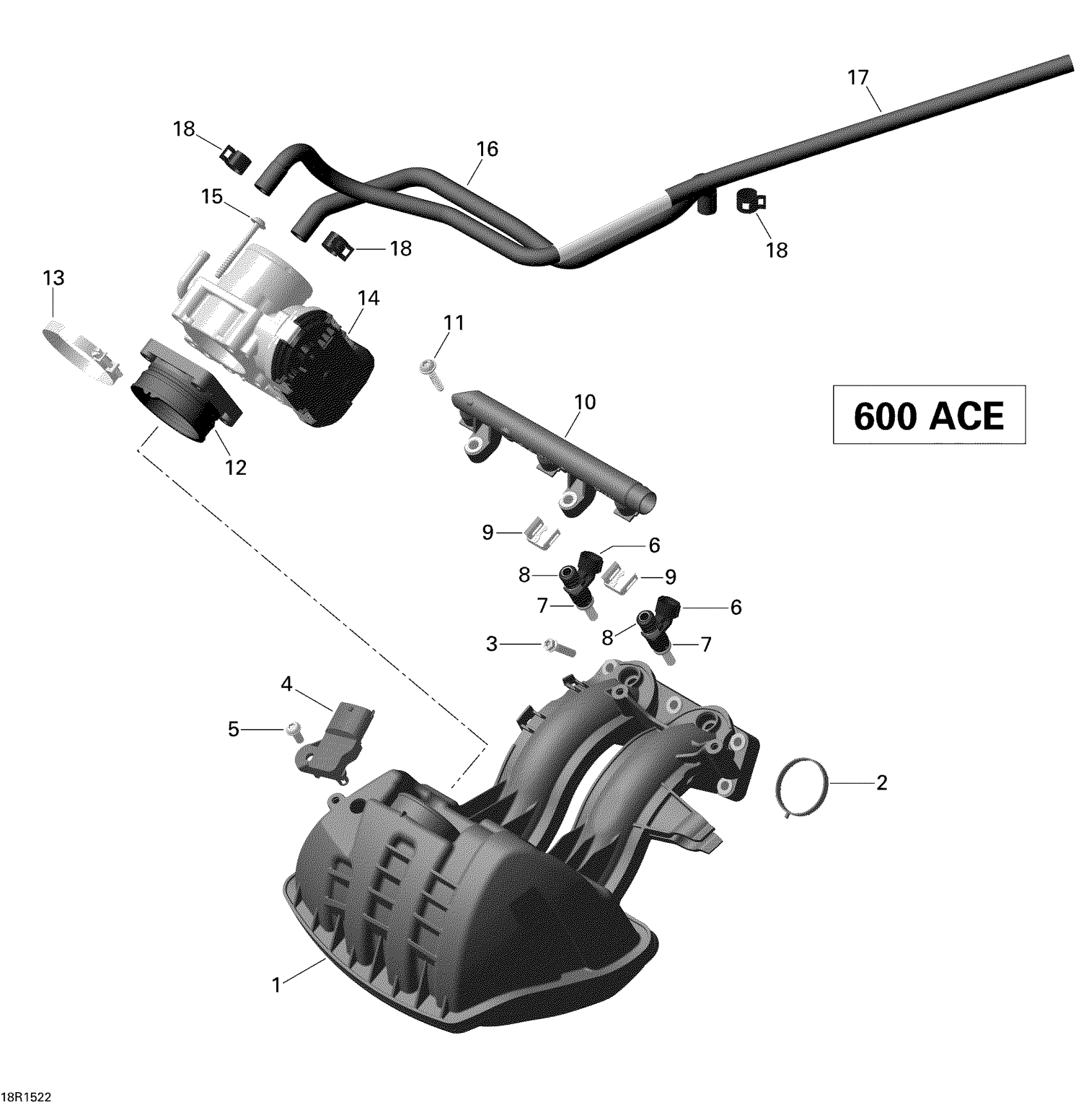

Ski-Doo Expedition Sport 600ACE XS154, 2015 02- Air Intake Manifold And Throttle Body _18R1522 Diagram

Air Intake Manifold Ass'y | Includes 1 to 2

420867025

Unavailable

Gasket

420431660

$11.60

Torx Flange Screw M6 X 30

420440647

$2.00

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641588

$2.11

Injection Valve Ass'y | Includes 18 to 20

420874847

$137.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

Injector Clip

420853030

$3.09

Fuel Rail

420874961

$16.99

Torx Screw 6X30

420441575

$3.06

Intake Neck

420867110

$35.99

Hose Clamp

420251830

$14.28

Throttle Body

420893148

$381.49

Torx Flange Screw M6 X 50

420441588

$4.44

Molded Hose

420201490

$19.99

MOLDED HOSE - Call your local BRP dealership

420201495

$24.99

Clamp

420853511

$7.51
