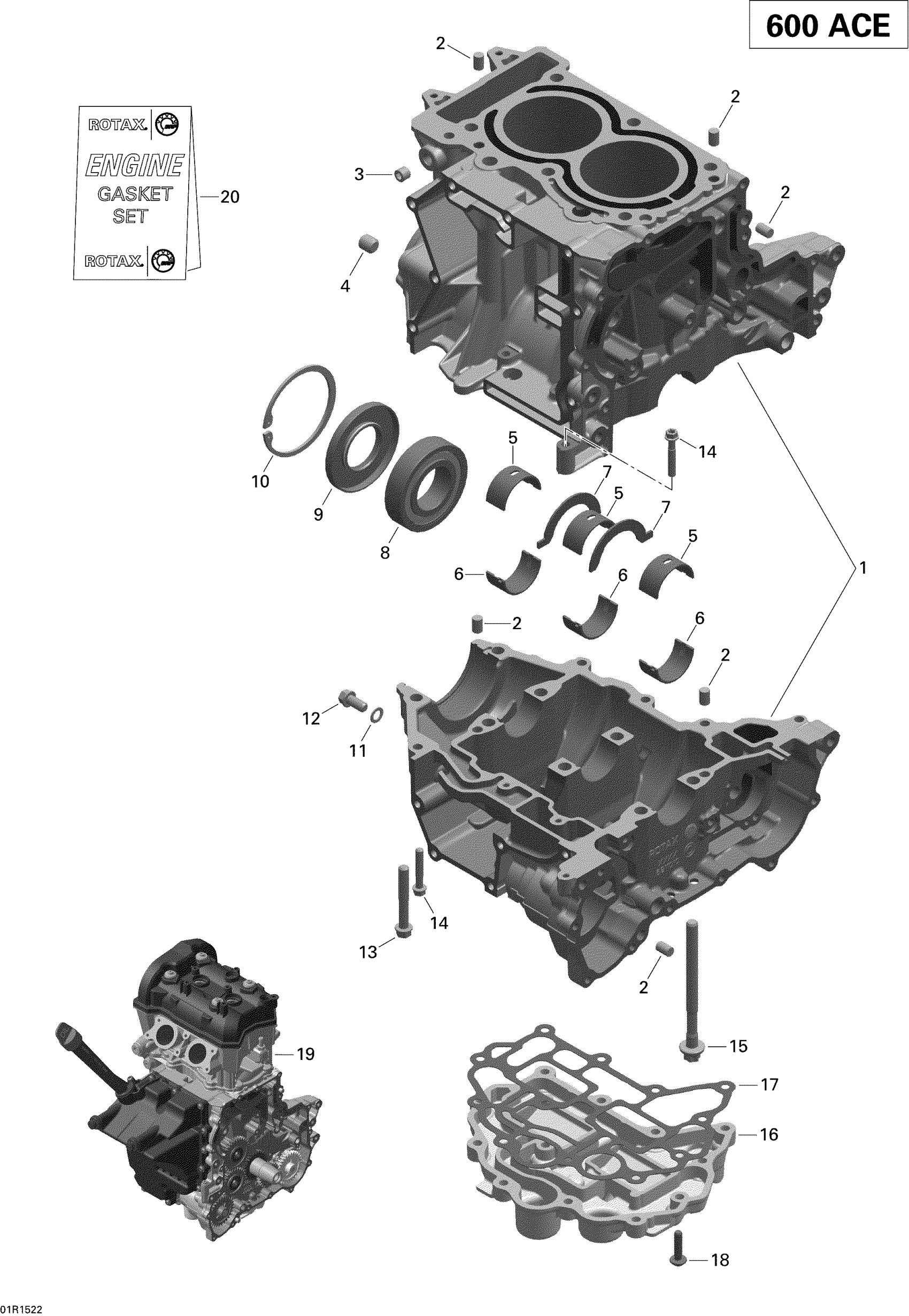

Ski-Doo Expedition Sport 600ACE XS154, 2015 Engine Block _01R1522 Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420892853

$2.00

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M10 X 1

420641323

$14.28

4

Threaded Pin

420840500

$7.65

5

Cushion

420933180

$17.58

6

Cushion

420933185

$18.49

7

Ring Half

420933140

$11.60

8

Ball Bearing

420832232

$13.16

9

Oil Seal

420431402

$19.49

10

Retaining Ring

420845790

$7.51

11

Sealing Ring

420950141

$2.00

12

Torx Flange Screw M8 X 16

420440852

$4.12

13

Torx Flange Screw M8 X 55

420641213

$7.41

14

Torx Flange Screw M6 X 35

420440274

$1.01

15

Torx Flange Screw M9 X 113

420940945

$13.70

16

Oil Sump

420911124

$79.49

17

Gasket

420431630

$14.83

18

Torx Flange Screw M6 X 25

420841549

$2.00

19

Long Block 602

420060203

$3.00

20

Gasket Set Engine 602

420686024

$327.99
