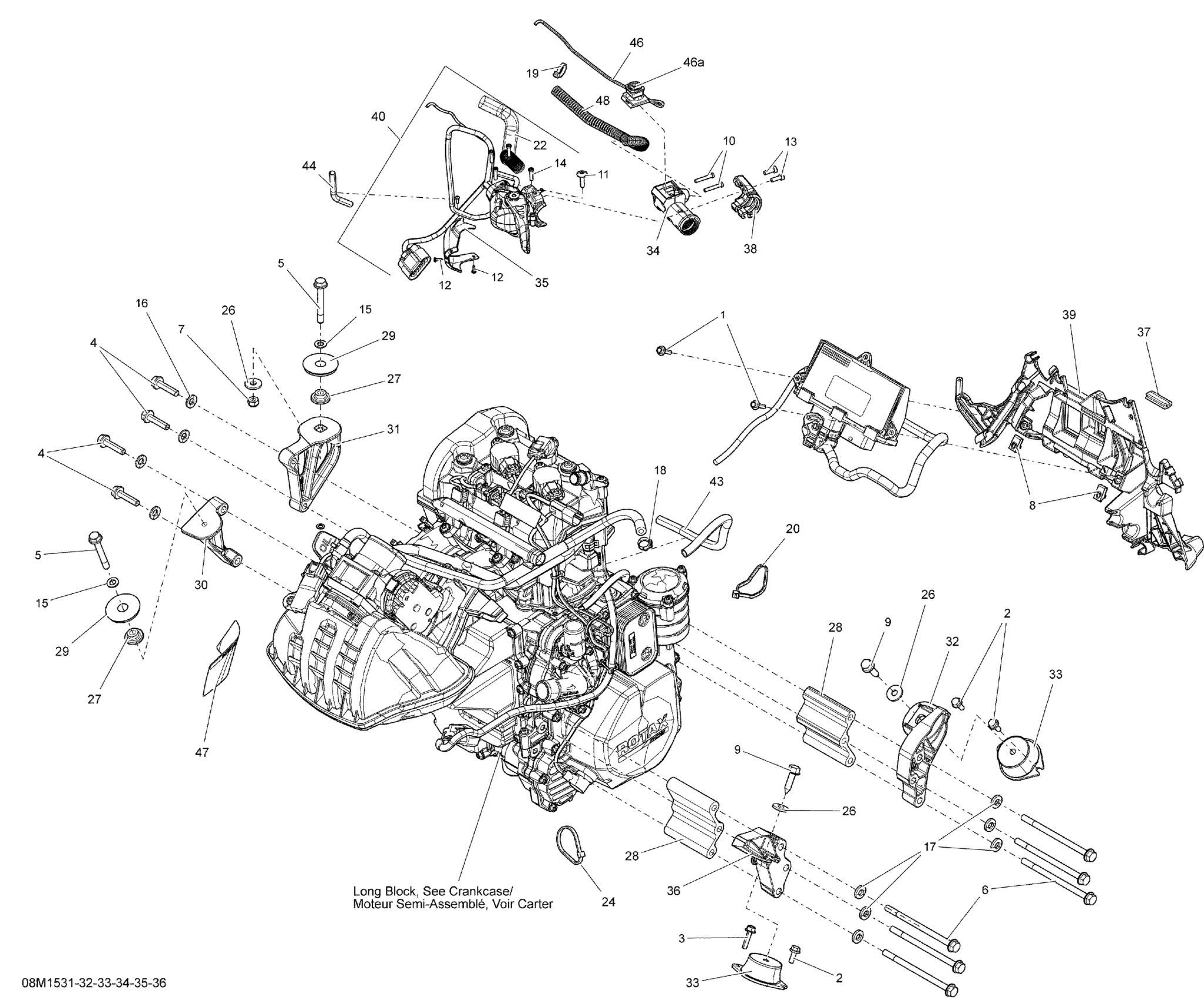

Ski-Doo Expedition Sport 600ACE XS154, 2015 01- Engine _08M1534 Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

4

Hex. Flange Screw M8 X 35

250000986

$2.11

5

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

6

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Panel Nut M5 X 0.8

250000958

$4.23

9

Cone Screw, M8 X 30

250000257

$1.89

10

Torx Screw #8-18

250000263

$1.04

11

Torx Screw M5 X 20

250000528

$2.11

12

Torx Screw M2.9 x 9.5

250000623

$3.17

13

Torx Screw M5 X 14

250000632

$7.51

14

Torx Screw

250000671

$1.01

15

Flat Washer With Teflon 8 mm

250200008

$3.80

16

Conical Spring Washer M8

250200146

$1.01

17

Conical Spring Washer M8

250200157

$2.11

18

Oetiker Gear Clamp

293650025

$3.09

19

Tie Wrap 142 mm

293750002

$1.25

20

Tie Wrap 368 mm

293750008

$1.04

22

Protector Tube

515177716

$4.55

24

Tie-Rap 180 mm

414115200

$0.11

26

Yellow, Washer

503183200

$3.19

27

Spacer

512060285

$19.99

28

Shim

512060505

$43.49

29

Stopper

512061203

$14.22

30

Rear Support PTO

512061139

$24.99

31

Front Support PTO

512061140

$20.99

32

Front Support, MAG

512060663

$19.99

33

Rubber Mount

512060729

$65.99

34

Switch Support

512061453

$9.28

35

Cap

512060862

$13.49

36

Rear Support MAG

512061142

$28.99

37

Was 271000110 Protection Trim

219704353

$15.99

38

Front Housing

512060987

$8.57

39

Module Support

512060994

$16.33

40

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

40a

Handle Ass'y kit

415130047

$104.99

43

Protector Tube

512061067

$23.49

44

PROTECTOR TUBE 25 MM - 210 MM - Call your local BRP dealership

219702532

Unavailable

46

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

46a

Male Terminal

515175232

$1.58

47

Caution Decal, Oil Level

516005521

Unavailable

48

Protector Tube

515177716

$4.55
