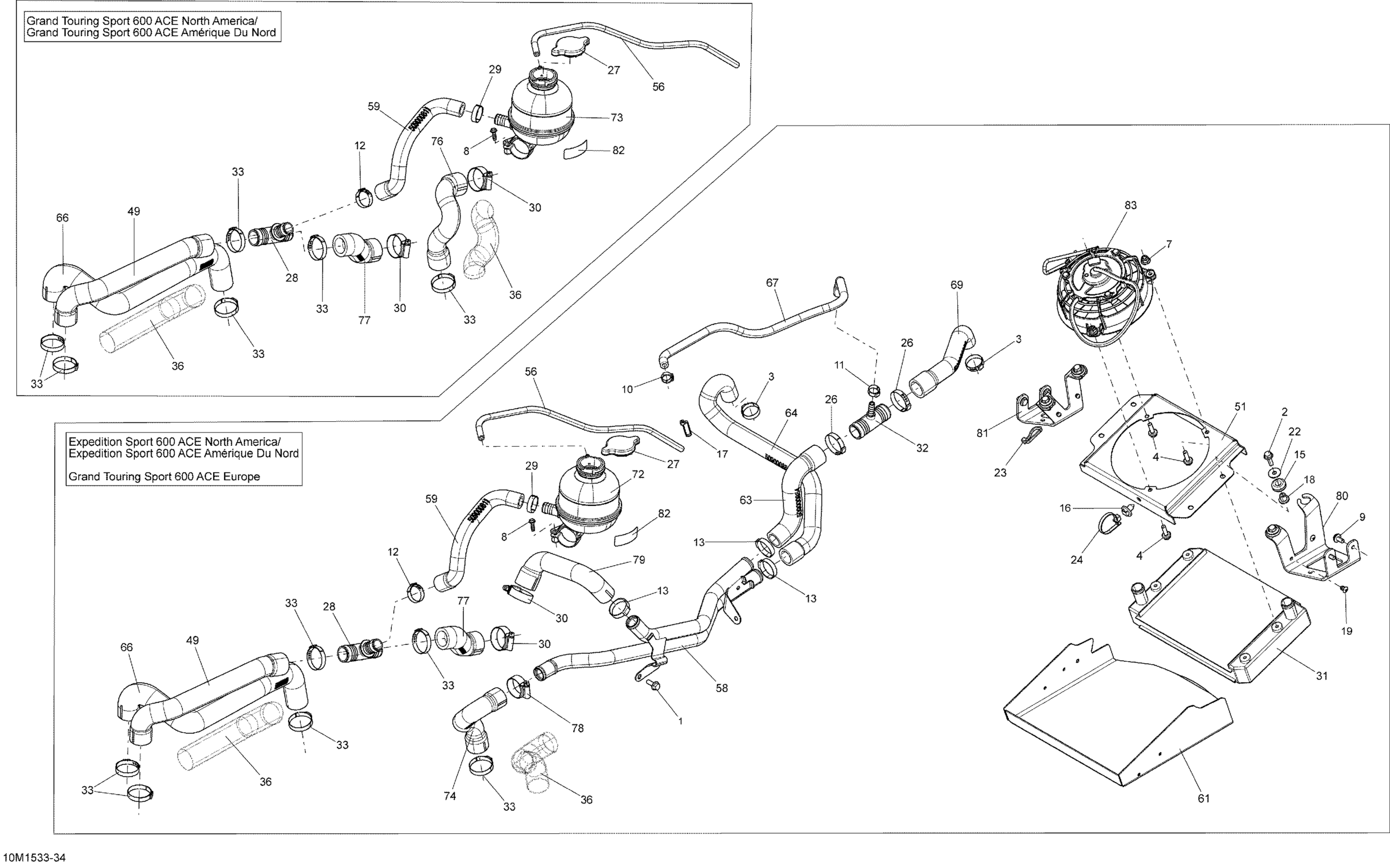

Ski-Doo Expedition Sport 600ACE XS154, 2015 01- Cooling System _10M1534 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3

Crimp Clamp

293650099

$4.29

4

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

9

Hex. Flange Screw M6 X 12

250000574

$2.11

10

Oetiker Gear Clamp

293650025

$3.09

11

Crimp Clamp, 15.3-706R

293650047

$3.29

12

Crimp Clamp

293650099

$4.29

13

Oetiker Clamp

293650141

$4.29

15

Grommet

709000582

$4.69

16

Mount Dart

293730040

$1.04

17

Tie Wrap 142 mm

293750002

$1.25

18

Bushing

293900100

$7.65

19

Avex Rivet

390909100

$0.30

22

Flat Washer

250200082

$0.42

23

Tie-Rap 180 mm

414115200

$0.11

24

Tie-Rap 180 mm

414115200

$0.11

26

Gear Clamp

509000162

$7.29

27

Radiator Pressure Cap

509000180

$20.49

28

T-Fitting

509000372

$10.33

29

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

30

Aba Gear Clamp, 26-38 MM

509000443

$12.72

31

Radiator

509000488

$338.99

32

T-Fitting

509000510

$13.16

33

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

36

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

49

Radiator Return Hose

509001062

$16.33

51

Fan Support

509000714

$52.99

56

Hose

509000775

$11.49

58

Water Pipe

509000800

$110.99

59

Filling Hose

509001063

$15.28

61

Air Inlet Deflector

509000835

$99.99

63

Radiator Hose

509000854

$15.49

64

Radiator Hose

509000855

$23.49

66

Radiator Hose

509000859

$37.99

67

Breather Hose

509000860

$24.49

69

Radiator Hose

509000862

$19.99

72

Cooling Tank

509000875

$92.99

73

Not Available As Spare Parts

XXX

Unavailable

74

Engine Outlet Hose

509000888

$19.99

76

Not Available As Spare Parts

XXX

Unavailable

77

Radiator Hose

509000921

$13.49

78

Gear Clamp

509000931

$14.22

79

Engine Outlet Hose

509000932

$20.99

80

Support

509000933

$38.99

81

Support

509000934

$38.99

82

Warning Decal

516005904

Unavailable

83

Fan

709200573

$259.99
