Description

Price

3

Hair Pin

114045200

$11.11

5

Socket Screw M5 X 25

205052544

$1.68

6

Hex. Cap Screw M8 X 75

207287544

$5.18

7

Elastic Stop Nut M5

232551414

$0.87

8

Flat Washer M5

234051410

$0.53

9

Torx Screw M5 X 14

250000742

$1.47

10

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

11

Torx Screw M6 X 30

250000580

$6.08

12

Lock Washer 8 mm

250200009

$2.11

13

Conical Spring Washer M14

250200144

$4.44

14

Spring Pin M3 X 30

250400063

$2.11

15

Pop Rivet 3/16"

293150103

$0.55

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

O-Ring

293300185

$0.98

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Circlip

293370037

$3.19

22

Circlip

293370049

$4.99

23

Circlip

293370065

$0.98

26

Avex Rivet

390909200

$0.30

28

Drive Belt

417300585

$154.99

30

Pulley Roller

417127016

$24.49

31

Washer

417127155

$8.26

32

Calibration Ass'y

415129604

$21.49

35

Release Spring

417127344

$45.49

38

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$349.99

40

Pivot Stud

417127294

$14.49

41

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

43

Cam Ass'y | Includes 100m to 100q

417127391

$159.49

45

Bushing

417222758

$22.49

46

Thrust Washer

417223255

$2.00

47

Roller Axle

417223257

$6.99

49

Ramp 716 Ass'y

417223508

$38.99

51

Ramp Axle

417223694

$11.05

52

Clutch Spring

417223747

$17.39

53

Seat Spring

417223752

$15.27

54

Roller

417223767

$11.59

56

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

58

Governor Cup Ass'y

417223865

$274.99

60

Fixed Flange Ass'y

417224091

$309.99

62

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

64

Slider Shoe

417223919

$6.83

65

Spacer

417300265

$2.29

66

Side Protector

417300356

$14.76

67

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

68

Not Available As Spare Parts

XXX

Unavailable

69

Reinforcement

417300380

$7.29

70

Guide

417300381

$11.99

71

Belt Guard

417300382

$90.99

72

Not Available As Spare Parts

XXX

Unavailable

73

Pulley Drive Bolt

417300432

$41.49

74

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

75

Velcro Strip

508000599

$13.99

76

Decal English

516005503

Unavailable

77

Safety Belt Guard Decal

516005509

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable

79

Not Available As Spare Parts

XXX

Unavailable

80

Strength Washer

517302322

$12.63

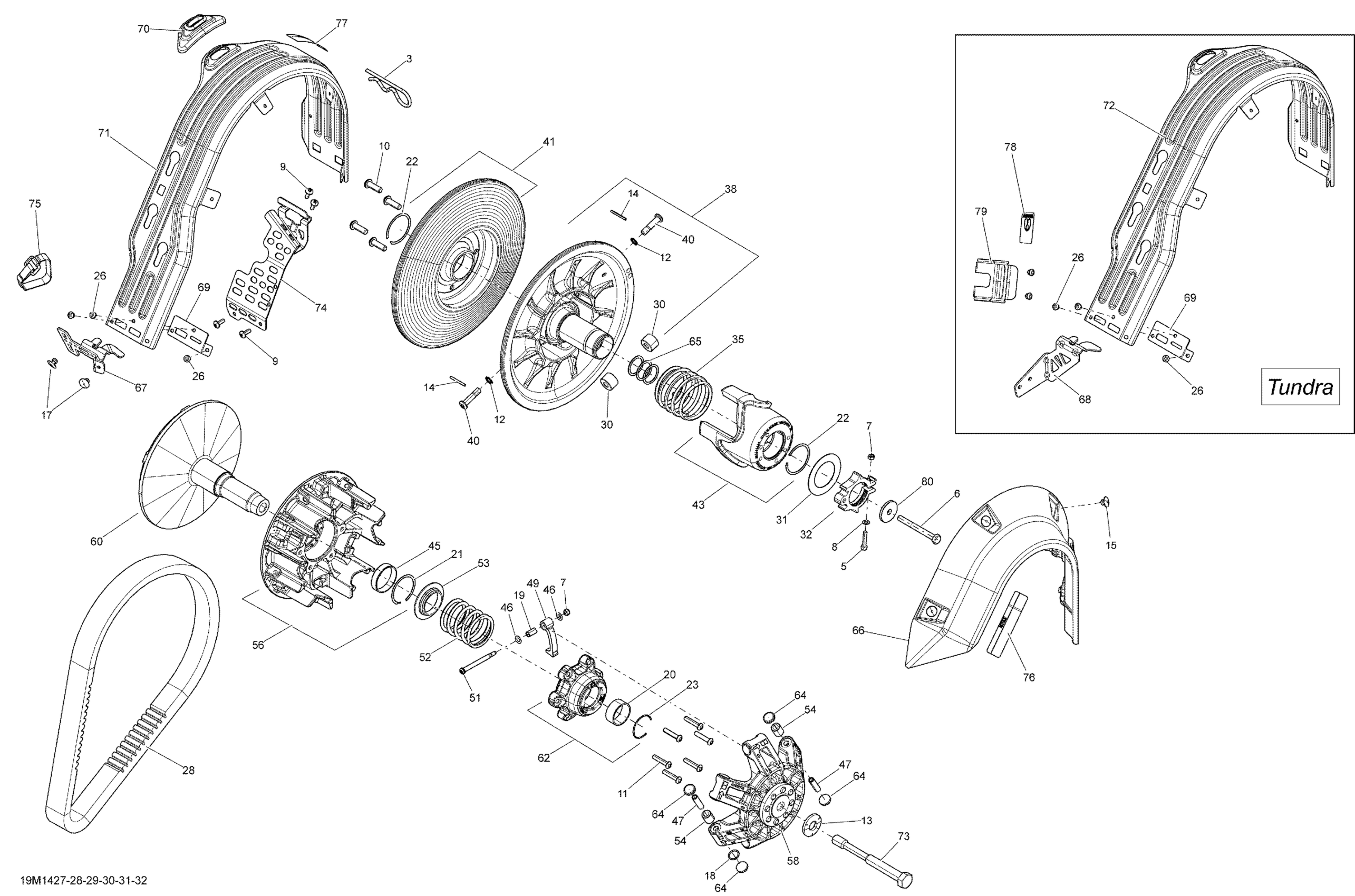

Ski-Doo EXPEDITION SPORT 600ACE XP, 2014 05- Pulley System Diagram
