Description

Price

56

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

57

Elastic Stop Nut M6

232561414

$0.55

58

Hex. Flange Nut M6

233061414

$1.68

59

Panel Nut M5 X 0.8

250000958

$4.23

60

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

61

Tork Screw M6 X 16

250000534

$2.11

62

Torx Screw M8 X 55

250000535

$3.17

63

Tork Screw M6 X 18

250000536

$2.11

65

Flat Washer

250200039

$0.74

71

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

74

Hemlock Rivet, 6.5 mm

293150119

$4.29

75

Hemlock Rivet 6.5 mm

293150120

$7.41

76

Stavex Rivet

293150144

$0.82

78

Stavex Rivet

293150144

$0.82

86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

91

Hex. Flange Screw M6 X 20

207662044

$2.00

92

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

94

Hemlock Rivet, 6.4 mm

293150174

$7.86

95

Interlock Rivet 3/16''

293150194

$1.04

96

Black, Plug

293730052

$9.19

97

Pop Rivet 3/16"

390402300

$0.75

110

Insert

293450275

$12.99

111

Leg Bushing

505072690

$12.49

116

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

116

LH Roller | Includes 10bd to 10be

518325160

$78.99

118

RH Reinforcement

518324874

$27.99

118

LH Reinforcement

518324875

$27.99

120

RH Slide Bracket

518325955

$45.99

120

LH Slide Bracket

518325956

$49.99

121

Clear Rear Bumper

518325579

$111.49

122

Rear Cap

518327105

$22.49

123

Adhesive Patch

518325560

$4.69

126

RH Deflector, Black Polypropylene

518325782

$13.99

126

LH Deflector, Black Polypropylene

518325783

$13.99

128

RH Rear Base

518325973

$21.99

128

LH Rear Base | Includes 10v to 10x

518325974

$21.99

130

Front Member

518326198

$64.99

133

RH Side Member

518326328

$284.99

134

LH Side Member

518326330

$284.99

135

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

136

RH Support | LT

518326482

$9.19

139

Reinforcement Plate

518326647

$4.69

140

Seal

518326656

$9.19

143

LH Stirup

518326820

$37.99

146

Support

518326960

$12.99

147

U-Attach

518326961

$10.99

150

Attach | Includes 10n to 10p

518326986

$12.99

152a

Full Moon RH Cap

520000711

$8.79

152b

Full Moon LH Cap

520000712

$9.19

60a

Flat Washer

224061201

$1.37

A

FRAME EXPEDITION LFF - Call your local BRP dealership

415129829

Unavailable

B

E-MODULE - Call your local BRP dealership | Includes 2 to 10

518327569

Unavailable

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Henrob Rivet

293150146

$2.09

F

Stavex Rivet

293150144

$0.82

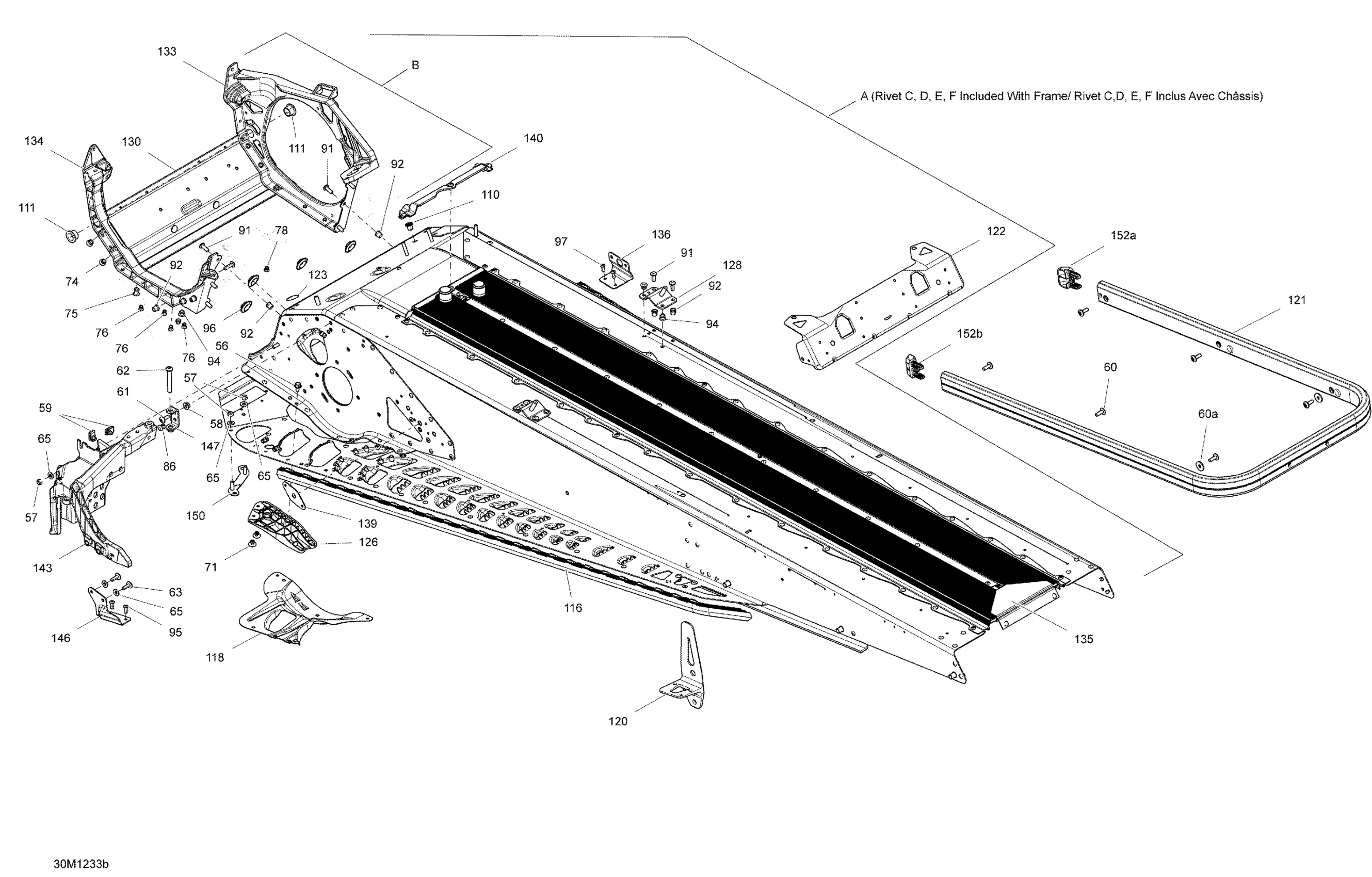

Ski-Doo Expedition Sport 600ACE LFF, 2012 09- Frame Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6

Hex. Flange Nut M6

Panel Nut M5 X 0.8

Torx Screw M6 X 1.0 X 18, Scotch Grip

Tork Screw M6 X 16

Torx Screw M8 X 55

Tork Screw M6 X 18

Flat Washer

Pop Rivet 3/16" | DS 650 X

Hemlock Rivet, 6.5 mm

Hemlock Rivet 6.5 mm

Stavex Rivet

Stavex Rivet

Ornit Rivet 6,5 X 14.5

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hemlock Rivet, 6.4 mm

Interlock Rivet 3/16''

Black, Plug

Pop Rivet 3/16"

Insert

Leg Bushing

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

RH Reinforcement

LH Reinforcement

RH Slide Bracket

LH Slide Bracket

Clear Rear Bumper

Rear Cap

Adhesive Patch

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

RH Rear Base

LH Rear Base | Includes 10v to 10x

Front Member

RH Side Member

LH Side Member

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

RH Support | LT

Reinforcement Plate

Seal

LH Stirup

Support

U-Attach

Attach | Includes 10n to 10p

Full Moon RH Cap

Full Moon LH Cap

Flat Washer

FRAME EXPEDITION LFF - Call your local BRP dealership

E-MODULE - Call your local BRP dealership | Includes 2 to 10

Avex Rivet

Avex Rivet

Henrob Rivet

Stavex Rivet
