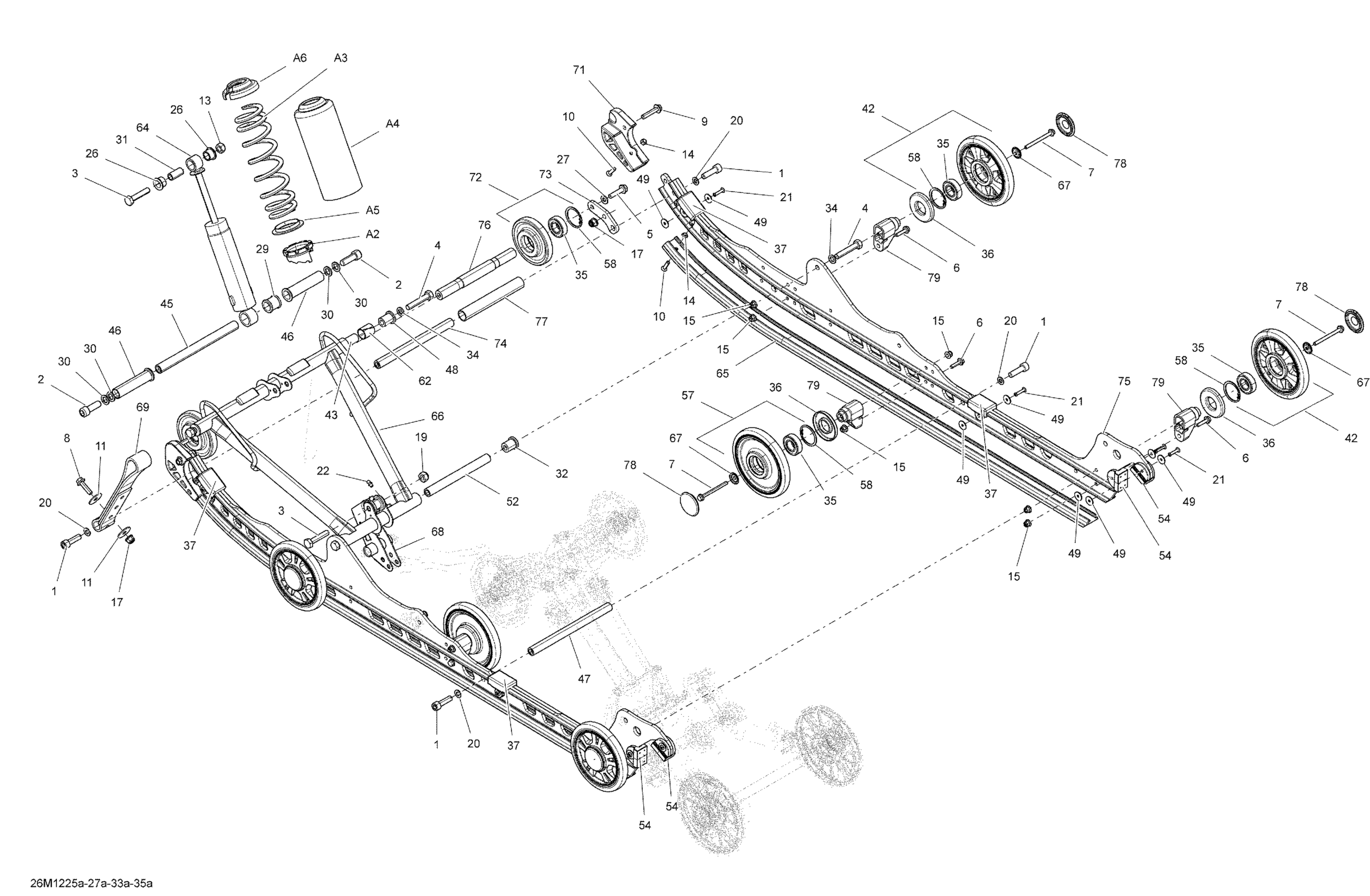

Ski-Doo Expedition Sport 600ACE LFF, 2012 Rear Suspension Base And Front Arm Diagram

#

Description
Price

1

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

3

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

4

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

$3.54

5

Hex. Flange Screw M8 X 35

250000986

$1.74

6

Hex Flange Screw M6 x 25

250000522

$4.28

7

Hex. Flange Screw M6 X 70

250001027

$1.74

8

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

9

Hex. Flange Screw M8 X 40

207684044

$1.25

10

Phillips Screw M6 X 25

208562531

$1.74

11

Flat Washer

224081301

$0.86

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Elastic Stop Nut M6

232561414

$1.55

15

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

$3.93

17

Hex. Flange Elastic Nut M8

233281414

$1.14

19

Elastic Locking Nut M10 X 1.5

233601416

$1.68

20

Washer

503189564

$0.72

21

Pop Rivet 3/16"

293150142

$2.11

22

Grease Fitting

408200700

$2.80

26

Urethane Bushing

503189117

$6.88

27

Washer

503189157

$3.20

29

Bushing

503189271

$10.46

30

Washer

503189276

$3.20

31

Bushing | Includes 240d to 240d1

503189282

$4.18

32

Bushing

503189324

$11.17

34

Washer

503192496

$0.75

35

Ball Bearing | Package-STD

503190396

$7.12

37

Rubber Stopper

503190576

$10.23

42

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

43

Upper Shaft

503191215

$36.12

45

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

46

Center Bushing

503191259

$8.97

47

Axle Strap

503191260

$29.20

48

Bushing

503191262

$13.60

49

Washer

503191273

$1.06

52

Lower Shaft

503191279

$27.66

54

Rubber Stopper

503191291

$18.43

57

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

58

Retaining Ring

415129371

$8.92

62

Extended Bushing

503191556

$5.71

64

Center Shock

503192266

$157.66

65

Black Slider, 154"

503192618

$33.05

66

Front Arm | Includes 2000a to 2000b

503191752

$359.97

67

Wheel Cup M6

503191820

$4.66

68

Rocker

503192211

$78.43

69

Stopper Strap

503192360

$19.97

71

RH Protector

503192610

$26.89

72

Black, Wheel Ass'y, 100 mm

503192611

$32.28

73

Plate

503192612

$11.45

74

Axle Strap

503192613

$34.58

75

Runner | Model-LE

503193397

$230.74

76

Front Wheel Axle

503192644

$146.12

77

Spacer

503196943

$7.58

78

Black, Wheel Cap

503192771

$2.28

79

Casted Support

503193894

$12.75

A2

Adjustment Cam

505073625

$12.18

A3

Black, Spring

503191882

$59.97

A4

Protector

503193663

$35.35

A5

Spring Guide

503191872

$2.18

A6

Spring Stopper

706200881

$10.30
