Description

Price

1

Chaincase

504153184

$359.99

2

Hex. Flange Screw M6 X 20

207662034

$2.19

3

Flange Elastic Nut M6

233261434

$4.49

4

Dowel Pin

250400048

$2.19

6

Oil Seal

293200168

$14.99

7

Ball Bearing

293350115

$12.11

8

Circlip

504152576

$10.99

9

Not Available As Spare Parts

XXX

Unavailable

10

Sprocket, 21 Teeth

504152927

$134.99

11

Coupling

504152979

$75.99

12

Circlip

293370054

$8.29

13

Spring Release

504153179

$11.99

14

Slinding Gear, 27 Teeth

504152960

$109.99

15

Needle Bearing

293350063

$23.99

16

Washer

504152689

$7.79

17

Circlip

293370055

$8.29

18

Not Available As Spare Parts

XXX

Unavailable

19

Hex. Screw M10 X 1.5 X 30

207503044

$7.69

20

Washer

504152862

$10.99

21

Reverse Shaft

504083100

$46.99

22

Rolled Pin M3 X 10

250400010

$1.99

23

Ring

504078700

$21.99

24

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$114.99

25

Needle Bearing

293350064

$23.49

26

Alignement Rod

570048600

$16.49

27

Needle Bearing

293350064

$23.49

28

Sprocket, 29 Teeth

504152724

$184.99

29

Spacer

504077300

$7.09

30

Oil Seal

293200159

$16.49

31

Ball Bearing

293350059

$30.99

32

Circlip

504152582

$10.99

33

Kit Sprocket This part replaces 504152971.

861805540

$164.99

34

Circlip

504152572

$7.09

35

O-Ring

293300122

$2.19

36

Magnetic Cap

504152619

$24.49

39

Drive Chain, 106 Links

504152630

$184.99

40

Hex. Nut M10 X 1.5

232006414

$1.49

41

Adjustment Screw

504152602

$12.99

42

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.99

43

Hex. Countersunk Drain Plug

250500013

$8.09

44

Bonded Washer

250200100

$2.19

46

Chaine Tensionner

504153431

$16.49

47

Slider Chain

504152739

$67.99

48

Tensioner Axle

504152841

$16.99

49

Circlip

504152282

$3.29

50

Chain Slider

504153122

$16.99

51

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.19

52

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$369.99

53

Rotation Sensor

504152896

$38.99

56

Tight Seal

293300130

$7.69

57

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.19

59

Cap

504152930

$29.99

60

Straight Fitting

293710035

$9.09

61

Polyurethane Hose 10000Mm Long

219704410

$57.99

62

Protector Tube

504153074

$14.99

63

Tie-Rap 180 mm

414115200

$1.49

64

Not Available As Spare Parts

XXX

Unavailable

66

Spring Clamp

414554800

$1.49

67

Fork Ass'y

504153432

$38.99

68

O-Ring

414484400

$7.69

69

Welded Axle Fork

504152956

$31.99

70

Spring Pin M5 X 16

250400045

$4.69

72

Lever

504153427

$31.99

74

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.29

75

Ball Joint

504152951

$46.49

76

Double Ball Joint

504152710

$51.99

77

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.19

78

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.19

79

Hex. Flange Screw M6 X 25

207562544

$1.69

80

Grip

504153082

$34.99

82

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.29

83

Hex. Flange Screw M6 X 25

207562544

$1.69

84

Washer

504082900

$2.69

85

Hex. Screw M8 X 90

207089044

$3.59

86

Retaining Ring

504153886

$21.99

87

Ball Bearing

293350059

$30.99

88

O-Ring

293300122

$2.19

89

Magnetic Cap

504152619

$24.49

90

Circlip

504152572

$7.09

92

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

93

Hex. Flange Elastic Nut M8

233281414

$1.49

94

Ball Bearing

293350074

$38.49

95

Carriage Bolt M8 X 30

207783044

$2.19

96

Countershaft

504153000

$593.49

97

Torx Truss Screw M8 X 16

250000746

$3.49

98

Drive Axle Ass'y

504154054

$529.99

99

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1,179.99

100

Track Guide | Track Width 16''

415129528

$3.39

101

Cleat

504152651

$9.69

5a

Plate | Not Shown

518325816

$79.99

5b

Not Available As Spare Part - Friction Washer

Unavailable

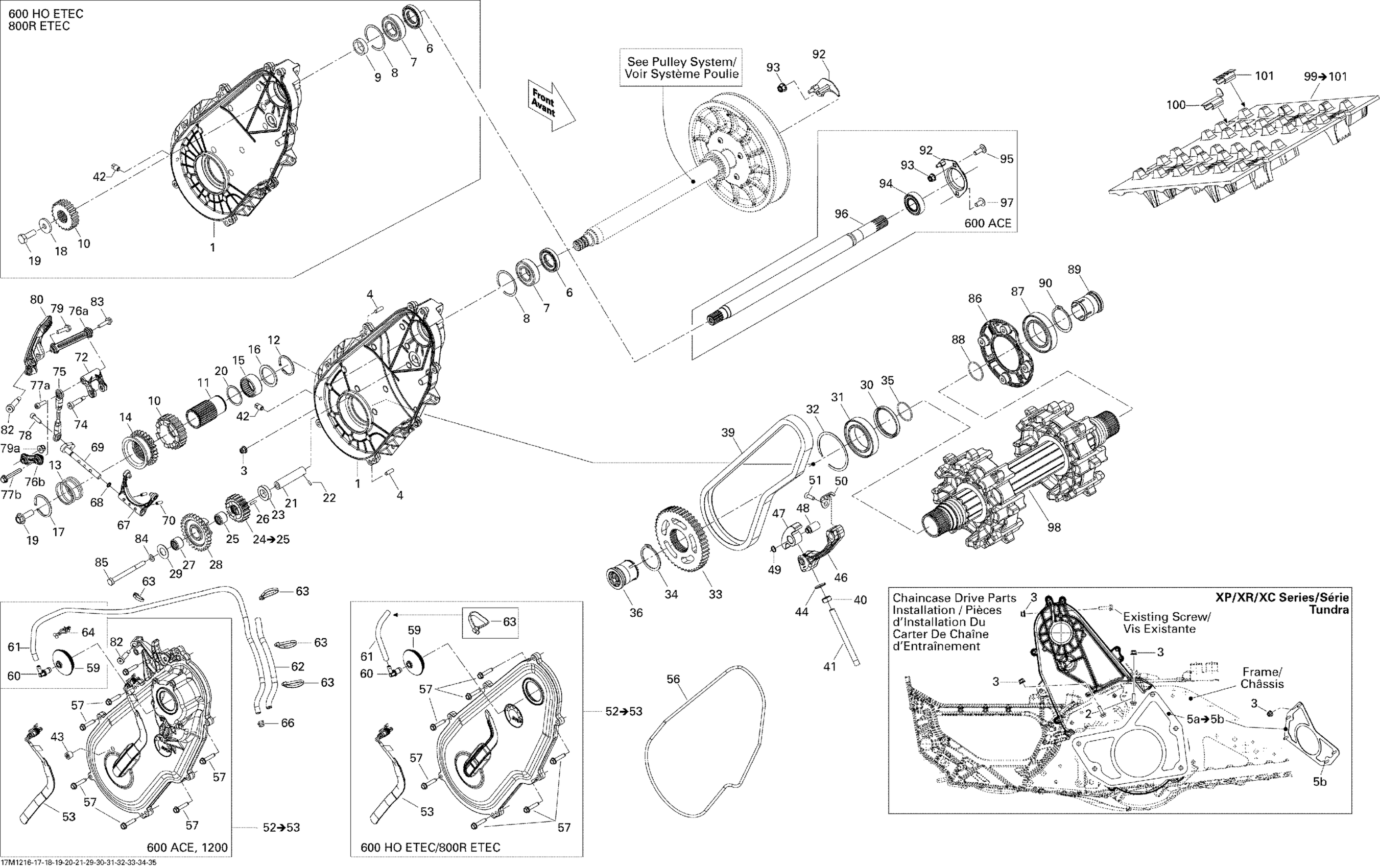

Ski-Doo Expedition Sport 600ACE LFF, 2012 Drive System Diagram

Chaincase

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Dowel Pin

Oil Seal

Ball Bearing

Circlip

Not Available As Spare Parts

Sprocket, 21 Teeth

Coupling

Circlip

Spring Release

Slinding Gear, 27 Teeth

Needle Bearing

Washer

Circlip

Not Available As Spare Parts

Hex. Screw M10 X 1.5 X 30

Washer

Reverse Shaft

Rolled Pin M3 X 10

Ring

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

Needle Bearing

Alignement Rod

Needle Bearing

Sprocket, 29 Teeth

Spacer

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152971.

Circlip

O-Ring

Magnetic Cap

Drive Chain, 106 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Hex. Countersunk Drain Plug

Bonded Washer

Chaine Tensionner

Slider Chain

Tensioner Axle

Circlip

Chain Slider

Socket Head Screw M6 X 20, Scotch Grip

Chaincase Cover Ass'y | Includes 1700 to 1700b

Rotation Sensor

Tight Seal

Hex. Flange Screw M6 X 1.0 X 30

Cap

Straight Fitting

Polyurethane Hose 10000Mm Long

Protector Tube

Tie-Rap 180 mm

Not Available As Spare Parts

Spring Clamp

Fork Ass'y

O-Ring

Welded Axle Fork

Spring Pin M5 X 16

Lever

Socket Head Screw M8 X 25, Scotch Grip

Ball Joint

Double Ball Joint

Socket Head Screw M6 X 20, Scotch Grip

Socket Head Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 25

Grip

Socket Head Screw M8 X 25, Scotch Grip

Hex. Flange Screw M6 X 25

Washer

Hex. Screw M8 X 90

Retaining Ring

Ball Bearing

O-Ring

Magnetic Cap

Circlip
