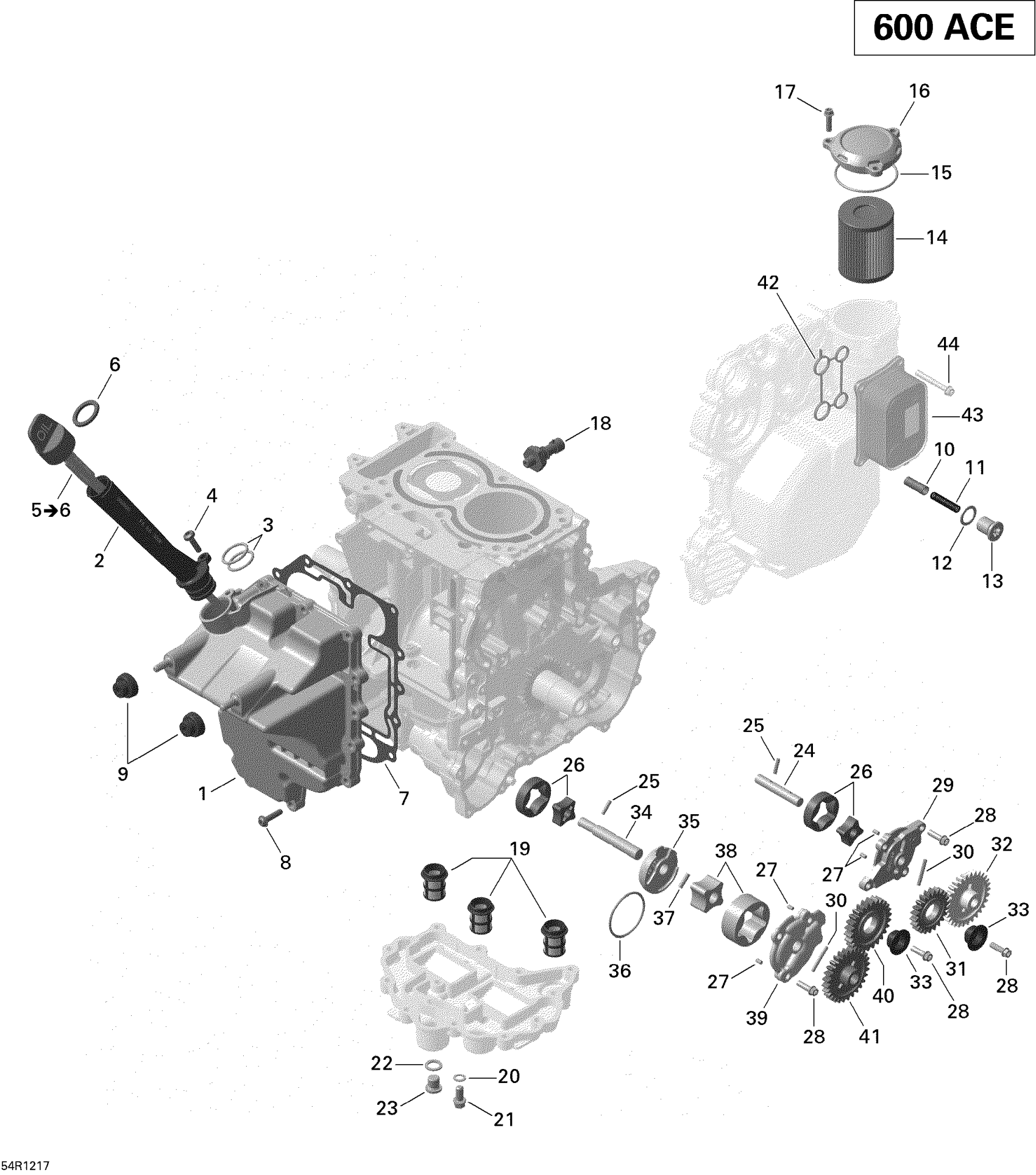

Ski-Doo Expedition Sport 600ACE LFF, 2012 01- Engine Lubrication Diagram

Oil Pump Cover

420956210

$93.49

Oil Filler Tube

420656900

$6.01

O-Ring

420430440

$3.43

FLANGED TORX SCREW M6 X 20 - Call your local BRP dealership

420441381

Unavailable

Oil Lever Tube | Includes 5 to 6

420856665

$16.86

Gasket Ring

420431790

$8.57

Gasket

420431770

$17.53

FLANGED TORX SCREW M6 X 25 - Call your local BRP dealership | Tightening Torque 9 Nm +/- 12%

420841546

Unavailable

Rubber Grommet

420860150

$5.39

Pressure Regulating Piston

420256591

$14.22

Spring

420239445

$14.22

O-Ring

420430622

$4.44

Plug Screw

420441372

$10.33

Oil Filter

420956124

$20.99

O-Ring

420230923

$3.17

Oil Filter cover

420612135

$11.63

Torx Flange Screw M6 X 20

420440207

$3.06

Oil Pressure Switch

420256915

$40.99

Oil Sieve

420656680

$11.60

Sealing Ring

420950141

$2.00

Torx Flange Screw M8 X 16

420440852

$4.12

Copper Washer

420250640

$0.98

Plug Screw M12 x 1,5

420241701

$12.63

Oil Pump Shaft

420820120

$13.16

Needle Pin

420232731

$4.01

Oil Pump Rotor

420256348

$77.99

Needle Pin

420929075

$2.11

Torx Flange Screw M6 X 20

420440207

$3.06

Oil Pump Cover

420911080

$28.49

Needle Pin

420232431

$4.39

Gear 22 Teeths

420835400

$20.49

Oil Pump Gear, 29 Teeth

420834882

$11.60

Graduated Spacer This part replaces 420947390.

420947396

$27.49

Oil Pump Shaft

420837916

$24.99

Oil Pump Cover

420611950

$56.99

O-Ring

420631830

$2.11

Needle Pin

420632221

$4.44

Oil Pump Rotor

420256836

$75.99

Oil Pump Cover

420611980

$36.99

Idle Gear, 26 Teeth

420835321

$24.99

Oil Pump Gear, 28 Teeth

420834887

$11.60

Gasket

420431871

$11.60

Oil Water Heat Exchanger

420656698

$116.49

Torx Flange Screw M6 X 45

420440324

$0.98
