Description

Price

1

Idle Gear, 31 Teeth

420835067

$23.49

2

Graduated Spacer This part replaces 420947390.

420947396

$27.49

3

Torx Flange Screw M6 X 20

420440207

$3.06

4

Water Pump Gear

420835230

$7.65

5

Needle Pin

420232431

$4.39

6

Thrust Washer

420827261

$7.51

7

Oil Seal

420931802

$7.65

8

Waterpump Shaft

420820150

$25.99

9

Seal

420850946

$33.99

10

Water Impeller

420222880

$7.52

11

Thermostat

420822655

$33.99

12

Water Pump Housing O-Ring

420950896

$11.59

13

Thermostat Cover

420922150

$8.57

14

Water Pump Housing

420922293

$71.99

15

Water Pump Housing Gasket

420431682

$19.49

16

Torx Flange Screw M6 X 55

420440702

$3.06

17

Seal Washer

420230415

$1.79

18

Torx Flange Screw M6 X 30

420440647

$2.00

19

Temperature Sensor

278002895

$39.99

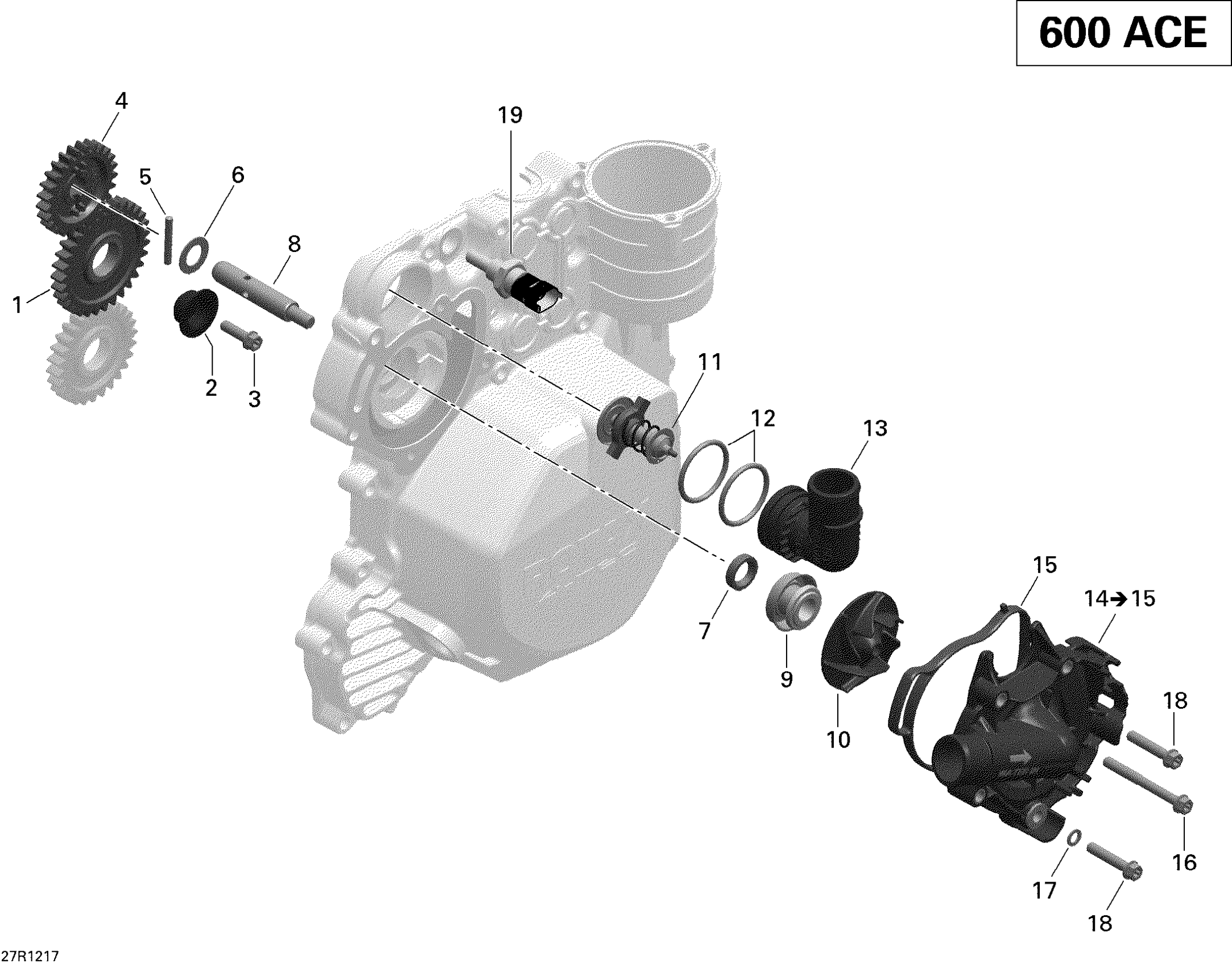

Ski-Doo Expedition Sport 600ACE LFF, 2012 Engine Cooling Diagram
