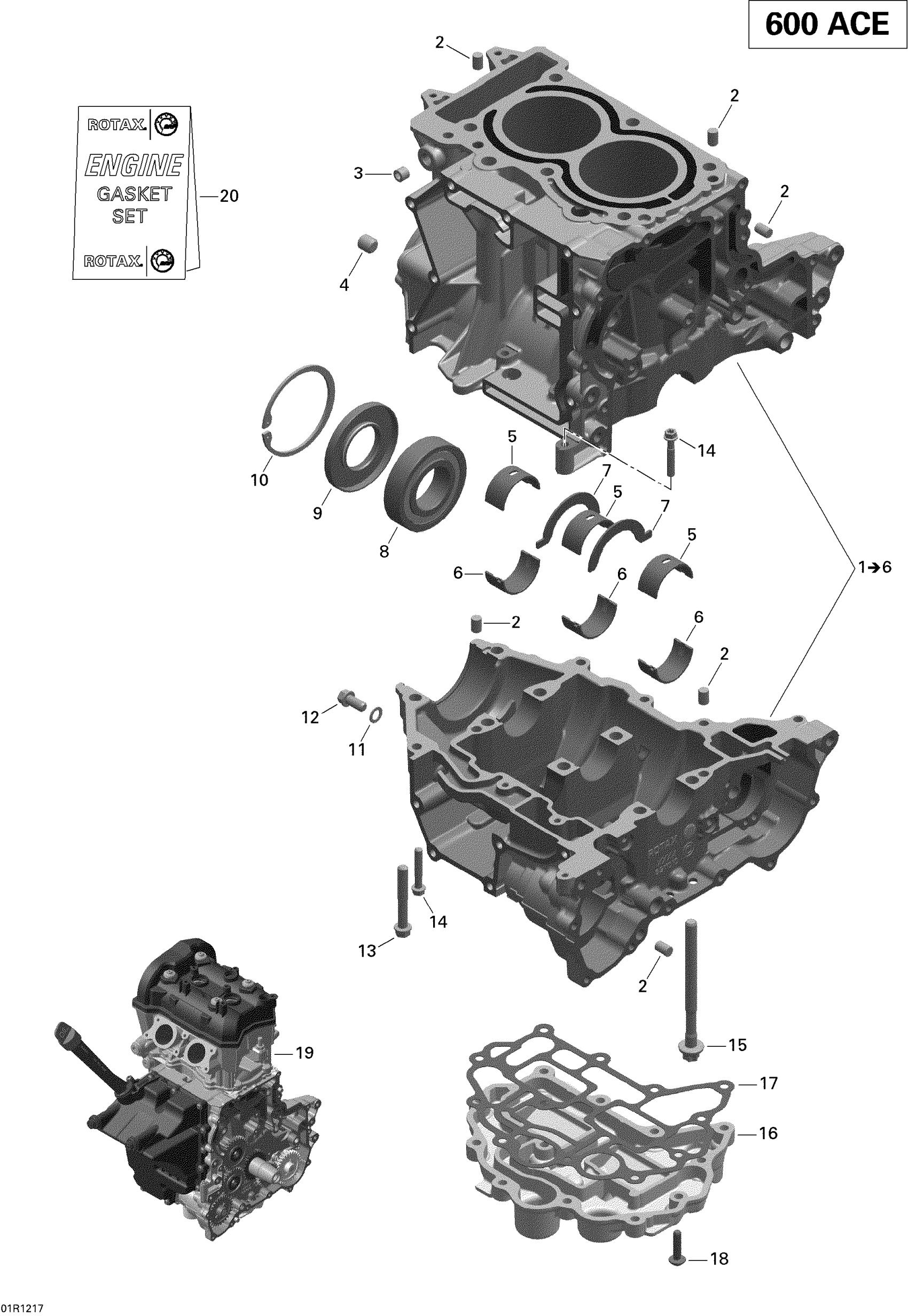

Ski-Doo Expedition Sport 600ACE LFF, 2012 01- Engine Block Diagram

Crankcase Ass'y | Includes no. 1-6

420892853

$2.00

Center Pin 8 X 12

420632010

$4.01

Plug Screw M10 X 1

420641323

$14.28

Threaded Pin

420840500

$7.65

Cushion

420933180

$17.58

Cushion

420933185

$18.49

Ring Half

420933140

$11.60

Ball Bearing

420832232

$13.16

Oil Seal

420431402

$19.49

Retaining Ring

420845790

$7.51

Sealing Ring

420950141

$2.00

Torx Flange Screw M8 X 16

420440852

$4.12

Torx Flange Screw M8 X 55

420641213

$7.41

Torx Flange Screw M6 X 35

420641258

$3.38

Torx Flange Screw M9 X 113

420940945

$13.70

Oil Sump

420911124

$79.49

Gasket

420431630

$14.83

FLANGED TORX SCREW M6 X 25 - Call your local BRP dealership | Tightening Torque 9 Nm +/- 12%

420841546

Unavailable

Long Block 602

420060203

$3.00

Gasket Set Engine 602

420686024

$327.99
