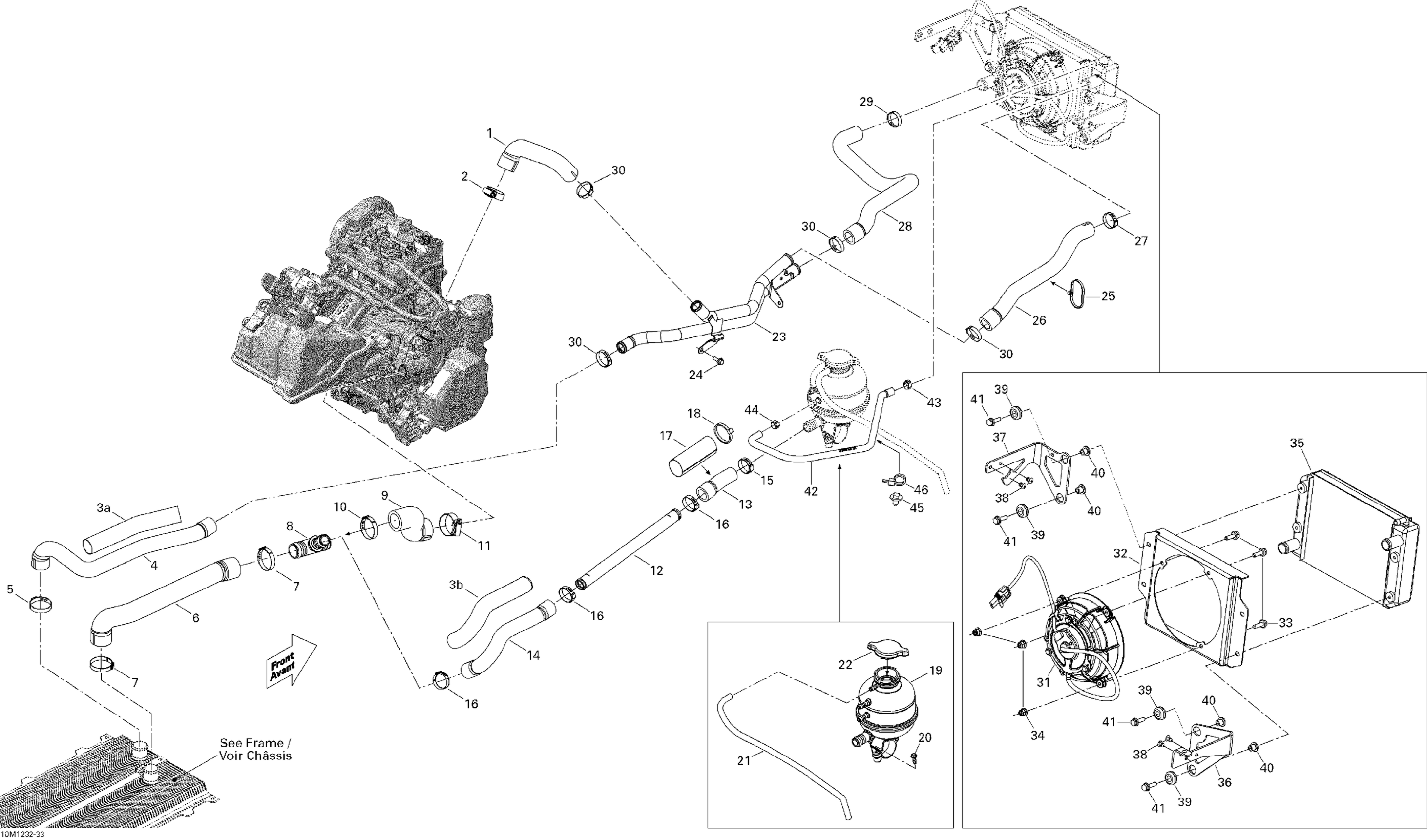

Ski-Doo Expedition Sport 600ACE LFF, 2012 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000932

$21.99

2

Aba Gear Clamp, 26-38 MM

509000443

$12.49

3a

Protector Tube 32 Mm 1000Mm Long

219704421

$27.99

3b

Protector Tube 32 Mm 1000Mm Long

219704421

$27.99

4

Hose

509000634

$24.49

5

Oetiker Gear Clamp, 36.5-706R

509000529

$10.99

6

Radiator Return Hose

509001062

$16.99

7

Oetiker Gear Clamp, 36.5-706R

509000529

$10.99

8

T-Fitting

509000372

$10.99

9

Engine Inlet Hose | Engine 600 ACE

509000565

$15.49

10

Oetiker Gear Clamp, 36.5-706R

509000529

$10.99

11

Aba Gear Clamp, 26-38 MM

509000443

$12.49

12

PIPE - Call your local BRP dealership

509000644

Unavailable

13

HOSE - Call your local BRP dealership

509000698

Unavailable

14

HOSE - Call your local BRP dealership

509000563

Unavailable

15

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

16

Crimp Clamp

293650099

$4.39

17

Protector Tube

707001349

$21.99

18

Tie-Rap 180 mm

414115200

$1.49

19

Coolant Tank

509000368

$94.99

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

21

Hose 6 Mm 15000Mm Long

219704360

$134.99

22

Radiator Pressure Cap

509000180

$14.99

23

Water Pipe

509000800

$114.99

24

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.19

25

Tie-Rap 180 mm

414115200

$1.49

26

RADIATOR HOSE - Call your local BRP dealership

509000636

Unavailable

27

Oetiker Gear Clamp

293650165

$5.49

28

RADIATOR HOSE - Call your local BRP dealership

509000637

Unavailable

29

Oetiker Gear Clamp

293650165

$5.49

30

Clamp

509000735

$7.69

31

Fan

709200573

$264.99

32

Fan Support

509000714

$53.99

33

Hex. Flange Screw M6 X 20

207662044

$2.09

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

35

Radiator

509000756

$184.99

36

RH RADIATOR SUPPORT - Call your local BRP dealership

509000754

Unavailable

37

LH RADIATOR SUPPORT - Call your local BRP dealership

509000755

Unavailable

38

Avex Rivet

390909100

$1.49

39

Grommet

709000582

$4.79

40

Bushing

293900100

$7.79

41

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

42

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

43

Oetiker Clamp

293650046

$2.99

44

Oetiker Gear Clamp

293650025

$3.19

45

Mount Dart

293730040

$1.49

46

Tie-Rap 180 mm

414115200

$1.49
