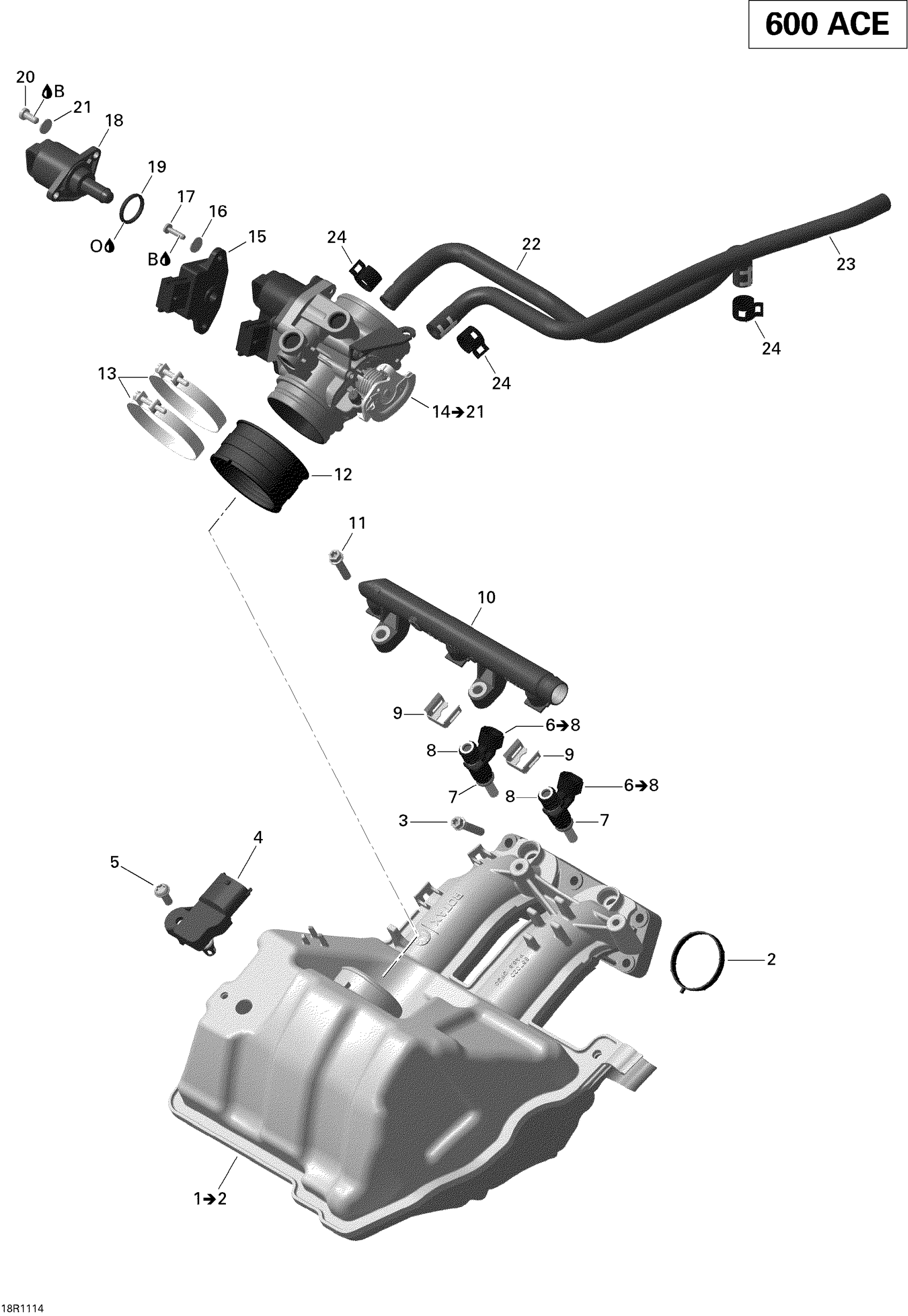

Ski-Doo Expedition Sport 600ACE, 2011 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold Ass'y | Includes 1 To 2

420867020

$199.97

2

Gasket

420431660

$10.21

3

Torx Flange Screw M6 X 30

420440647

$1.91

4

Pressure And Temperature Sensor

707000995

$81.31

5

Torx Flange Screw M6 X 16

420641588

$2.00

6

Injection Valve Ass'y | Includes 18 to 20

420874847

$128.24

7

O-Ring

420431890

$5.69

8

O-Ring

420631220

$13.18

9

Injector Clip

420853030

$2.82

10

Fuel Rail

420874961

$14.90

11

Torx Flange Screw M6 X 25

420440234

$2.91

12

Intake Adaptor

420460495

$9.03

13

Clamp

420251480

$13.18

14

Throttle Body Ass'y | Includes 14 To 21

420296879

$344.75

15

Position Sensor

420866120

$89.52

16

Flat Washer 4 mm, Stainless

234042600

$1.06

17

Phillips Screw M4 X 16

208641660

$0.85

18

Idle Air Control Valve

420665941

$169.37

19

O-Ring

420631780

$4.15

20

Binding Head Screw M5 X 16

420440911

$13.18

21

Snap Ring

420845710

$3.88

22

MOLDED HOSE - Call your local BRP dealership

420460910

Unavailable

23

MOLDED HOSE - Call your local BRP dealership

420460915

Unavailable

24

Clamp

420853511

$7.09

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
