Description

Price

11

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

13

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

15

Flat Washer

224061201

$1.37

24

Hex Torx Truss M8 X30

250000745

$3.17

29

Flat Washer 8 mm

250200128

$4.44

33

Rivet | Model-T3

293150067

$2.89

34

Pop Rivet 3/16”

390410100

$0.57

38

Tie Wrap 368 mm

293750008

$1.04

41

Pop Rivet 3/16"

293150100

$1.09

44

Black, Dart

414644300

$0.98

47

Upper Backrest Axle

510004377

$44.99

48

Rubber Shim

510004378

$10.99

49

Washer

510004379

$10.01

57

Foam Support

510004423

$38.99

64

COURROIE DE SIEGE - Call your local BRP dealership

510004768

Unavailable

65

Front Seat Base

510004775

$93.99

66

Front Seat Foam

510004777

$219.99

69a

Backrest Foam

510004782

$124.99

69b

Backrest Cover | Not Shown

510005309

$176.99

71

Rear Seat Foam

510004791

$294.99

90

Seat Cover

510005181

$219.99

126

Rear Seat Cover

510005399

$230.99

134

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

148

RH ARM, BLACK - Call your local BRP dealership

510005548

Unavailable

150

LH ARM, BLACK - Call your local BRP dealership

510005549

Unavailable

214

Rubber Stopper

708000759

$4.19

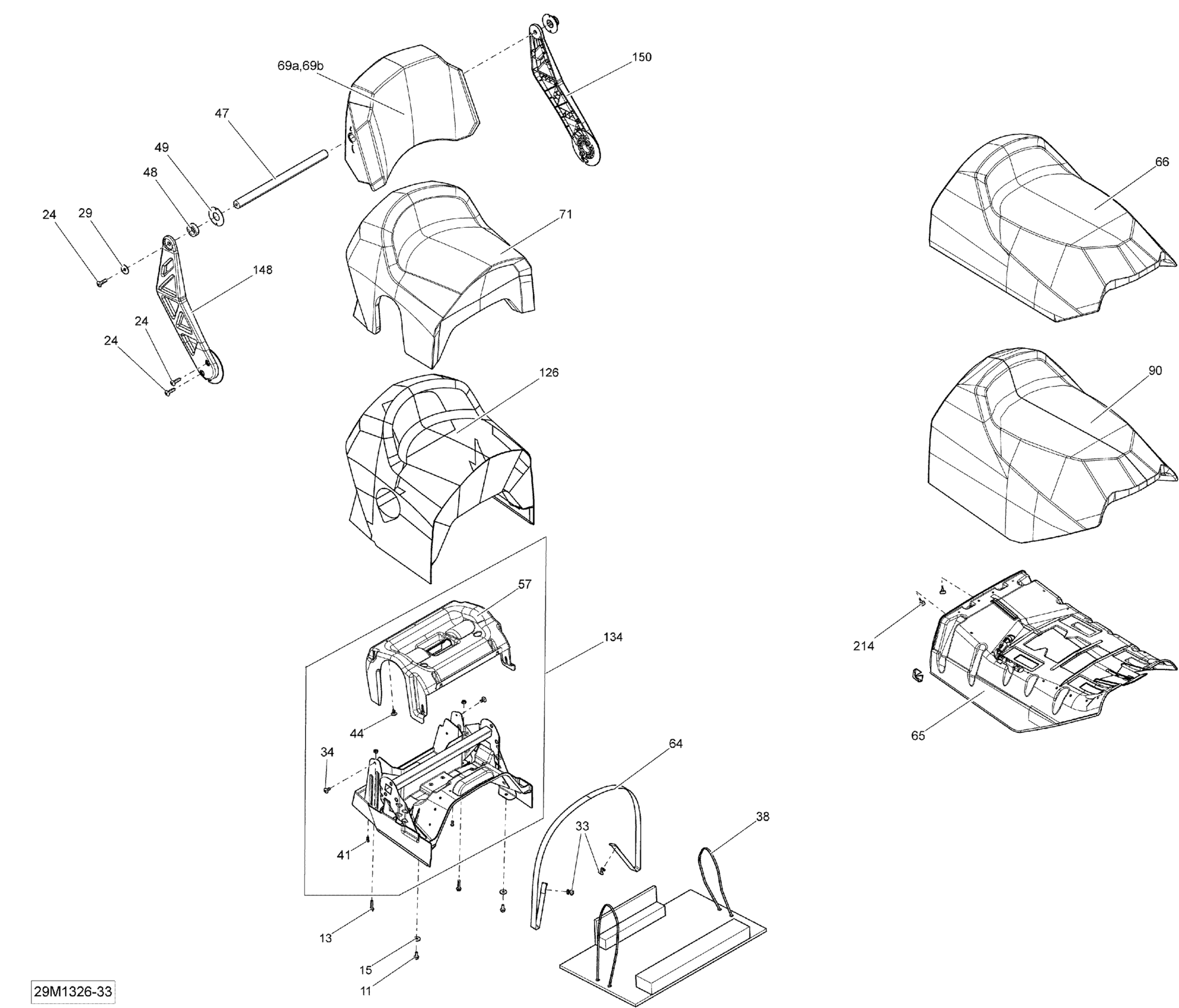

Ski-Doo EXPEDITION SPORT 600 ACE (4-TEMPS) XP, 2013 09- Seat Diagram

Hex. Screw M6 X 16, Scotch Grip | Europe

Hex. Flange Screw M6 X 30, Scotch Grip

Flat Washer

Hex Torx Truss M8 X30

Flat Washer 8 mm

Rivet | Model-T3

Pop Rivet 3/16”

Tie Wrap 368 mm

Pop Rivet 3/16"

Black, Dart

Upper Backrest Axle

Rubber Shim

Washer

Foam Support

COURROIE DE SIEGE - Call your local BRP dealership

Front Seat Base

Front Seat Foam

Backrest Foam

Backrest Cover | Not Shown

Rear Seat Foam

Seat Cover

Rear Seat Cover

Seat Base Ass'y | Includes 20a to 20a3

RH ARM, BLACK - Call your local BRP dealership

LH ARM, BLACK - Call your local BRP dealership

Rubber Stopper
