Description

Price

12

Hex. Flange Screw M6 X 20

207662044

$2.00

13

Panel Nut M5 X 0.8

250000958

$4.23

14

Screw M4 X 16

250000725

$3.49

15

Torx Screw M5 X 20

250000724

$1.69

16

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

17

Pop Rivet 3/16"

293150103

$0.55

19

Tie Wrap 142 mm

293750002

$1.25

21

Flat Washer 6 mm

234062410

$0.77

22

Not Available As Spare Parts

XXX

Unavailable

23

Rear Light Support

511000625

$45.99

24

Radiator Cover, 154'' | LT

511000681

$36.99

25

Rear Cover Support | Not Shown

511000701

$37.99

26

Luggage Rack

511000705

$121.99

33

Not Available As Spare Parts

XXX

Unavailable

34

Bulb

520000758

$9.10

35

Rear Light Ass'y

520000679

$105.99

37

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

39

RH Cap

520000985

$19.99

40

LH Cap

520000986

$18.49

42

Stopper Rubber

705014429

$5.95

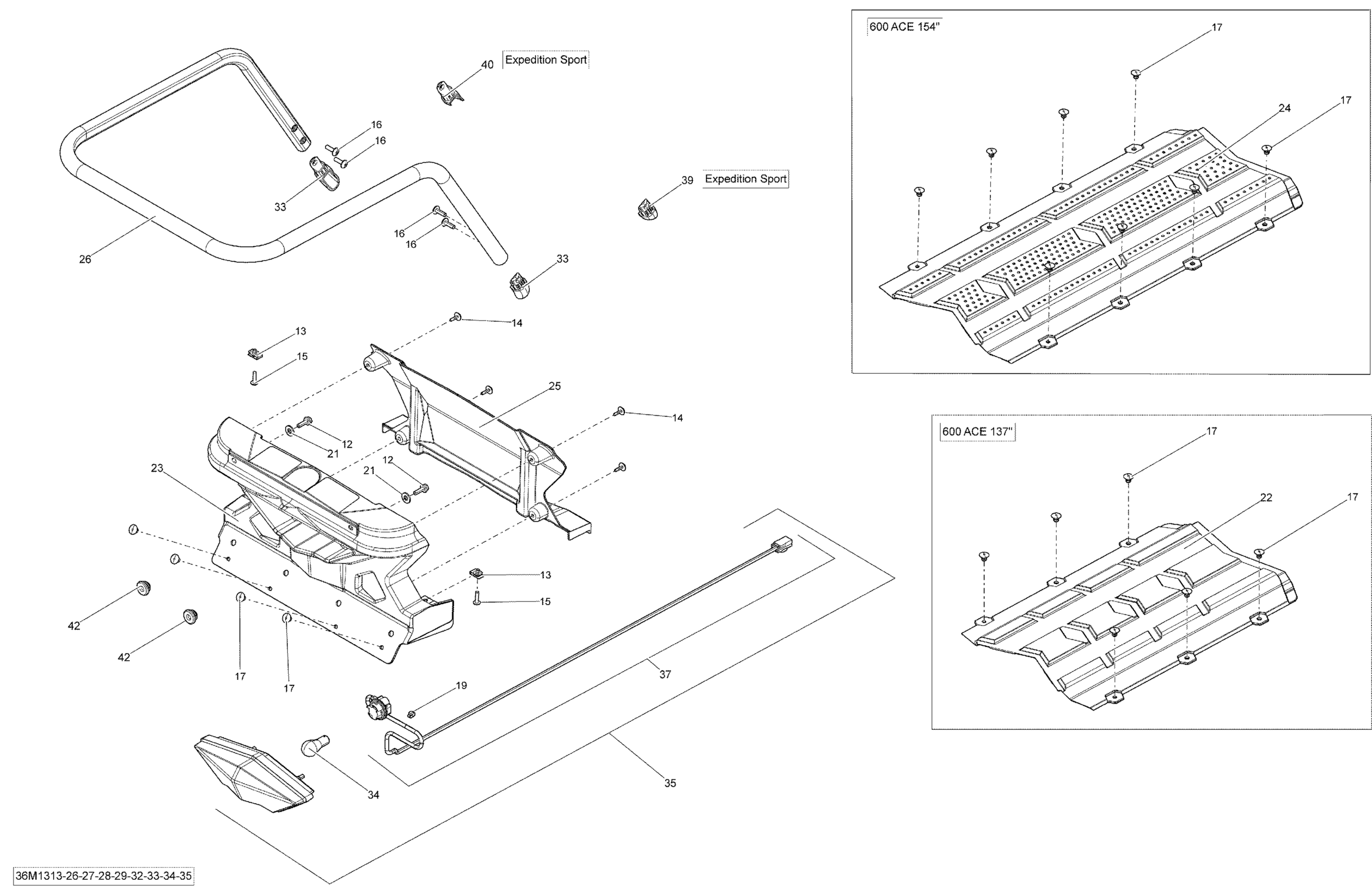

Ski-Doo EXPEDITION SPORT 600 ACE (4-TEMPS) XP, 2013 09- Luggage Rack Diagram

Hex. Flange Screw M6 X 20

Panel Nut M5 X 0.8

Screw M4 X 16

Torx Screw M5 X 20

Torx Screw M6 X 20, Scotch Grip

Pop Rivet 3/16"

Tie Wrap 142 mm

Flat Washer 6 mm

Not Available As Spare Parts

Rear Light Support

Radiator Cover, 154'' | LT

Rear Cover Support | Not Shown

Luggage Rack

Not Available As Spare Parts

Bulb

Rear Light Ass'y

WIRING HARNESS ASS'Y - Call your local BRP dealership

RH Cap

LH Cap

Stopper Rubber
