Description

Price

1

FRAME EXPEDITION LFF - Call your local BRP dealership

415129829

Unavailable

2

E-MODULE - Call your local BRP dealership | Includes 2 to 10

518327569

Unavailable

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8

Hemlock Rivet, 6.5 mm

293150119

$3.88

9

Leg Cushion

505073317

$5.75

10

Torx Truss Screw M6 X 12

250000767

$1.91

11a

Hex. Flange Screw M6 X 20

207662044

$1.91

11b

Hex. Flange Screw M6 X 16

207661644

$0.70

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

RH Reinforcement

518324874

$24.60

15

LH Reinforcement

518324875

$24.60

16

RH Deflector, Black Polypropylene

518325782

$11.42

17

LH Deflector, Black Polypropylene

518325783

$11.42

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

19

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

20

RH Slide Bracket

518325955

Unavailable

21

LH Slide Bracket

518325956

$44.75

22

RH Rear Base

518325973

$17.88

23

LH Rear Base | Includes 10v to 10x

518325974

$17.88

24

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

25

LH Roller | Includes 10bd to 10be

518325160

$76.09

26

Adhesive Patch

518325560

$4.21

27

Insert

293450275

$11.36

28

Seal

518326656

$8.18

29

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$679.07

30

Stavex Rivet

293150144

$0.75

31

Rear Cap

518327105

$20.12

32

RH Support | LT

518326482

Unavailable

33

LH Stirup

518326820

$35.04

34

Panel Nut M5 X 0.8

250000958

$4.00

35

Black, Plug

293730052

$6.18

36

U-Attach

518326961

$8.19

37

Ornit Rivet 6,5 X 14.5

293150266

$1.88

38

Tork Screw M6 X 16

250000534

$2.00

39

Hex. Flange Nut M6

233061414

$1.54

40

Support

518326960

$9.42

41

Tork Screw M6 X 18

250000536

$2.00

42

Flat Washer

250200039

$0.70

43

Attach | Includes 10n to 10p

518326986

$9.42

44

Elastic Stop Nut M6

232561414

$1.78

45

Torx Screw M8 X 55

250000535

$3.01

A

Avex Rivet

390909200

$0.28

B

Avex Rivet

390909100

$0.28

C

Stavex Rivet

293150144

$0.75

D

Henrob Rivet

293150146

$1.87

E

Hemlock Rivet, 6.4 mm

293150174

$6.24

F

Ornit Rivet 6,5 X 14.5

293150266

$1.88

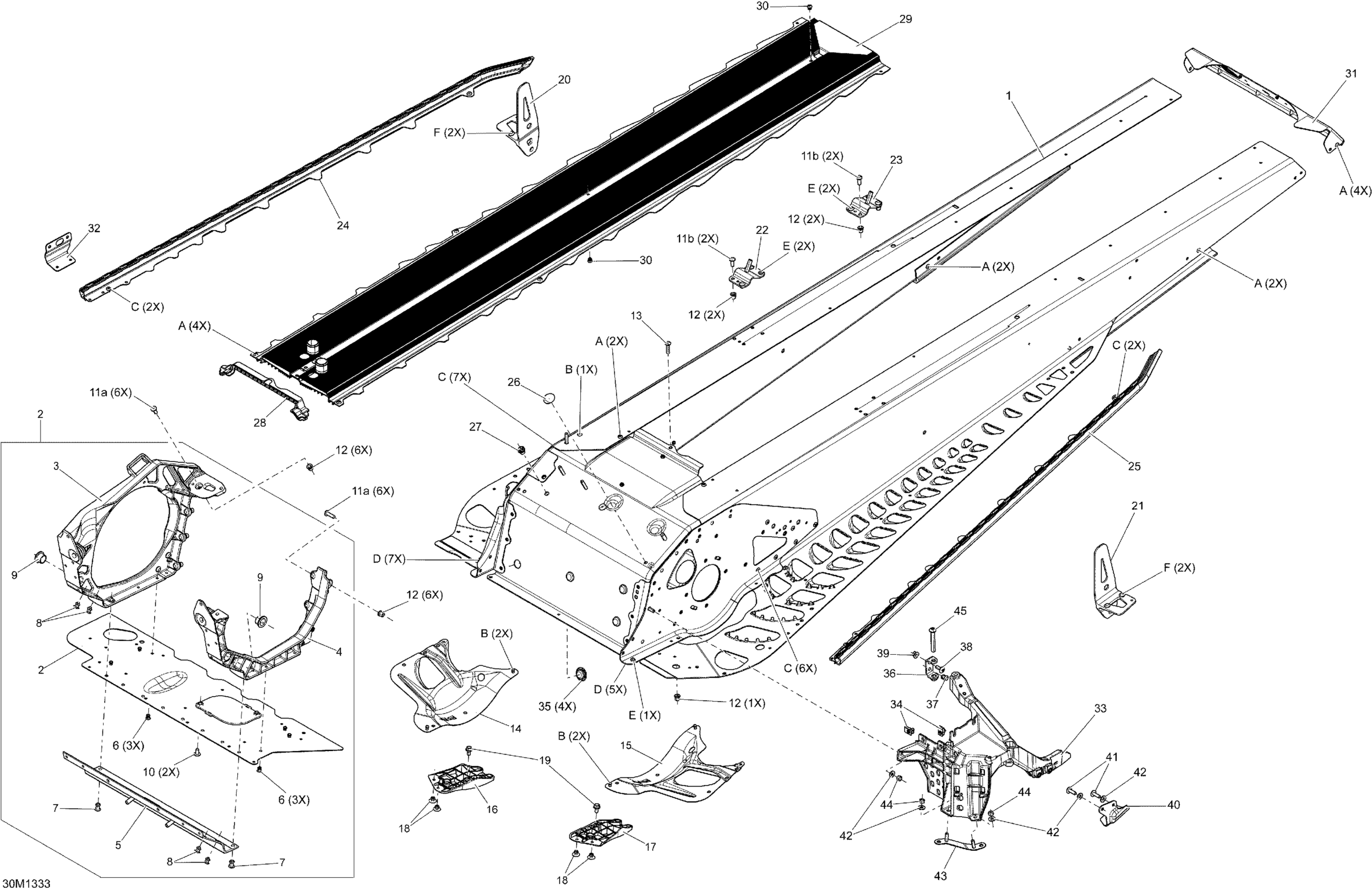

Ski-Doo EXPEDITION SPORT 600 ACE (4-TEMPS) XP, 2013 Frame Diagram
