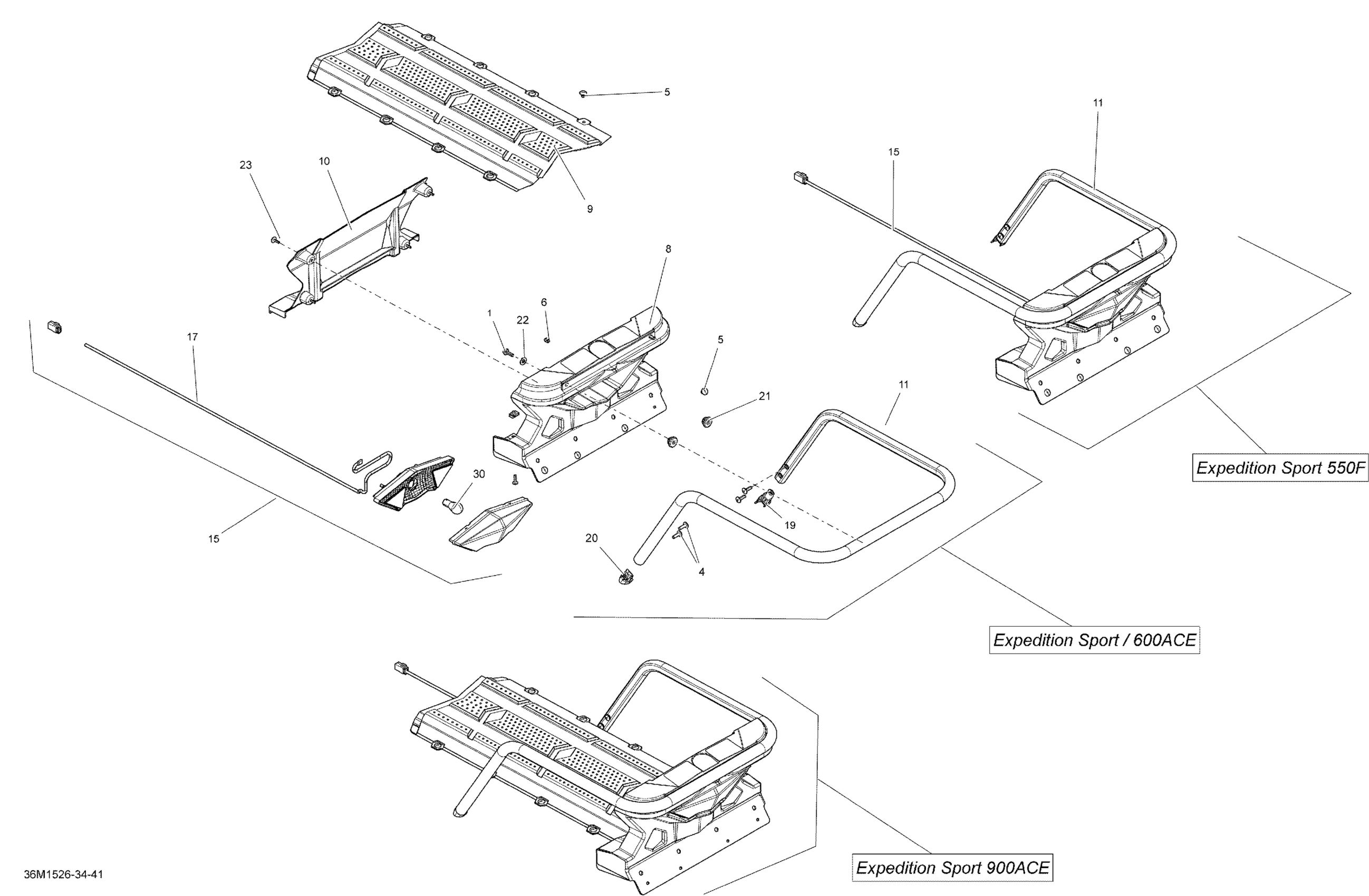

Ski-Doo Expedition Sport 550F XP154, 2015 Luggage Rack _36M1526 Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662044

$1.91

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M5 X 20

250000724

$1.60

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

Pop Rivet 3/16"

293150103

$0.52

Tie Wrap 142 mm

293750002

$1.01

Rear Light Support

511000625

$45.49

Not Available As Spare Parts

XXX

Unavailable

Rear Cover Support | Not Shown

511000701

$34.30

Luggage Rack

511000705

$115.64

Rear Light Ass'y

520000679

$100.72

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

RH Cap

520000985

$14.90

LH Cap

520000986

$14.90

Stopper Rubber

705014429

$6.09

Flat Washer 6 mm

234062410

$0.73

Screw M4 X 16

250000725

$3.30

Bulb

520000758

$8.60
