Description

Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Torx Truss Screw M6 X 16

250000721

$1.69

4

Torx Screw K50 X 16

250000720

$1.69

5

Pop Rivet 3/16"

293150103

$0.55

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Pop Rivet 3/16"

390402300

$0.75

9

Black, Nylon Cap

414916600

$4.69

10

RH Foam Upper

502007210

$15.99

10

LH Foam Upper

502007211

$17.49

12

RH Middle Foam

502007212

$21.99

13

LH Middle Foam

502007213

$21.99

14

RH Lower Foam

502007214

$15.99

14

LH Lower Foam

502007215

$15.99

15

RH Bottom Pan

502006914

$56.99

16

Front Bumper

502006944

$121.99

17

Gasket, Neoprene 2000Mm Long

219704476

$15.36

18

Black, Front Bottom Pan

502006971

$114.99

19

LH Bottom Pan

502007051

$56.99

20

Deep Black Bottom Pan Cap

502007068

$70.99

23

Washer

517124300

$0.19

24

Panel Nut M6 X 1.0

250100198

$2.11

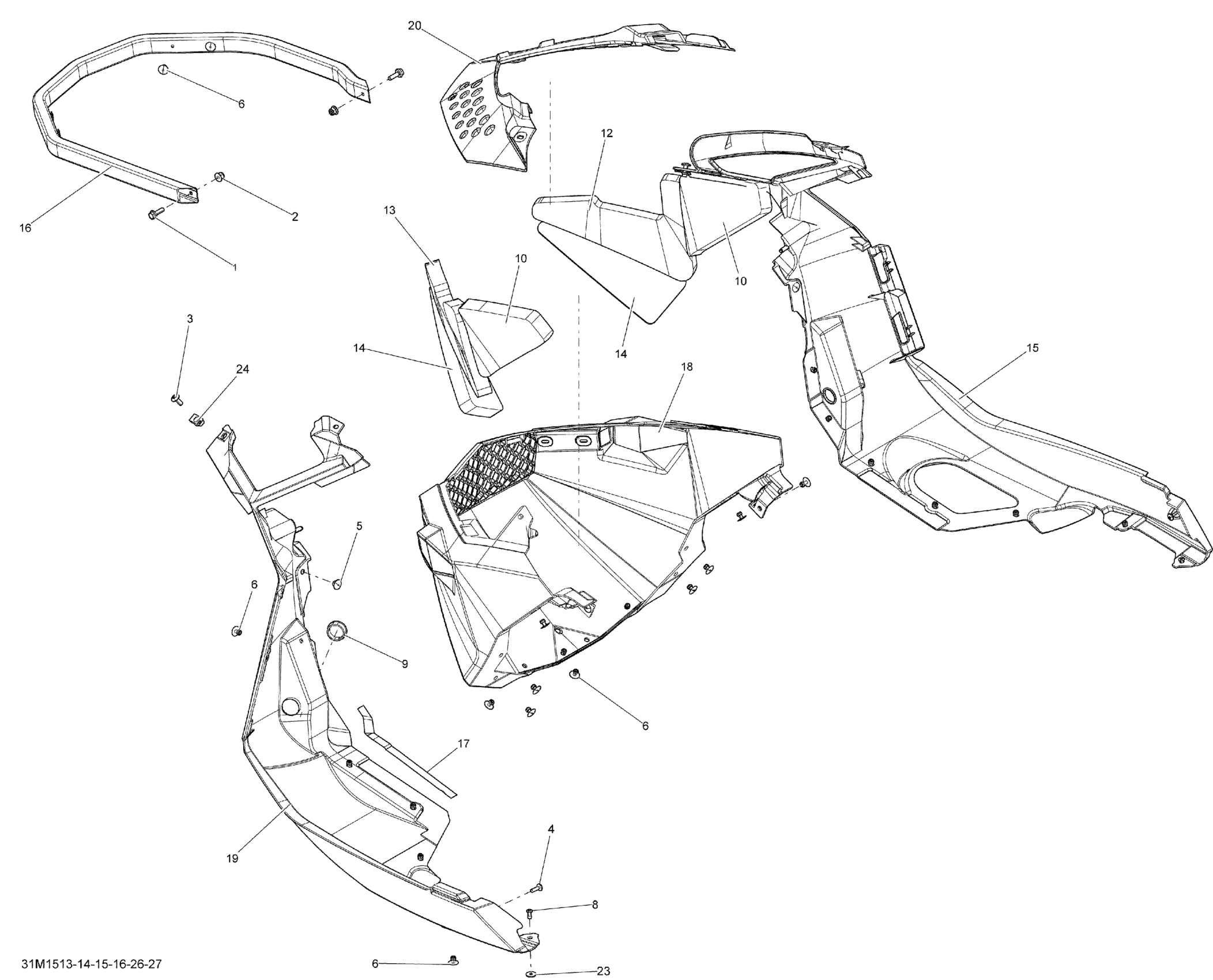

Ski-Doo Expedition Sport 550F XP154, 2015 09- Bottom Pan _31M1526 Diagram

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Torx Truss Screw M6 X 16

Torx Screw K50 X 16

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Black, Nylon Cap

RH Foam Upper

LH Foam Upper

RH Middle Foam

LH Middle Foam

RH Lower Foam

LH Lower Foam

RH Bottom Pan

Front Bumper

Gasket, Neoprene 2000Mm Long

Black, Front Bottom Pan

LH Bottom Pan

Deep Black Bottom Pan Cap

Washer

Panel Nut M6 X 1.0
