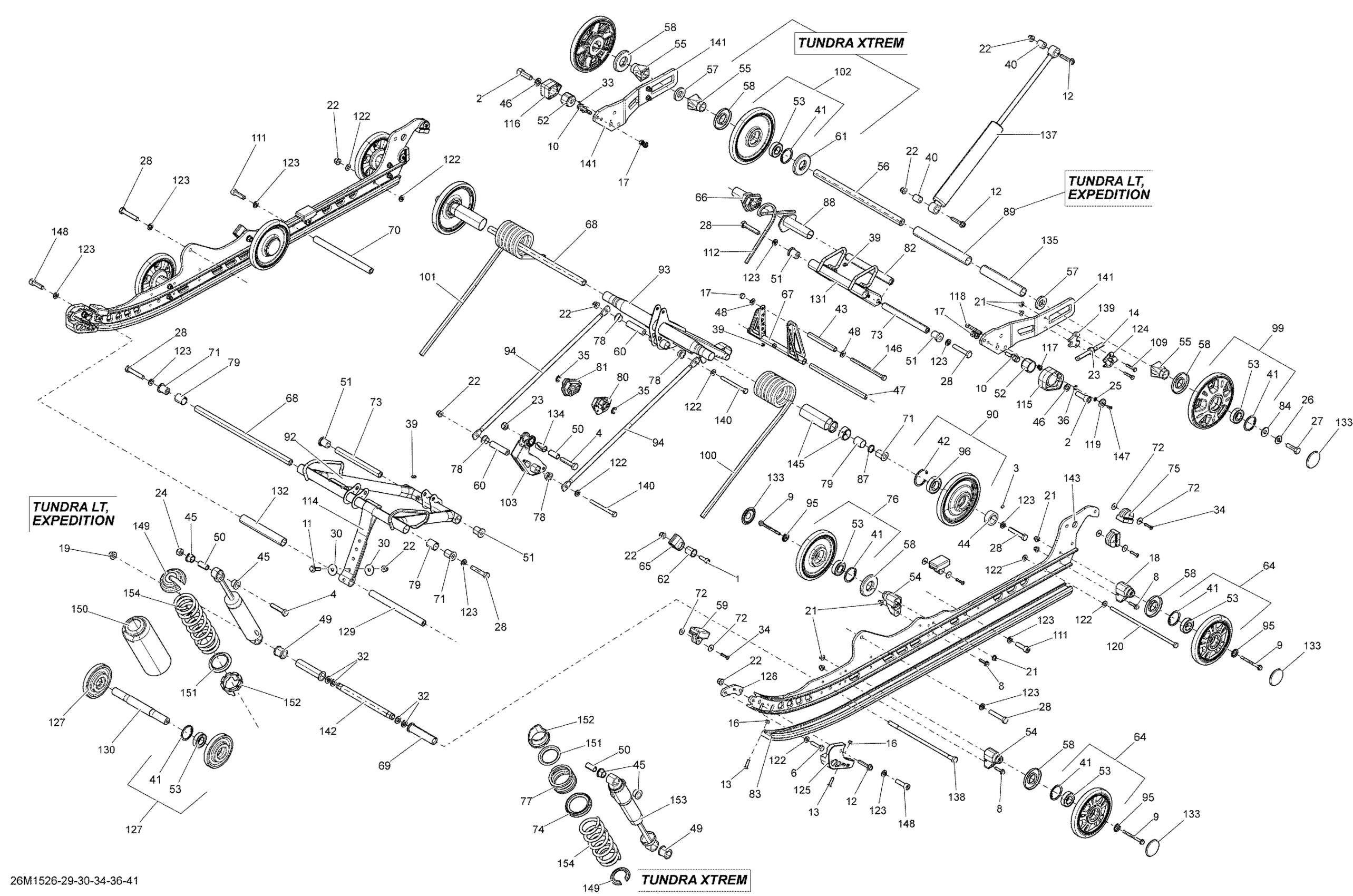

Ski-Doo Expedition Sport 550F XP154, 2015 Rear Suspension _26M1526 Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$1.74

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

3

Socket Set Screw M6 X 8

206260844

$1.25

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

6

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Hex. Flange Screw M6 X 25

207662556

$3.61

9

Hex. Flange Screw M6 X 70

207667056

$3.61

10

Hex. Flange Screw M8 X 25

207682534

$1.06

11

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

12

Hex. Flange Screw M8 X 40

207684044

$1.25

13

Phillips Screw M6 X 25

208562531

$1.74

14

Hex Screw M10 x 100

230100054

$5.29

16

Elastic Stop Nut M6

232561434

$1.55

17

Hex. Elastic Stop Nut M8

232581414

$0.47

18

Casted Support

503193894

$12.75

19

Flange Elastic Nut M10

233201466

$2.63

21

Hex. Flange Elastic Nut M6

233261466

$1.66

22

Elastic Flange Nut M8

233281466

$0.83

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

Elastic Locking Nut M10

233601466

$1.74

25

Flat Washer M5

234051410

$0.44

26

Conical Spring Washer 10 mm

234201474

$1.39

27

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

28

Hex. Screw S.Grip M10 X 55

250000605

$6.18

30

Flat Washer 8 mm

250200128

$1.74

32

Flat Washer

250200143

$2.63

33

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

34

Pop Rivet 3/16"

293150013

$1.11

35

E-Circlip

293370013

$0.62

36

Circlip

293370068

$0.92

39

Grease Fitting

408200700

$2.80

40

Bushing

414936000

$11.55

41

Retaining Ring

415129371

$8.92

42

Retaining Ring

415129780

$13.88

43

Upper Axle, Pivot Arm

503144300

$11.98

44

Retaining Ring

503168800

$12.65

45

Urethane Bushing

503189117

$6.88

46

Washer | 7415/7416. 7417/7418.

503189148

$2.72

47

Pivot Arm Axle

503189156

$20.74

48

Washer

503189157

$3.20

49

Bushing

503189271

$10.46

50

Bushing | Includes 240d to 240d1

503189282

$4.18

51

Bushing

503189324

$11.17

52

Block Guide

503189488

$37.66

53

Ball Bearing | Package-STD

503190396

$7.12

54

Casted Support

503193894

$12.75

55

Rear Wheel Spacer

503190428

$6.06

56

Rear Axle

503190429

$59.97

57

Washer

503190432

$12.52

58

Labyrinth Seal

503190434

$4.29

59

Rubber Stopper

503190576

$10.23

60

Axle Bar (Long)

503190643

$15.35

61

Labyrinth Seal

503190682

$5.85

62

Spring Support Kit

861805547

$8.14

64

Full Moon Wheel Ass'y, 147 mm

503191624

$46.12

65

Spring Support Kit

861805547

$8.14

66

RH Spring Cam

503191190

$13.78

67

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

68

Upper Shaft

503191215

$36.12

69

Center Bushing

503191259

$8.97

70

Axle Strap

503191260

$29.20

71

Bushing

503191262

$13.60

72

Washer

503191273

$1.06

73

Lower Shaft

503191279

$27.66

74

Not Available As Spare Parts

XXX

Unavailable

75

Rubber Stopper

503191291

$18.43

76

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

77

Not Available As Spare Parts

XXX

Unavailable

78

Swivel Bushing

503191555

$5.71

79

Extended Bushing

503191556

$5.71

80

LH Cam Adjuster

503191565

$13.95

81

RH Cam Adjuster

503191566

$13.95

82

Cam Axle

503191608

$15.03

83

Black Slider, 154"

503192618

$33.05

84

Washer

503191910

$2.25

87

Washer

503191651

$7.49

88

LH Spring Cam

503191668

$10.18

89

Rear Spacer, Long

503191736

$15.35

90

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

92

Front Arm | Includes 2000a to 2000b

503191752

$359.97

93

Rear Arm | Includes 3000a to 3000a7

503191762

$96.89

94

Link Rod

503191765

$17.66

95

Wheel Cup M6

503191820

$4.66

96

Ball Bearing

503193548

$16.89

99

Full Moon Wheel Ass'y, 165 mm

503192130

$49.97

100

Black, LH Spring Square

503192271

$78.43

101

Black, RH Spring Square

503192270

$78.43

102

Not Available As Spare Parts

XXX

Unavailable

103

Rocker

503192211

$78.43

109

Hex. Cap Screw M6 X 30

207063054

$4.41

111

Socket Head Screw M10 X 35

205503554

$6.18

112

Spring

503194624

$29.97

114

Stopper Strap

503192360

$19.97

115

LH Block

503192426

$12.69

116

RH Block

503192427

$12.69

117

Compression Spring

503192436

$37.66

118

Rode

503192437

$5.85

119

Handle

503192438

$4.66

120

Bolt M8 X 248mm

503192440

$29.97

122

Washer

503192494

$3.11

123

Washer

503192496

$0.75

124

Tensioner

503192583

$5.85

125

LH Protector

503192609

$26.89

125

RH Protector

503192610

$26.89

127

Black, Wheel Ass'y, 100 mm

503192611

$32.28

128

Plate

503192612

$11.45

129

Axle Strap

503192613

$34.58

130

Front Wheel Axle

503192644

$146.12

131

Runner Pivot | Includes 100c to 100c3

503192647

$55.35

132

Spacer

503196943

$7.58

133

Black, Wheel Cap

503192771

$2.28

134

Bushing

503193037

$15.35

135

Not Available As Spare Parts

XXX

Unavailable

137

Rear Shock HPG Seal

503193193

$238.43

138

Bolt M10 X 251MM

503193227

$16.12

139

Spacer

503193250

$13.95

140

Screw M8 X 90

503193372

$4.28

141

Black, RH Pivot Support Long

503195759

$83.82

141

Black, LH Pivot Support Long

503195760

$83.82

142

Pivot Axle

503193435

$38.43

143

Runner

503193723

$230.74

145

Bushing

572080700

$15.26

146

Bolt M8, Short

732601197

$15.06

147

Torx Screw M5 X 14

250000742

$1.20

148

Socket Head Screw M10 X 35

205503554

$6.18

149

Spring Stopper

706200881

$10.30

150

Protector

503193663

$35.35

151

Spring Guide

503191872

$2.18

152

Adjustment Cam

505073625

$12.18

153

Center Shock

503192266

$157.66

154

Black, Spring

503191882

$59.97
