Description

Price

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

8

Hex. Nut M10 X 1.5

232006414

$1.37

11

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

14

Bonded Washer

250200100

$2.11

20

Oil Seal

293200168

$14.49

21

O-Ring

293300122

$2.11

22

Tight Seal

293300130

$7.51

25

Ball Bearing

293350115

$12.11

26

Ball Bearing

293350059

$30.99

29

Ball Bearing

293350074

$38.49

47

Male Connector

414580700

$4.12

53

Sprocket, 19 Teeth

504152031

$109.99

56

Circlip

504152282

$3.17

57

Oil Seal

293200159

$16.25

58

Circlip

504152572

$6.95

59

Circlip

504152576

$9.99

60

Kit Sprocket This part replaces 504152593.

861805538

$164.99

61

Circlip

504152582

$9.99

62

Adjustment Screw

504152602

$12.49

63

Magnetic Cap

504152619

$23.49

64

Magnetic Cap

504152619

$23.49

65

Shim

504152628

$10.99

66

Drive Chain, 102 Links

504152579

$153.49

69

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

70

Tensioner chain

504153429

$15.99

77

Spring Washer M10

504152784

$7.65

81

Tensioner Axle

504152841

$16.34

82

Cap

504152860

$20.49

87

Rotation Sensor

504152896

$37.99

94

Retaining Ring

504153886

$21.99

103

Slider Chain

504152739

$65.99

110

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

111

Casting Cover

504153151

$194.99

117

Chaincase

504153181

$349.99

119

Bearing Housing

504153185

$29.49

124

Drive Axle Ass'y

504154054

$529.99

128

Polyurethane Hose 10000Mm Long

219704410

$56.99

134

Plate | Not Shown

518325816

$79.99

140

Countershaft

504153000

$593.49

143

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

150

Not Available As Spare Parts

XXX

Unavailable

151

Not Available As Spare Parts

XXX

Unavailable

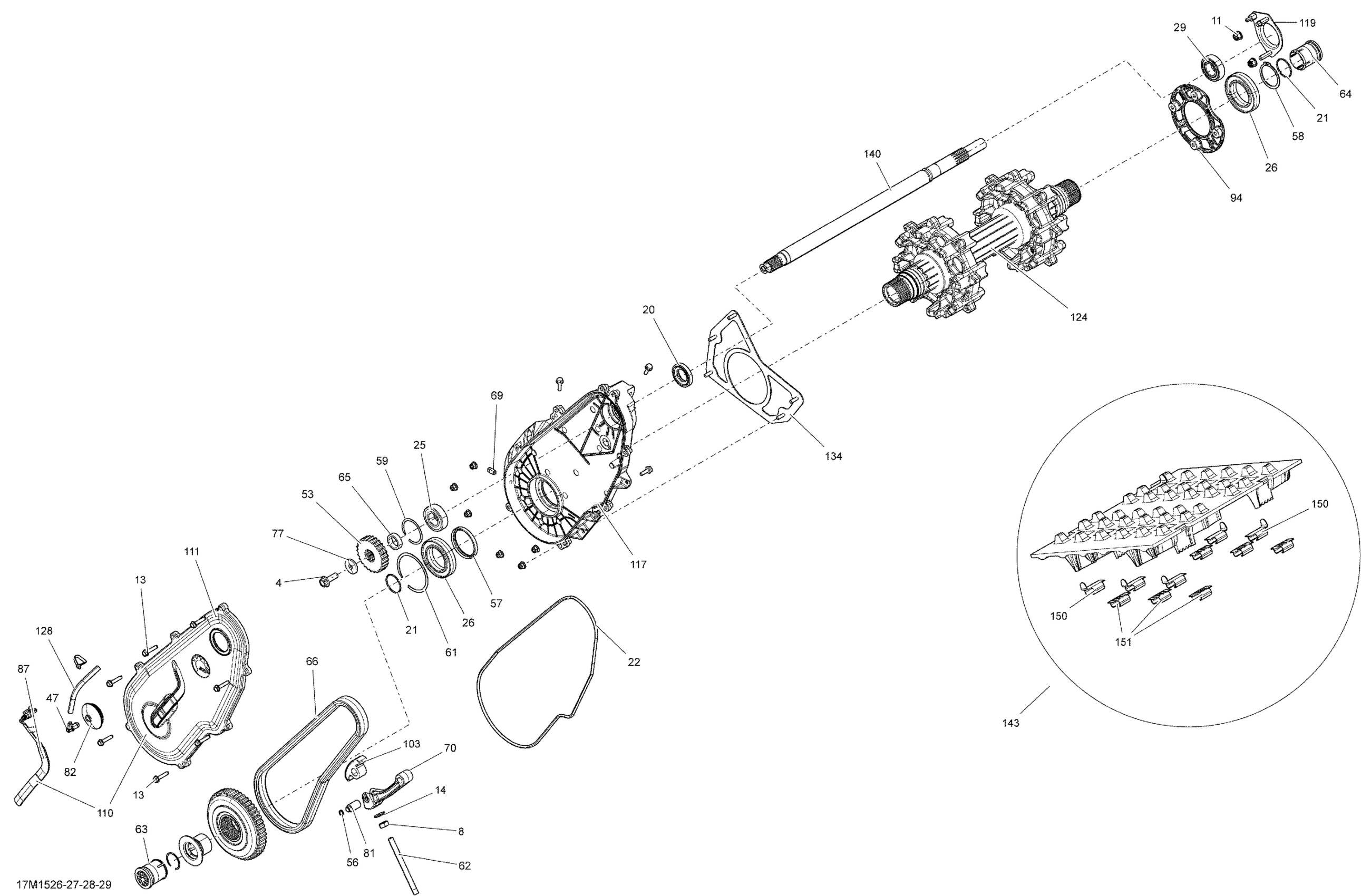

Ski-Doo Expedition Sport 550F XP154, 2015 05- Drive System _17M1526 Diagram
